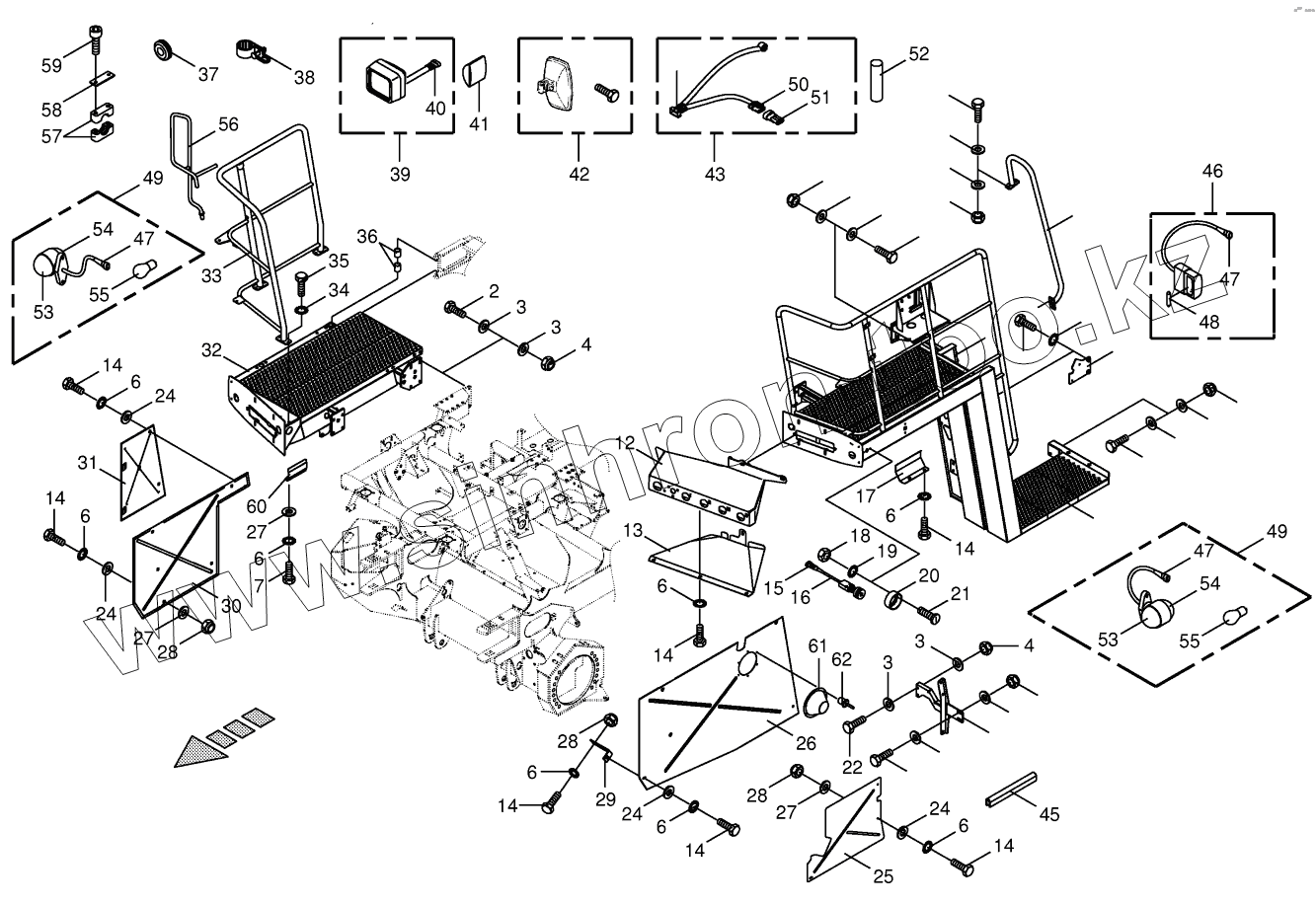

Каталог запасных частей к технике: KRONE BiG X 500. Cab access left / platform right
00 924 767 0
20 080 232 0
20 080 233 0
27 001 177 0
2
3
3
3
3
4
4
6
6
6
6
6
6
6
6
7
12
13
14
14
14
14
14
14
14
15
16
17
18
19
20
21
22
24
24
24
24
25
26
27
27
27
28
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
45
46
47
47
47
48
49
49
50
51
52
53
53
54
54
55
55
56
56
57
58
59
60
61
62
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 924 767 0 | 00 924 767 0 | Bulb | |
| 20 080 232 0 | 20 080 232 0 | Xenon work light -optional | |
| 20 080 233 0 | 20 080 233 0 | Xenon blub -optional | |
| 27 001 177 0 | 27 001 177 0 | Rear view mirror -right | |
| 1 | 20 025 629 0 | Ascendency -left | |
| 2 | 00 901 451 0 | Hex head bolt | |
| 3 | 00 910 320 0 | Washer | |
| 4 | 00 908 701 0 | Locknut | |
| 5 | 20 026 317 0 | Lamp support -left | |
| 6 | 00 909 908 1 | Detent edged washer | |
| 7 | 00 900 612 0 | Hex head bolt | |
| 8 | 00 225 449 3 | Handrail | |
| 9 | 00 900 637 0 | Hex head bolt | |
| 10 | 00 910 414 0 | Washer | |
| 11 | 00 908 758 0 | Locknut | |
| 12 | 20 024 334 0 | Plug panel | |
| 13 | 20 024 337 0 | Cover plate | |
| 14 | 00 900 614 0 | Hex head bolt | |
| 15 | 00 302 355 0 | Coupling socket -3-pole | |
| 16 | 00 303 248 2 | Instantanequs cut-out switch - incl. coupling socket | |
| 17 | 00 219 914 0 | Switch protection | |
| 18 | 00 908 208 0 | Hex nut | |
| 19 | 00 909 906 1 | Detent edged washer | |
| 20 | 00 228 942 0 | Switch protection | |
| 21 | 00 903 045 1 | Allen screw | |
| 22 | 00 900 656 0 | Hex head bolt | |
| 23 | 00 224 993 2 | Platform retainer | |
| 24 | 00 910 604 0 | Washer | |
| 25 | 00 225 740 2 | Guard plate -left | |
| 26 | 20 027 344 0 | Guard plate -left | |
| 27 | 00 910 603 0 | Washer | |
| 28 | 00 908 706 0 | Locknut | |
| 29 | 00 225 742 1 | Screwing angle | |
| 30 | 20 020 353 0 | Guard plate -right | |
| 31 | 00 228 823 1 | Cover -right | |
| 32 | 00 215 529 1 | Platform -right | |
| 33 | 20 022 297 0 | Handrail -right | |
| 34 | 00 909 909 1 | Detent edged washer | |
| 35 | 00 900 636 0 | Hex head bolt | |
| 36 | 00 935 333 0 | Bearing bush | |
| 37 | 00 924 234 0 | Guidance sleeve | |
| 38 | 00 924 070 0 | Screwless corrugatend tube | |
| 39 | 00 303 581 2 | Work light | |
| 40 | 00 302 354 0 | Coupling socket -4-pole | |
| 41 | 27 001 176 0 | Blind angle mirror -heated | |
| 42 | 27 001 178 0 | Rear view mirror -left | |
| 43 | 20 080 506 0 | Cable -for rear view mirror | |
| 44 | 00 303 084 0 | Plug -10-pole | |
| 45 | 00 925 111 0 | Edge protection -Id.-no.= 1m | |
| 46 | 00 303 213 4 | Lighting -left | |
| 47 | 00 302 356 0 | Coupling socket -2-pole | |
| 48 | 00 924 709 0 | Singel filament buld | |
| 49 | 00 303 229 1 | Side light | |
| 50 | 00 302 352 0 | Plug -3-pole | |
| 51 | 00 303 379 0 | Blind-pin casing -3-pole | |
| 52 | 27 000 325 0 | Plastic tube -Id.-no.= 1m | |
| 53 | 20 080 764 0 | Pane -white | |
| 54 | 20 080 765 0 | Pane -red | |
| 55 | 00 924 736 0 | Singel filament buld | |
| 56 | 20 022 329 0 | Mirror support -right | |
| 56 | 20 022 375 0 | Mirror support -left | |
| 57 | 00 925 147 0 | Tube clamp -2 halves | |
| 58 | 00 925 145 0 | Cover plate | |
| 59 | 00 903 050 2 | Allen screw | |
| 60 | 20 028 761 0 | Cover plate | |
| 61 | 20 027 342 0 | Cover | |
| 62 | 00 914 036 0 | Blind rivet |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
