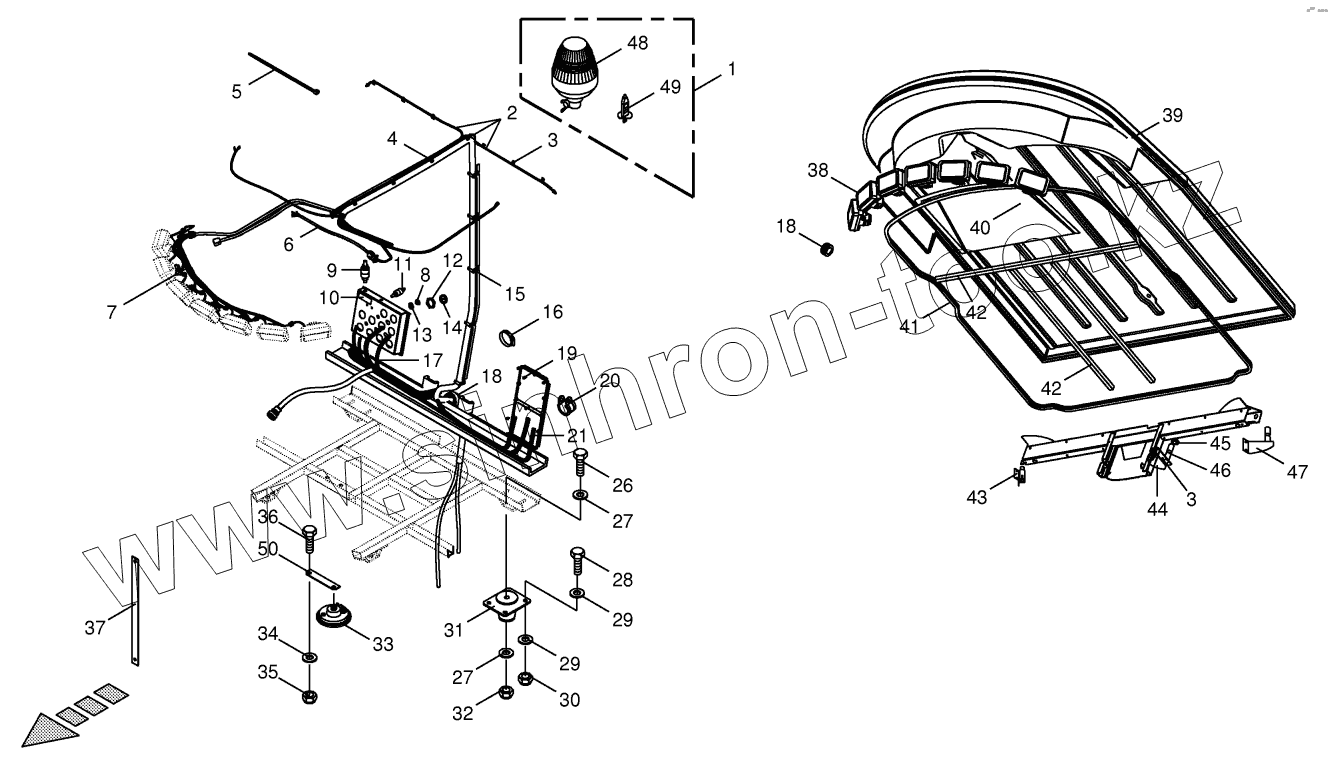

Каталог запасных частей к технике: KRONE BiG X 500. Cab - mounting parts / electric parts

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
00 900 637 0
00 924 688 0
00 924 001 1
00 922 673 1
20 084 180 0
20 084 181 0
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
26
27
27
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
42
43
44
45
46
47
48
49
50
Позиция на иллюстрации Заводской номер детали Название детали
00 900 637 0 00 900 637 0 Hex head bolt
00 924 688 0 00 924 688 0 Bulb
00 924 001 1 00 924 001 1 Tube clip
00 922 673 1 00 922 673 1 Cable band
20 084 180 0 20 084 180 0 Passing insulator
20 084 181 0 20 084 181 0 Passing insulator
1 00 924 638 0 Beacon light -yellow
2 20 080 075 1 Connecting cable -beacon light
3 00 220 707 0 Cable band support
4 00 220 618 0 Screwing-base
5 00 922 672 2 Cable band
6 00 220 581 0 Wiring harness for fan
7 00 220 580 2 Wiring harness for headlights
8 27 001 244 0 Plug
9 20 080 041 0 Passage isulator
10 00 220 610 0 Label plug case
11 20 080 040 0 Passage isulator
12 00 220 511 0 Hex nut
13 27 001 245 0 Cable socket
14 00 220 510 0 Screw plug
15 00 220 617 0 Hose clip
16 00 924 004 0 Tube clip
17 20 080 074 0 Wiring harness -Cab / circuit board
18 00 924 207 0 Cable bushing
19 00 924 202 0 Rubber pad
20 00 924 008 0 Tube clip w. rubber
21 20 080 014 2 Wiring harness -Cab
26 00 901 491 0 Hex head bolt
27 00 910 303 1 Washer
28 00 900 636 0 Hex head bolt
29 00 910 414 0 Washer
30 00 908 758 0 Locknut
31 00 220 365 0 Rubber pad
32 00 908 719 0 Locknut
33 00 302 505 0 Horn
34 00 910 413 0 Washer
35 00 908 706 0 Locknut
36 00 900 614 0 Hex head bolt
37 00 302 676 0 Bonding braid
38 00 220 523 0 Work light
39 00 220 451 0 Roof -yellow
40 00 220 592 0 Heat shield mat
41 00 220 522 0 Gasket -Id.-no.= 1m
42 00 220 449 1 Gasket
43 00 220 455 0 Support -right
44 00 220 456 0 Support -middle
45 00 220 595 0 Plug
46 00 220 657 0 Adapter
47 00 220 454 0 Support -left
48 20 080 763 0 Pane -yellow
49 20 080 766 0 Bulb
50 20 029 173 0 Filler plate
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
