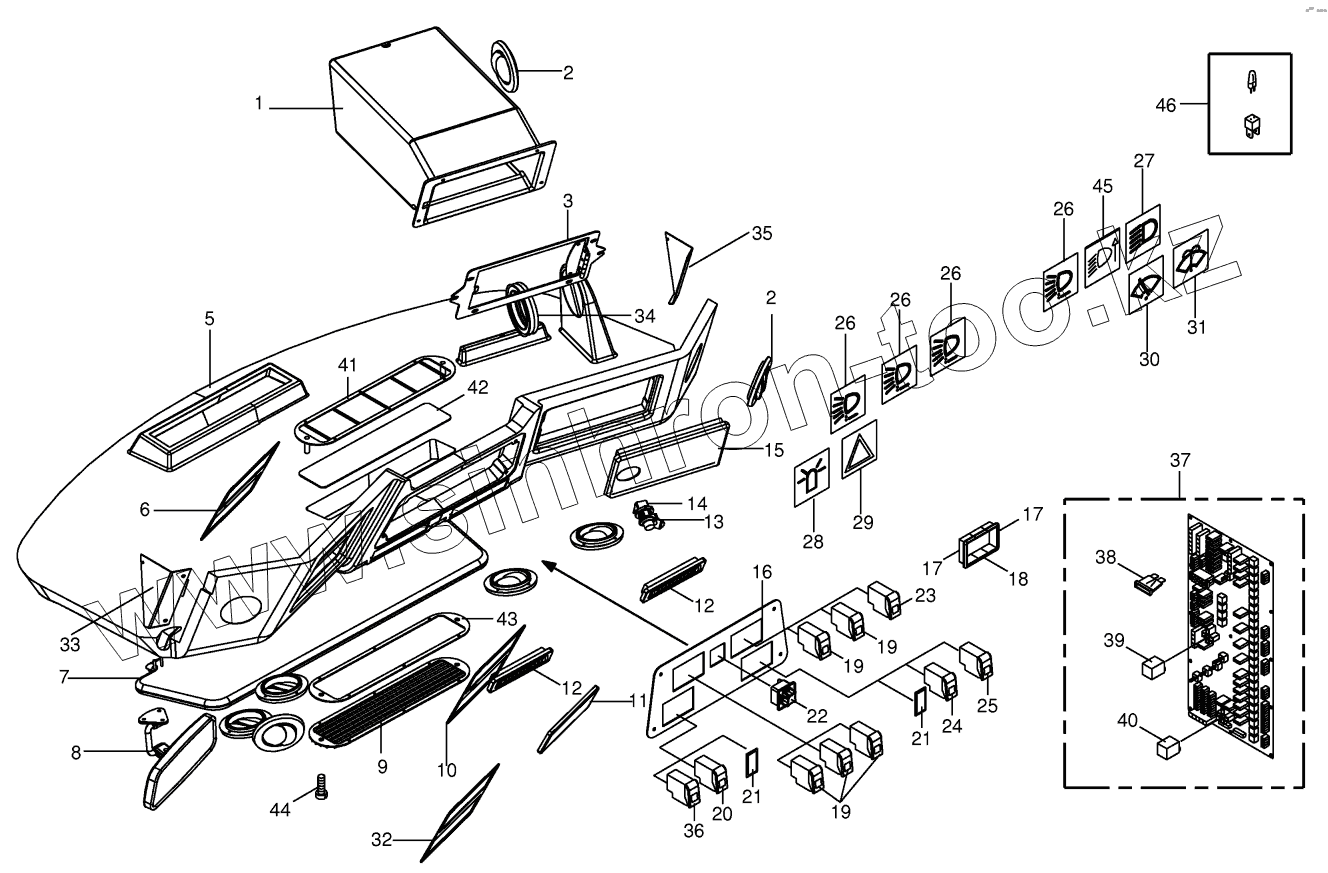

Каталог запасных частей к технике: KRONE BiG X 500. Cab - control panel (roof) / circuit board

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
3
5
6
7
8
9
10
11
12
12
13
14
15
16
17
17
18
19
19
19
20
21
21
22
23
24
25
26
26
26
26
27
28
29
30
31
32
33
34
35
36
37
38
38
38
38
38
38
38
38
39
40
41
42
43
44
45
46
Позиция на иллюстрации Заводской номер детали Название детали
1 00 220 443 0 Cooler
2 00 220 440 0 Air outlet
3 00 220 519 0 Frame for cooler
5 00 220 434 0 Roof console
6 00 220 517 0 Frame for radio
7 00 220 439 0 Sun visor
8 00 220 442 0 In-cab mirrow
9 27 000 856 0 Air grating
10 00 220 518 0 Frame for radio -outside
11 00 220 436 0 Blind cover
12 00 220 512 0 Nozzle
13 00 220 401 0 Spring lock
14 00 220 402 0 Plate spring
15 00 220 441 0 Cover for cooler
16 00 220 435 0 Switch plate
17 00 220 514 0 Mounting batten-end piece
18 00 220 513 0 Mounting batten -intermediate piece
19 00 302 524 0 Switch -ON - OFF
20 00 302 525 0 Switch -warning lights
21 00 302 653 0 Cover
22 00 302 533 0 Mirror switch
23 00 303 359 0 Combi-switch
24 00 303 360 0 Combi-switch
25 00 302 805 0 Switch
26 00 303 355 0 Switch symbol
27 00 303 356 0 Switch symbol -green
28 00 303 353 0 Switch symbol -yellow
29 00 303 354 0 Switch symbol -red
30 00 303 358 0 Switch symbol
31 00 303 357 0 Switch symbol
32 00 220 437 0 Frame for radio cut-out
33 00 220 583 0 Baffle -left
34 00 220 582 0 Cellofoam-ring
35 00 220 584 0 Baffle -right
36 00 302 526 0 Switch -ON - OFF
37 20 080 007 1 Circuit board -Cab
38 00 302 194 0 Flat fuse
38 00 302 196 0 Flat fuse
38 00 303 201 0 Flat fuse
38 00 301 856 0 Flat fuse
38 00 302 076 0 Flat fuse
38 00 302 074 0 Flat fuse
38 00 301 977 0 Flat fuse
38 00 303 198 0 Flat fuse
39 00 302 991 1 Relay-safety plate assembled
40 00 303 769 0 Time control unit
41 27 000 858 0 Insertion
42 27 000 859 0 Air filter
43 27 000 857 0 Baffle
44 27 000 860 0 Screw with straight-line curls
45 20 080 704 0 Switch symbol -optional
46 00 302 107 0 Lamp socket with bulb
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
