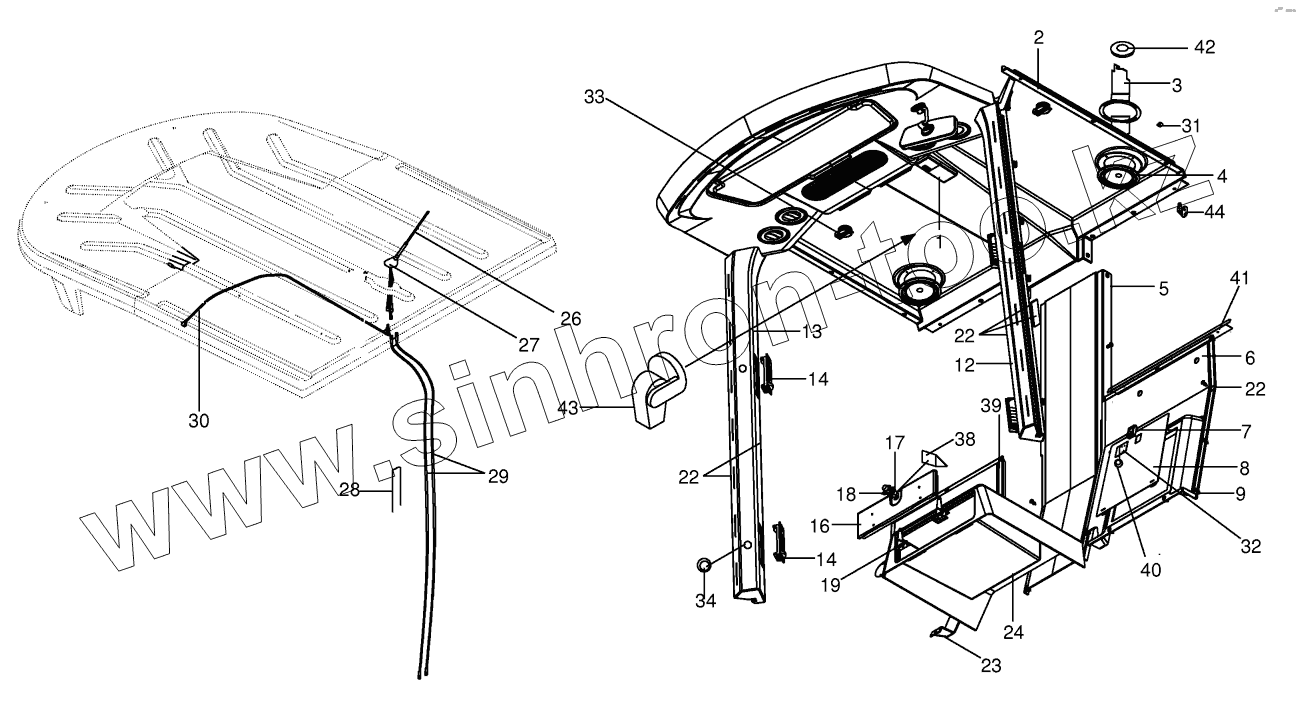

Каталог запасных частей к технике: KRONE BiG X 500. Cab - Cab lining, aerial

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
00 220 489 0
00 220 525 0
00 924 766 0
00 220 699 0
00 220 490 0
1
2
3
3
4
5
6
7
8
9
12
13
14
14
16
17
18
19
22
22
22
23
24
26
27
28
29
30
31
32
33
34
38
39
40
41
42
43
44
Позиция на иллюстрации Заводской номер детали Название детали
00 220 489 0 00 220 489 0 Illumination support
00 220 525 0 00 220 525 0 Car radio antenna
00 924 766 0 00 924 766 0 Bulb
00 220 699 0 00 220 699 0 Reinforcement
00 220 490 0 00 220 490 0 Protective grating
1 00 220 396 0 Lighting
2 00 220 395 0 Interior lining -Roof
3 00 220 493 0 Retainer for speaker -right
3 00 220 492 0 Retainer for speaker -left
4 00 220 397 0 Speaker
5 00 220 398 0 Interior lining -Rear middle
6 00 220 408 0 Rear cover -left
7 00 220 407 0 Spring lock
8 00 220 409 0 Cover -left
9 00 220 500 0 Screw-blind rivet
12 00 220 392 0 Aeration lane -left
13 00 220 394 0 Aeration lane -right
14 00 220 393 0 Nozzle
16 00 220 400 0 Cover
17 00 220 401 0 Spring lock
18 00 220 402 0 Plate spring
19 00 220 494 0 Hinge
22 00 220 509 0 Gasket
23 27 004 583 0 Rear cover -inside right
24 00 220 399 0 Seat podium
26 00 220 526 0 Multi-band antenna Starflex II
27 00 220 527 0 Thread extension
28 00 220 528 0 Metal foil
29 00 220 530 0 Aerial wire
30 00 220 529 0 Aerial wire
31 00 220 491 0 Sheet nut
32 00 220 564 0 Plate
33 00 220 640 0 Built-in socket -2-pole
34 00 220 641 0 Plug
38 00 220 643 0 Dwell-angle
39 00 220 565 0 Angle -right
40 00 220 642 0 Thermoplastic end cap
41 00 220 566 0 Rear angle -left
42 00 220 701 0 Rubber washer
43 00 924 765 0 Reading lamp
44 00 220 630 0 Coat hook
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
