  5. Air pressure - Feeder

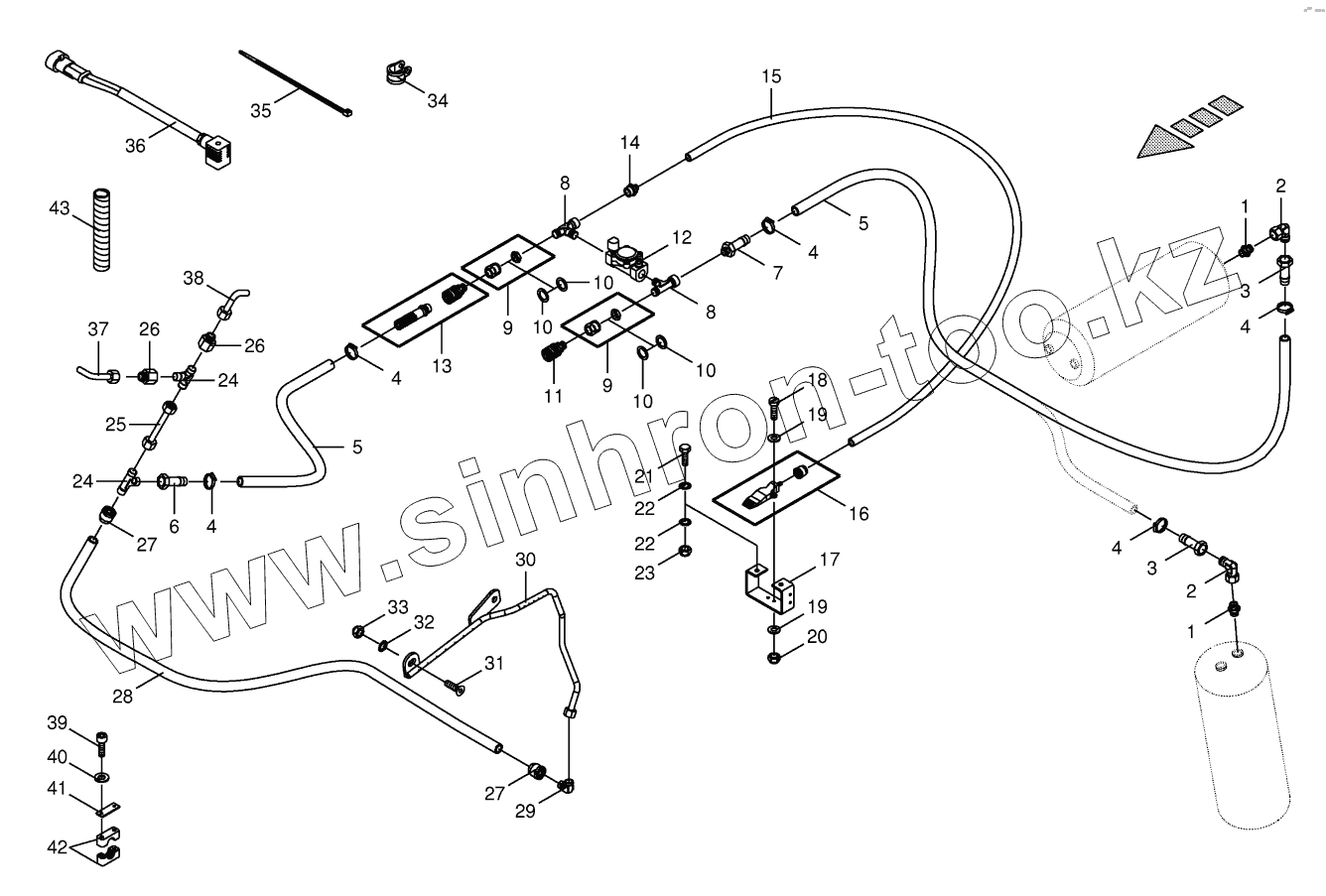

Каталог запасных частей к технике: KRONE BiG X 500. Air pressure - Feeder

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
3
3
4
4
4
4
4
5
5
6
7
8
8
9
9
10
10
10
10
11
12
13
14
15
16
17
18
19
19
20
21
22
22
23
24
24
25
26
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
Позиция на иллюстрации Заводской номер детали Название детали
1 00 920 911 1 Male connector
2 00 921 065 1 Angle lug
3 00 945 349 0 Hose connector
4 00 945 086 0 Hose clamp
5 00 945 085 0 Hose -Id.-no.= 1m
6 00 945 090 0 Hose connector
7 27 004 086 0 Hose connector
8 90 000 542 0 L-screw connection
9 90 000 543 0 Sleeve bulkhead
10 00 910 719 0 Supporting disc
11 27 004 029 0 Clutch w. external screw threa
12 00 945 438 0 2/2-Directional-control valve
13 27 004 030 0 Clutch w. external screw threa
14 27 006 261 0 Male connector
15 00 940 214 1 Plastic tubing -Id.-no.= 1m
16 27 004 060 0 Flat stream nozzle
17 20 024 739 0 Support
18 00 903 747 1 Allen screw
19 00 910 500 1 Washer
20 00 908 702 0 Locknut
21 00 900 616 0 Hex head bolt
22 00 909 908 1 Detent edged washer
23 00 908 706 0 Locknut
24 00 921 071 1 T connector
25 20 025 117 0 Hydraulic line -incl. nozzle disc cap, cutting ring
26 00 921 083 1 Reducer fitting
27 00 945 495 0 Snap-on connection
28 00 945 132 0 Plastic tube -Id.-no.= 1m
29 00 921 066 1 Elbow union
30 20 024 744 1 Cleaning line
31 90 000 567 0 Countersunkscrew
32 00 909 910 1 Detent edged washer
33 00 908 701 0 Locknut
34 00 924 014 1 Tube clip w. rubber
35 00 922 671 1 Cable band
36 20 080 815 0 Wiring harness
37 20 025 119 0 Compressed air nozzle
38 20 025 118 0 Compressed air nozzle
39 00 903 048 0 Allen screw
40 00 910 411 1 Washer
41 00 925 136 0 Cover plate
42 00 925 107 1 Tube clamp -2 halves
43 27 004 602 0 Spiral strip -Id.-no.= 1m
