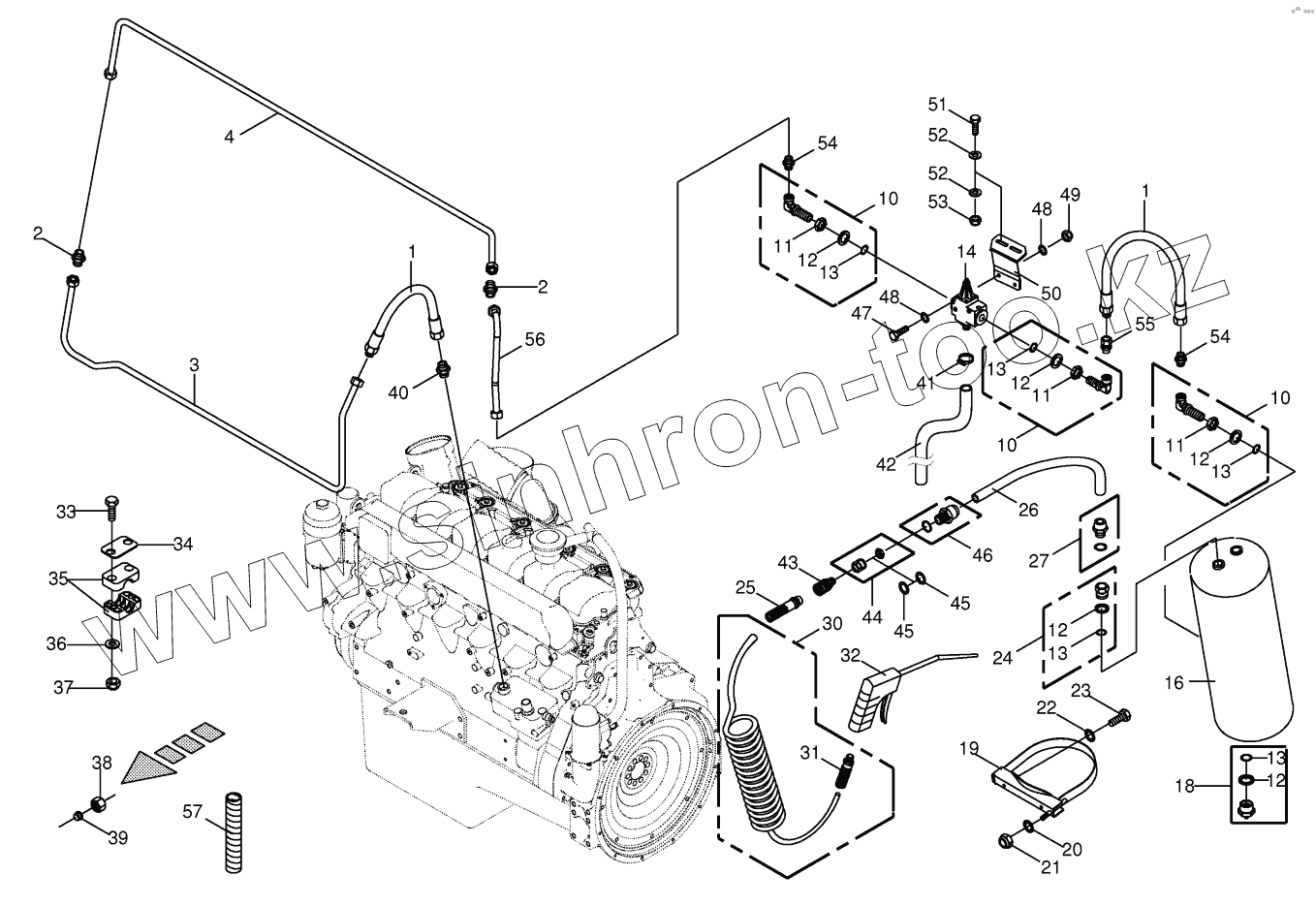

Каталог запасных частей к технике: KRONE BiG X 500. Air pressure - Blow-out gun

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
3
4
10
10
10
11
11
11
12
12
12
12
12
13
13
13
13
13
14
16
18
19
20
21
22
23
24
25
26
27
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
45
46
47
48
48
49
50
51
52
52
53
54
54
55
56
57
Позиция на иллюстрации Заводской номер детали Название детали
1 00 920 099 0 Hose
2 00 921 170 0 Connector
3 20 020 455 0 Hydraulic line -incl. nozzle disc cap, cutting ring
4 20 020 452 0 Hydraulic line -incl. nozzle disc cap, cutting ring
10 00 945 107 1 Angle-male connector
11 00 921 074 1 Hex nut -low form
12 00 945 088 0 Thrust ring
13 00 945 089 0 O-ring
14 00 945 431 1 Pressure governor
16 00 945 065 0 Air pressure container
18 00 945 067 1 Drain valve
19 00 945 066 1 Tension band
20 00 909 910 1 Detent edged washer
21 00 908 701 0 Locknut
22 00 909 909 1 Detent edged washer
23 00 900 634 0 Hex head bolt
24 00 945 546 0 Reducing piece
25 00 940 266 0 Plugnipple with bend protectio
26 27 005 369 0 Plastic tubing -Id.-no.= 1m
27 00 940 263 0 Straight screw-in connection
30 00 940 215 1 Spiral hose
31 00 940 361 0 Straight screw-in connection
32 00 940 267 0 Blow-out gun
33 90 000 176 0 Hex head bolt
34 00 925 145 0 Cover plate
35 27 005 903 0 Tube clamp -2 halves
36 00 910 411 1 Washer
37 00 908 704 1 Locknut
38 00 921 182 0 Nozzle disc cap
39 00 921 183 1 Cutting ring
40 00 919 762 0 Male connector
41 00 924 049 0 Tube clip
42 00 940 089 0 Hose -Id.-no.= 1m
43 27 004 029 0 Clutch w. external screw threa
44 90 000 543 0 Sleeve bulkhead
45 00 910 719 0 Supporting disc
46 27 004 061 0 Straight screw-in connection
47 00 901 008 1 Hex head bolt
48 00 909 908 1 Detent edged washer
49 00 908 706 0 Locknut
50 20 026 479 1 Support
51 00 900 637 0 Hex head bolt
52 00 910 353 0 Washer
53 00 908 758 0 Locknut
54 00 921 174 1 Male connector
55 00 919 364 0 Male connector
56 20 027 110 0 Hydraulic line -incl. nozzle disc cap, cutting ring
57 27 004 602 0 Spiral strip -Id.-no.= 1m
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
