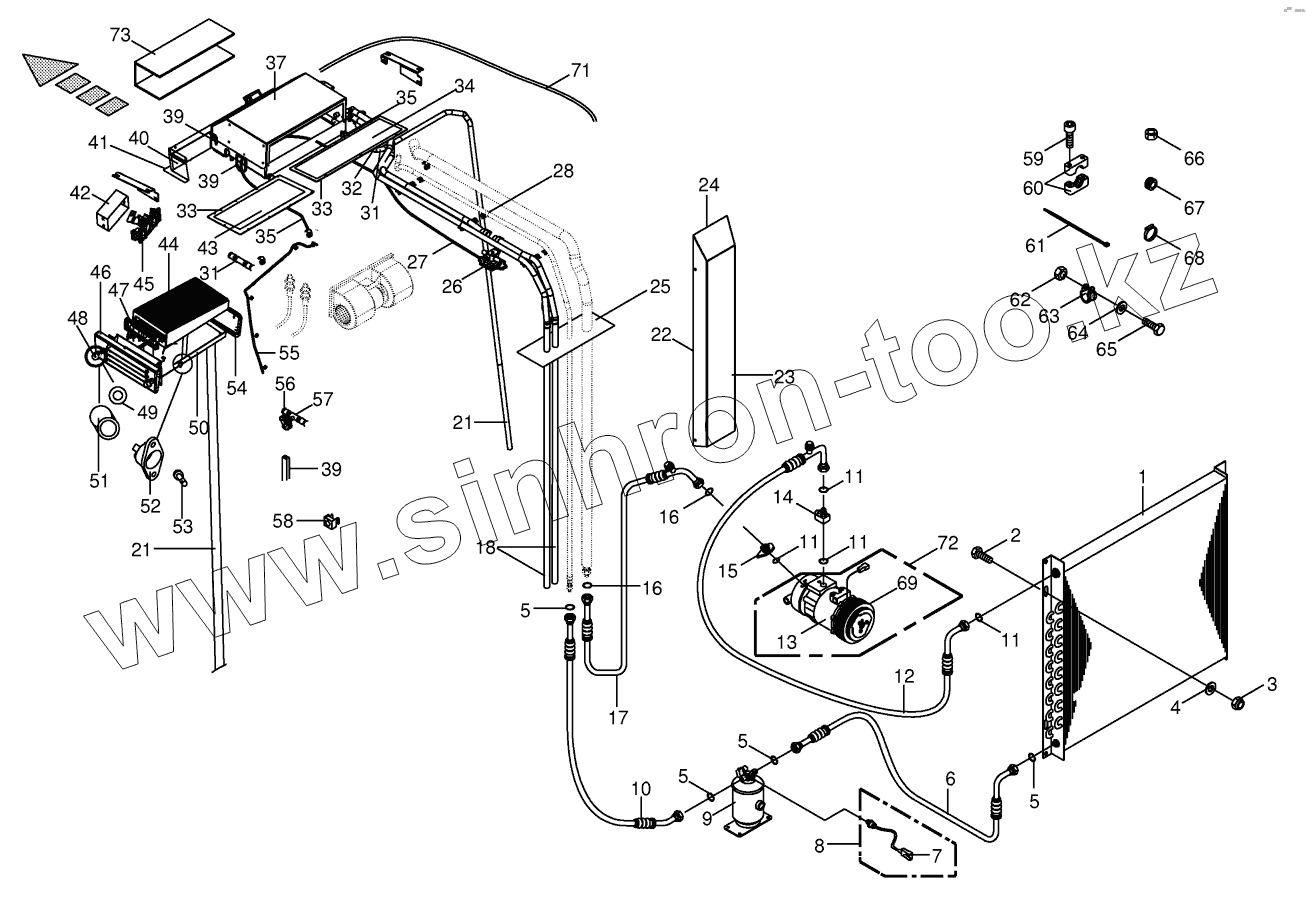

Каталог запасных частей к технике: KRONE BiG X 500. Air conditioning
00 924 009 0
00 903 014 0
1
2
3
4
5
5
5
5
6
7
8
9
10
11
11
11
11
12
13
14
15
16
16
17
18
21
21
22
23
24
25
26
27
28
31
31
32
33
33
34
35
35
37
39
39
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
60
60
61
61
61
62
63
64
65
66
67
68
69
71
72
73
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 924 009 0 | 00 924 009 0 | Tube clamp | |
| 00 903 014 0 | 00 903 014 0 | Allen screw | |
| 1 | 00 940 111 0 | Condenser for air conditioner | |
| 2 | 00 900 636 0 | Hex head bolt | |
| 3 | 00 908 758 0 | Locknut | |
| 4 | 00 910 414 0 | Washer | |
| 5 | 00 937 622 0 | O-ring | |
| 6 | 27 011 798 0 | Refrigerant hose | |
| 7 | 00 305 059 0 | Plug -2-pole | |
| 8 | 00 940 109 1 | Pressure switch | |
| 9 | 00 940 107 0 | Drier | |
| 10 | 27 011 799 0 | Refrigerant hose | |
| 11 | 00 937 623 0 | O-ring | |
| 12 | 00 940 532 0 | Tube | |
| 13 | 27 000 882 0 | Compressor (air conditioner) | |
| 14 | 27 000 619 0 | Fitting | |
| 15 | 27 000 620 0 | Fitting | |
| 16 | 00 937 624 0 | O-ring | |
| 17 | 00 940 530 0 | Tube | |
| 18 | 00 220 425 0 | Hose | |
| 21 | 00 220 430 0 | Hose | |
| 22 | 00 220 446 0 | Sealing profile | |
| 23 | 00 220 651 0 | Cover | |
| 24 | 00 220 449 1 | Gasket | |
| 25 | 00 220 576 0 | Dust protection | |
| 26 | 27 000 842 0 | Water valve | |
| 27 | 00 220 418 0 | Bowden cable | |
| 28 | 00 220 707 0 | Cable band support | |
| 31 | 00 220 653 0 | Hose coupling | |
| 32 | 00 220 654 0 | Cable socket | |
| 33 | 00 940 192 0 | Self-adhesive sealing strip -Id.-no.= 1m | |
| 34 | 00 220 426 0 | Cover | |
| 35 | 00 220 675 0 | Condensate downspout-hose | |
| 37 | 27 000 853 0 | Evaporator -cpl. | |
| 39 | 00 925 111 0 | Edge protection -Id.-no.= 1m | |
| 40 | 00 220 570 0 | Air injection lug | |
| 41 | 27 000 855 0 | Gasket frame | |
| 42 | 00 220 437 0 | Frame for radio cut-out | |
| 43 | 00 220 450 0 | Cover | |
| 44 | 00 220 424 0 | Particle filter | |
| 45 | 27 000 841 2 | MCU Klimaautomatik 2012/44 | |
| 46 | 00 220 520 0 | Cover | |
| 47 | 27 001 251 0 | Sealing profile | |
| 48 | 00 220 586 0 | Locking spigot | |
| 49 | 00 911 590 0 | Lock washer | |
| 50 | 00 220 445 0 | Insertion | |
| 51 | 00 220 587 0 | Spacer ring | |
| 52 | 00 220 588 0 | Cam-lock | |
| 53 | 00 220 589 0 | Blind rivet | |
| 54 | 00 220 590 0 | Gasket frame | |
| 55 | 00 220 677 0 | Condensate downspout-hose | |
| 56 | 00 220 433 0 | Cable socket | |
| 57 | 00 220 676 0 | Hose coupling -T-piece | |
| 58 | 00 909 512 0 | Sheet nut | |
| 59 | 00 903 481 1 | Allen screw | |
| 60 | 00 925 103 1 | Tube clamp -2 halves | |
| 60 | 00 925 162 0 | Tube clamp -2 halves | |
| 60 | 00 925 147 0 | Tube clamp -2 halves | |
| 61 | 00 922 672 2 | Cable band | |
| 61 | 00 922 673 1 | Cable band | |
| 61 | 27 001 243 0 | Cable band | |
| 62 | 00 908 207 1 | Hex nut | |
| 63 | 00 924 011 0 | Tube clip w. rubber | |
| 64 | 00 910 357 0 | Washer | |
| 65 | 00 900 292 0 | Hex head bolt | |
| 66 | 00 220 507 0 | Cable clamp | |
| 67 | 00 924 207 0 | Cable bushing | |
| 68 | 00 924 001 1 | Tube clip | |
| 69 | 27 000 883 0 | Clutch | |
| 71 | 27 001 242 0 | Condensate downspout-hose | |
| 72 | 00 940 405 0 | Compressor for air conditioner | |
| 73 | 27 003 001 0 | Filter plate |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
