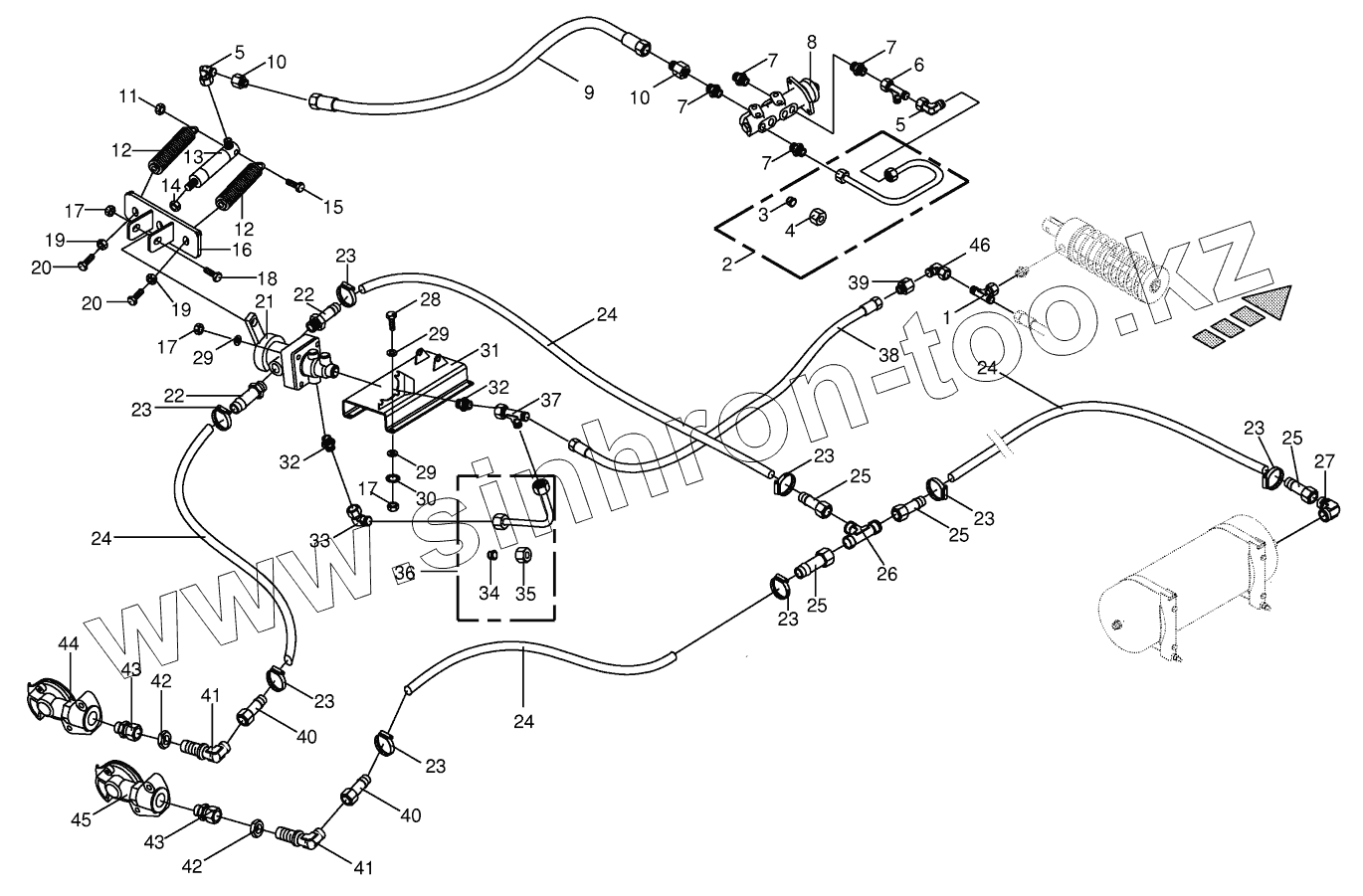

Каталог запасных частей к технике: KRONE BiG X 500. Additive connection for trailer

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
00 918 734 1
1
2
3
4
5
5
6
7
7
7
7
8
9
10
10
11
12
12
13
14
15
16
17
17
17
18
19
19
20
20
21
22
22
23
23
23
23
23
23
23
23
24
24
24
24
25
25
25
25
26
27
28
29
29
29
30
31
32
32
33
34
35
36
37
38
39
40
40
41
41
42
42
43
43
44
45
46
Позиция на иллюстрации Заводской номер детали Название детали
00 918 734 1 00 918 734 1 Sealing set
1 00 919 968 0 T connector
2 20 024 528 0 Hydraulic line -incl. nozzle disc cap, cutting ring
3 00 921 046 1 Cutting ring
4 00 921 206 0 Nozzle disc cap
5 00 921 067 1 Angle lug
6 00 921 079 1 Adjustable L connection
7 00 921 060 2 Male connector
8 00 945 560 0 Brake valve
9 27 001 278 1 Hydraulic hose
10 00 921 083 1 Reducer fitting
11 00 908 701 0 Locknut
12 00 273 375 2 Tension spring
13 00 283 231 1 Hydraulic cylinder
14 00 908 002 2 Hex nut
15 00 901 459 0 Hex head bolt
16 00 219 145 0 Fork
17 00 908 706 0 Locknut
18 00 901 042 1 Hex head bolt
19 00 908 212 0 Hex nut
20 00 900 289 1 Hex head bolt
21 00 945 561 0 Control valve
22 00 945 485 0 Hose connector
23 00 924 001 1 Tube clip
24 00 945 085 0 Hose -Id.-no.= 1m
25 00 945 349 0 Hose connector
26 00 921 073 1 T-connector
27 00 945 504 0 Angle-male connector
28 00 900 614 0 Hex head bolt
29 00 910 413 0 Washer
30 00 909 908 1 Detent edged washer
31 20 022 796 0 Bracket
32 00 919 338 0 Male connector
33 00 921 225 0 Angle lug
34 00 920 916 0 Cutting ring
35 00 920 905 0 Nozzle disc cap
36 00 219 141 0 Hydraulic line -incl. nozzle disc cap, cutting ring
37 00 921 274 0 Adjustable L connection
38 27 001 276 1 Hyd. hose
39 00 919 337 0 Reducer fitting
40 00 945 090 0 Hose connector
41 00 921 089 1 Angle bulkhead union
42 00 908 524 2 Hex nut -low form
43 00 921 204 0 Male connector
44 00 945 078 0 Clutch head -yellow
45 00 945 077 0 Clutch head -red
46 00 919 965 0 Angle lug
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
