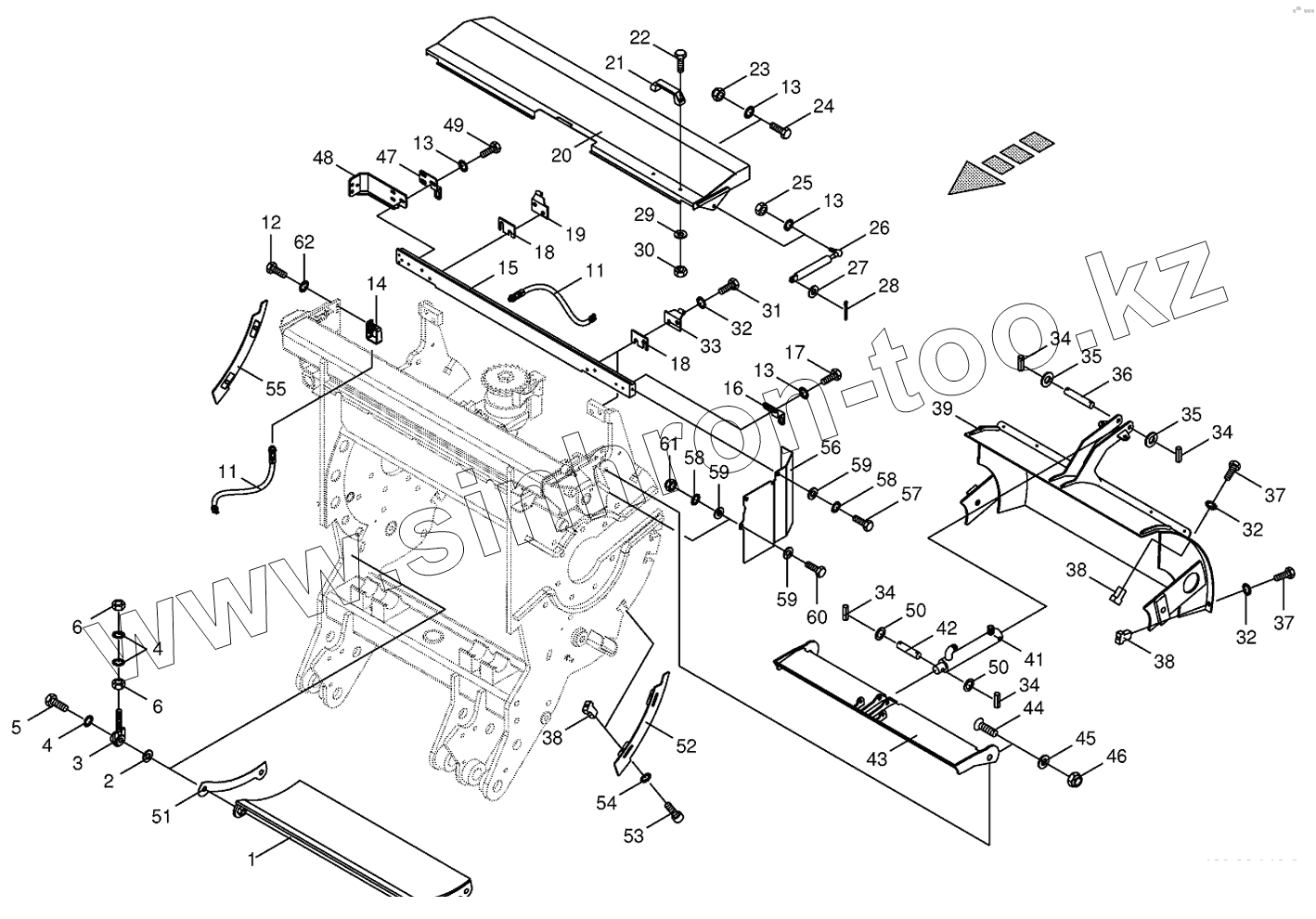

Каталог запасных частей к технике: KRONE BIG-X-500. Chopping drum support-mounting parts
1
2
3
4
4
5
6
6
11
11
12
13
13
13
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
32
33
34
34
34
34
35
35
36
37
37
38
38
38
39
41
42
43
44
45
46
47
48
49
50
50
51
52
53
54
55
56
57
58
58
59
59
59
60
61
62
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 270034060 | 270034060 | Sealing set | |
| 200289690 | 200289690 | Grinding flap | |
| 1 | 200203994 | Drum base-not spring-mounted | |
| 2 | 900003620 | Washer | |
| 3 | 002153410 | Tensioning element | |
| 4 | 009099121 | Detent edged washer | |
| 5 | 900005080 | Hex head bolt | |
| 6 | 009082200 | Hex nut | |
| 11 | 003024092 | Namur sensor Namur M12 | |
| 12 | 009006340 | Hex head bolt | |
| 13 | 009099081 | Detent edged washer | |
| 14 | 202210020 | Sensor support | |
| 15 | 200233460 | Guide rail | |
| 16 | 200233450 | Sensor support-left | |
| 17 | 009006160 | Hex head bolt | |
| 18 | 200203860 | Enclosure | |
| 19 | 002154160 | Flap support-right | |
| 20 | 002154590 | Flap | |
| 21 | 009249150 | Hand grip | |
| 22 | 009006080 | Hex head bolt | |
| 23 | 009087060 | Locknut | |
| 24 | 009010081 | Hex head bolt | |
| 25 | 009082100 | Hex nut | |
| 26 | 009386960 | Gas spring | |
| 27 | 009104130 | Washer | |
| 28 | 009120461 | Cotter pin | |
| 29 | 009104111 | Washer | |
| 30 | 009082080 | Hex nut | |
| 31 | 009006580 | Hex head bolt | |
| 32 | 009099101 | Detent edged washer | |
| 33 | 002154130 | Flap support-left | |
| 34 | 009125622 | Roll pin | |
| 35 | 009105061 | Washer | |
| 36 | 002154550 | Pin | |
| 37 | 009014540 | Hex head bolt | |
| 38 | 200245090 | Threaded piece | |
| 39 | 002153460 | Cover | |
| 41 | 270012670 | Hydraulic cylinder | |
| 42 | 002154540 | Pin | |
| 43 | 002154483 | Grinding flap | |
| 44 | 900001110 | Countersunkscrew | |
| 45 | 009103030 | Washer | |
| 46 | 009087190 | Locknut | |
| 47 | 200233440 | Sensor support-right | |
| 48 | 200237270 | Adjuster support | |
| 49 | 009006170 | Hex head bolt | |
| 50 | 009108030 | Shim ring | |
| 51 | 200245190 | Filler plate | |
| 52 | 200245141 | Sealing plate-left | |
| 53 | 009031421 | Allen screw | |
| 54 | 009099110 | Detent edged washer | |
| 55 | 200245111 | Sealing plate-right | |
| 56 | 200273490 | Guard plate | |
| 57 | 009006320 | Hex head bolt | |
| 58 | 009099091 | Detent edged washer | |
| 59 | 009104140 | Washer | |
| 60 | 009006370 | Hex head bolt | |
| 61 | 009087580 | Locknut | |
| 62 | 009099070 | Detent edged washer |
