Каталог запасных частей к технике: KRONE BIG-X-500. Cab access left/platform right
1
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
5
6
6
6
6
6
6
6
6
7
8
9
10
10
11
12
13
14
14
14
14
14
14
14
15
16
17
18
19
20
21
22
23
24
24
24
24
25
26
27
27
28
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
42
43
44
45
46
47
47
47
48
49
49
50
51
52
53
53
54
54
55
55
56
56
57
58
59

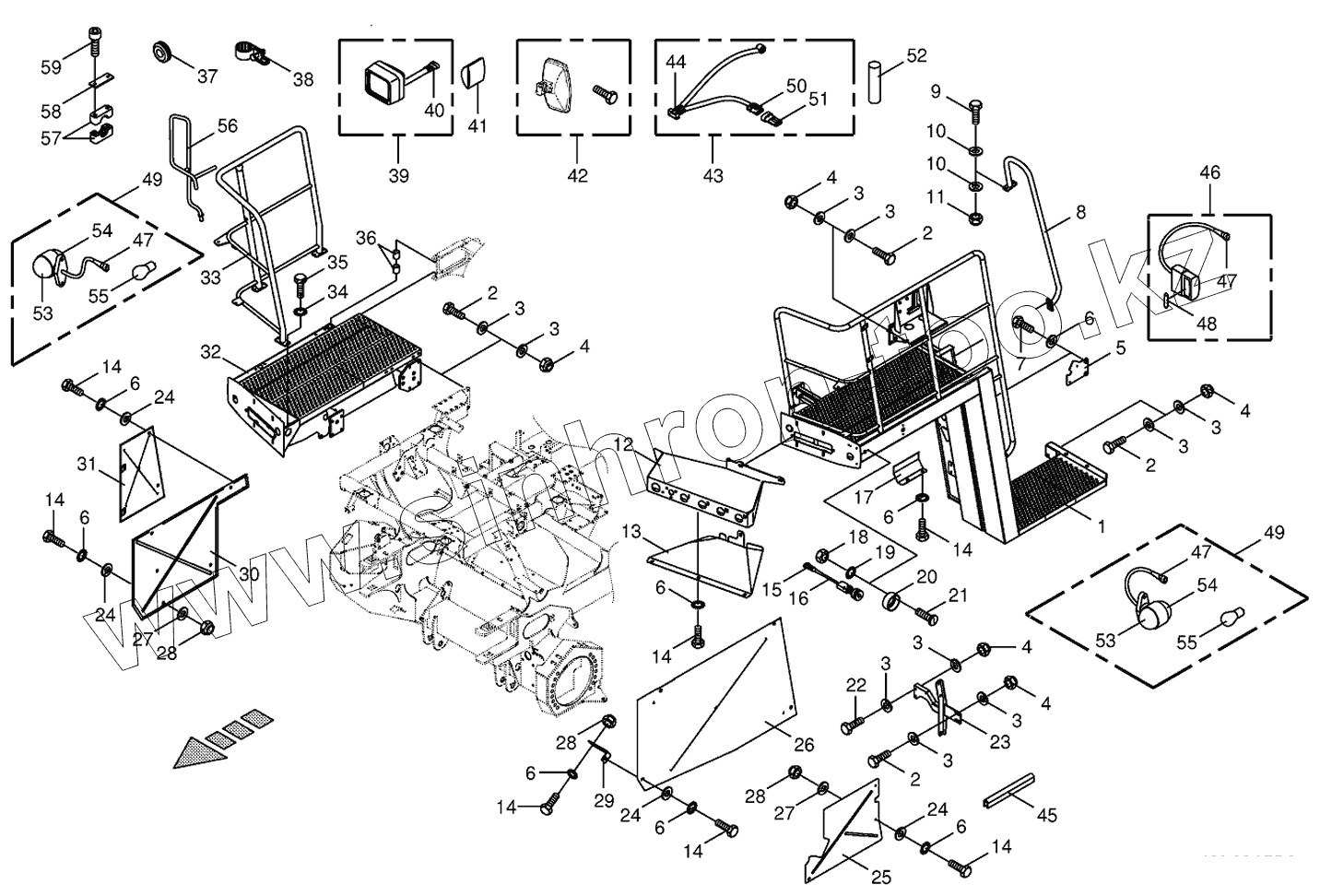

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 009247670 | 009247670 | Bulb | |
| 200802320 | 200802320 | Xenon work light-optional | |
| 200802330 | 200802330 | Xenon blub-optional | |
| 1 | 200256290 | Ascendency -left | |
| 2 | 009014510 | Hex head bolt | |
| 3 | 009103200 | Washer | |
| 4 | 009087010 | Locknut | |
| 5 | 200263170 | Lamp support -left | |
| 6 | 009099081 | Detent edged washer | |
| 7 | 009006120 | Hex head bolt | |
| 8 | 002254493 | Handrail-left | |
| 9 | 009006370 | Hex head bolt | |
| 10 | 009104140 | Washer | |
| 11 | 009087580 | Locknut | |
| 12 | 200243340 | Plug panel | |
| 13 | 200243370 | Cover plate | |
| 14 | 009006140 | Hex head bolt | |
| 15 | 003023550 | Coupling socket-3-pole | |
| 16 | 003032482 | Instantanequs cut-out switch | |
| 17 | 002199140 | Switch protection | |
| 18 | 009082080 | Hex nut | |
| 19 | 009099061 | Detent edged washer | |
| 20 | 002289420 | Switch protection | |
| 21 | 009030451 | Allen screw | |
| 22 | 009006560 | Hex head bolt | |
| 23 | 002249932 | Platform retainer | |
| 24 | 009106040 | Washer | |
| 25 | 002257402 | Guard plate-left | |
| 26 | 002257392 | Guard plate-left | |
| 27 | 009106030 | Washer | |
| 28 | 009087060 | Locknut | |
| 29 | 002257421 | Screwing angle | |
| 30 | 200203530 | Guard plate-right | |
| 31 | 002288231 | Cover-right | |
| 32 | 002155290 | Platform-right | |
| 33 | 200222970 | Handrail -right | |
| 34 | 009099091 | Detent edged washer | |
| 35 | 009006360 | Hex head bolt | |
| 36 | 009353330 | Bearing bush | |
| 37 | 009242340 | Guidance sleeve | |
| 38 | 009240700 | Screwless corrugatend tube | |
| 39 | 003035812 | Work light | |
| 40 | 003023540 | Coupling socket-4-pole | |
| 41 | 270011760 | Blind angle mirror-heated | |
| 42 | 270011780 | Rear view mirror-left | |
| 42 | 270011770 | Rear view mirror-right | |
| 43 | 200805060 | Cable-for rear view mirror | |
| 44 | 003030840 | Plug-10-pole | |
| 45 | 009251110 | Edge protection-Id.-no.= 1m | |
| 46 | 003032134 | Lighting-left | |
| 47 | 003023560 | Coupling socket-2-pole | |
| 48 | 009247090 | Singel filament buld | |
| 49 | 003032291 | Side light | |
| 50 | 003023520 | Plug-3-pole | |
| 51 | 003033790 | Blind-pin casing-3-pole | |
| 52 | 270003250 | Plastic tube-Id.-no.= 1m | |
| 53 | 200807640 | Pane-white | |
| 54 | 200807650 | Pane-red | |
| 55 | 009247360 | Singel filament buld | |
| 56 | 200223290 | Mirror support -right | |
| 56 | 200223750 | Mirror support -left | |
| 57 | 009251470 | Tube clamp-2 halves | |
| 58 | 009251450 | Cover plate | |
| 59 | 009030502 | Allen screw |
