Каталог запасных частей к технике: KRONE BIG-X-500. Hydraulics-sharpening device/transv. ground following
1
1
1
1
1
1
2
2
2
3
4
5
5
6
7
8
8
9
10
11
11
12
13
13
13
13
14
14
14
14
15
15
16
16
17
17
17
17
18
18
19
19
20
21
22
23
24
24
25
25
26
26
27
28
29
29
30
31
32
33
34
34
35
35
36
37
37
38
39
40
41
42
42
42
42
43
43
44
45
46
46
47
48
48
49
49
50
51

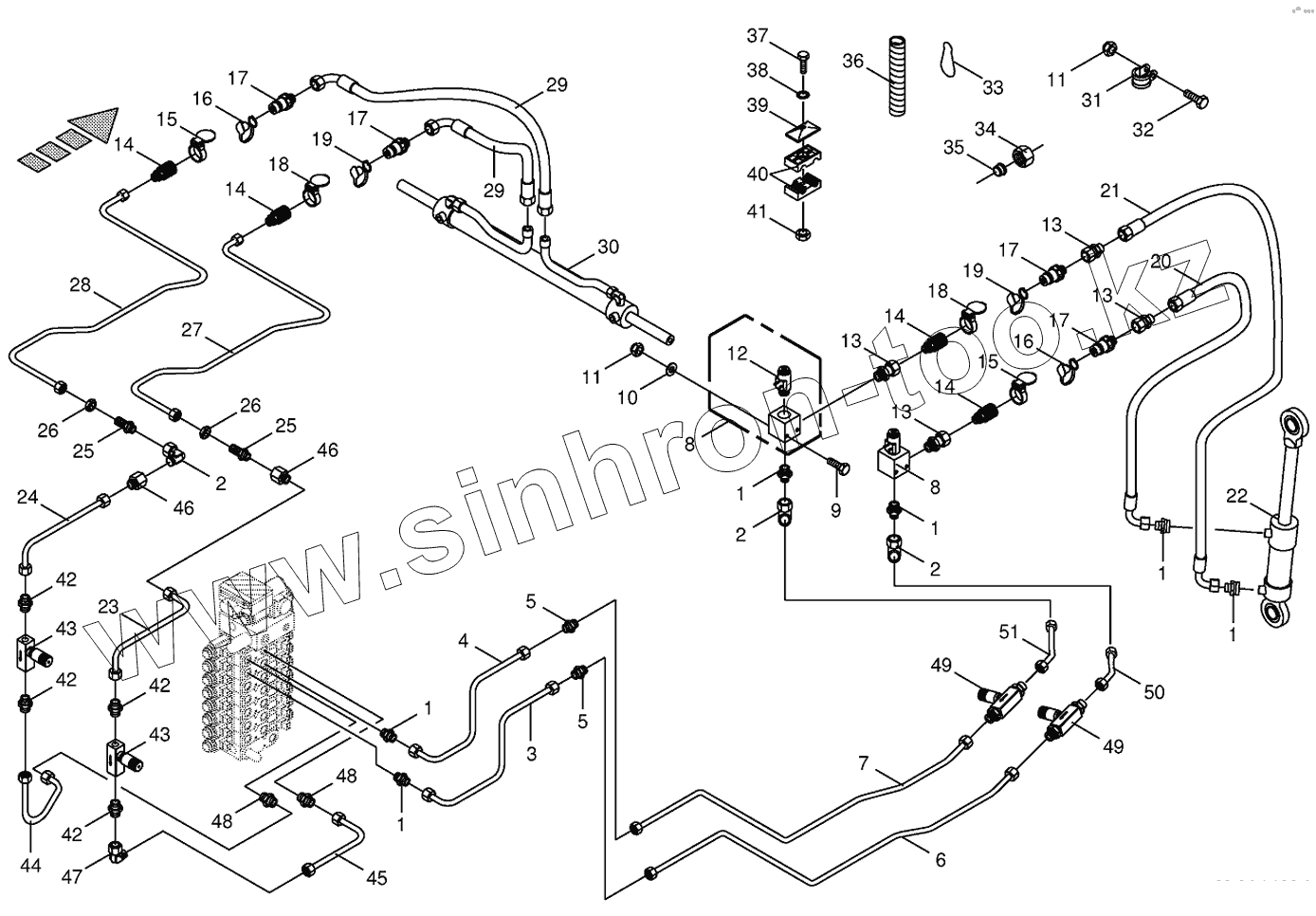

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 270006540 | 270006540 | Sealing set | |
| 009191750 | 009191750 | Solenoid coil | |
| 1 | 009209011 | Male connector | |
| 2 | 009210671 | Angle lug | |
| 3 | 200217620 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 4 | 200217610 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 5 | 009210541 | Connector | |
| 6 | 200246250 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 7 | 200246270 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 8 | 002203601 | 2/2-way seated valve | |
| 9 | 009002641 | Hex head bolt | |
| 10 | 009104130 | Washer | |
| 11 | 009087060 | Locknut | |
| 12 | 009191760 | 2/2-way seated valve | |
| 13 | 009210931 | Male connector | |
| 14 | 009193230 | Sleeve | |
| 15 | 009166020 | Cover-blue | |
| 16 | 009212631 | Dust cap-blue | |
| 17 | 009193220 | Connector plug | |
| 18 | 009199940 | Cover-red | |
| 19 | 009211711 | Dust cap-red | |
| 20 | 009200930 | High pressure hose line | |
| 21 | 009210041 | High pressure hose line | |
| 22 | 002171210 | Hydraulic cylinder | |
| 23 | 009187890 | Sealing set | |
| 24 | 200217710 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 24 | 200217690 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 25 | 009210871 | Straight 2-way connector | |
| 26 | 009085242 | Hex nut-low form | |
| 27 | 200207200 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 28 | 200207210 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 29 | 009198640 | High pressure hose line | |
| 30 | 009185400 | Hydraulic cylinder | |
| 31 | 009240550 | Tube clip w. rubber | |
| 32 | 009006170 | Hex head bolt | |
| 33 | 009178021 | Spring hook | |
| 34 | 009212060 | Nozzle disc cap | |
| 34 | 009199620 | Nozzle disc cap | |
| 35 | 009210461 | Cutting ring | |
| 35 | 009199610 | Cutting ring | |
| 36 | 009404780 | Spiral strip-Id.-no.= 1m | |
| 37 | 009010421 | Hex head bolt | |
| 37 | 009010481 | Hex head bolt | |
| 38 | 009099081 | Detent edged washer | |
| 39 | 009251340 | Cover plate | |
| 40 | 009251050 | Tube clamp-2 halves | |
| 41 | 009082100 | Hex nut | |
| 42 | 009199640 | Male connector | |
| 43 | 009193040 | One-way restrictor-adjustable | |
| 44 | 200217560 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 45 | 200217720 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 46 | 009199700 | Reducer fitting | |
| 47 | 009199650 | Angle lug | |
| 48 | 900000480 | Male connector | |
| 49 | 002296100 | One-way restrictor | |
| 50 | 200246260 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 51 | 200246240 | Hydraulic line-incl. nozzle disc cap, cutting ring |
