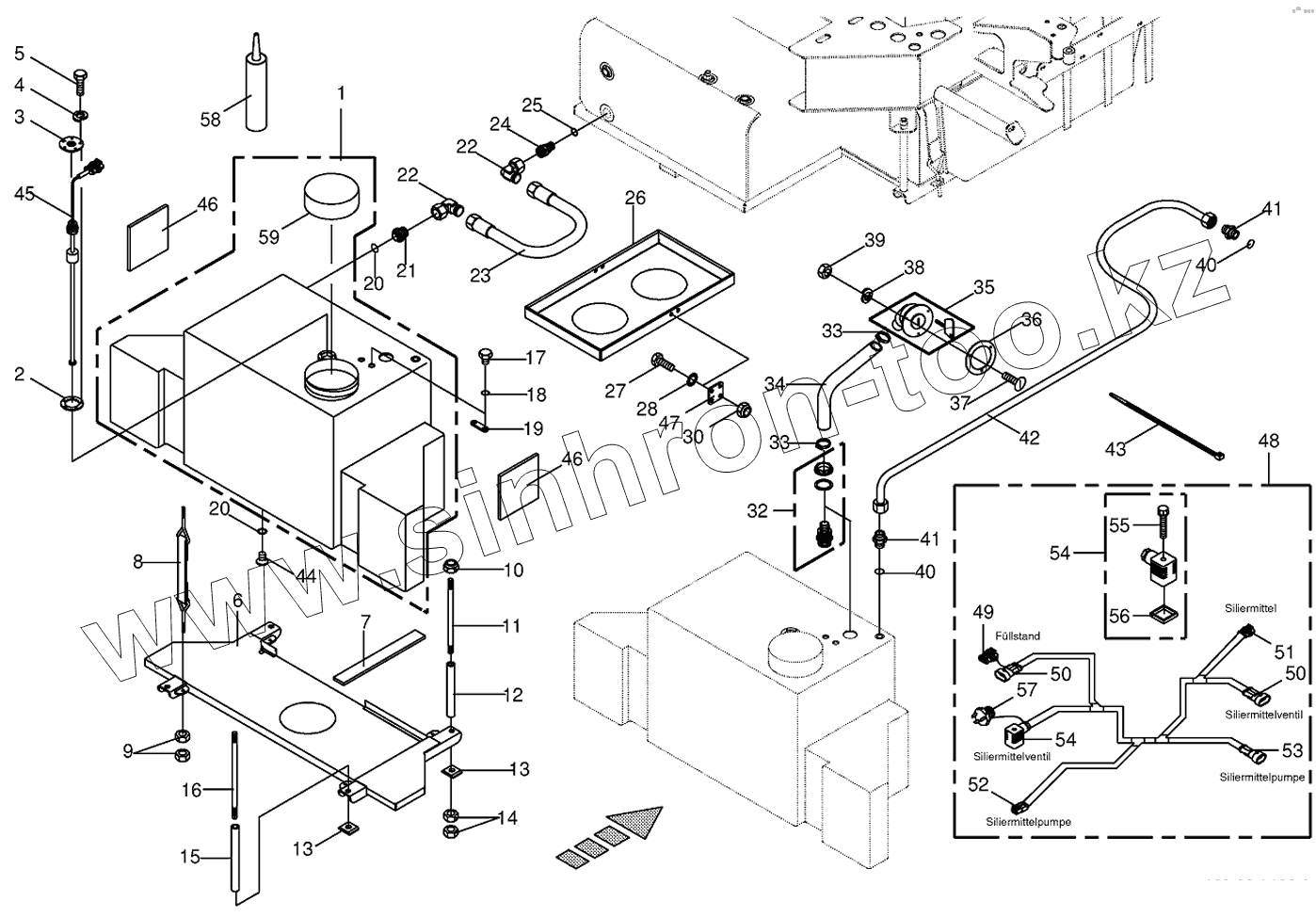

Каталог запасных частей к технике: KRONE BIG-X-500. Auxiliary tank

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
20
21
22
22
23
24
25
26
27
28
30
32
33
33
34
35
36
37
38
39
40
40
41
41
42
43
44
45
46
46
47
48
49
50
50
51
52
53
54
54
55
56
57
58
59
Позиция на иллюстрации Заводской номер детали Название детали
1 200201930 Auxiliary tank
2 009400460 Gasket
3 002132370 Sensor support
4 009100310 Spring washer
5 009002920 Hex head bolt
6 200201850 Subsurface
7 200201860 Rubber coat
8 200202010 Fabric tape
9 009082100 Hex nut
10 009087161 Locknut
11 200201890 Threaded rod
12 200201871 Spacer tube
13 002253440 Pressure plate
14 009082200 Hex nut
15 200201881 Spacer tube
16 200201900 Threaded rod
17 002158050 Drain bolt
18 009376370 O-ring
19 002147330 Threaded piece
20 009538840 O-ring
21 200202230 Connection
22 009208220 Angle lug
23 009201000 Disel hose
24 200202240 Connection
25 009376340 O-ring
26 200201910 Hose guard
27 009006360 Hex head bolt
28 009099091 Detent edged washer
30 009087580 Locknut
32 270013270 Filler neck
33 009240020 Tube clip
34 200216840 Hose
35 270000040 Filler neck
36 200201920 Tank lug support
37 009037450 Allen screw
38 009100310 Spring washer
39 009082071 Hex nut
40 009377270 Gasket ring
41 009209011 Male connector
42 002141320 Ventilation line
43 009226711 Cable band
44 002147320 Screw plug
45 200805590 Level sensor
46 002150500 Rubber plate
47 200215430 Spacer plate
48 200803620 Wiring harness
49 003029670 Blind bushing plug-3-pole
50 003023550 Coupling socket-3-pole
51 003023520 Plug-3-pole
52 003033160 Plug-2-pole
53 003023560 Coupling socket-2-pole
54 003019870 Valve plug with LED
55 003021820 Screw with straight-line curls
56 003011860 Gasket
57 003020050 Connector plug-2-pole
58 003037740 Gluten
59 270022060 Tank cap
