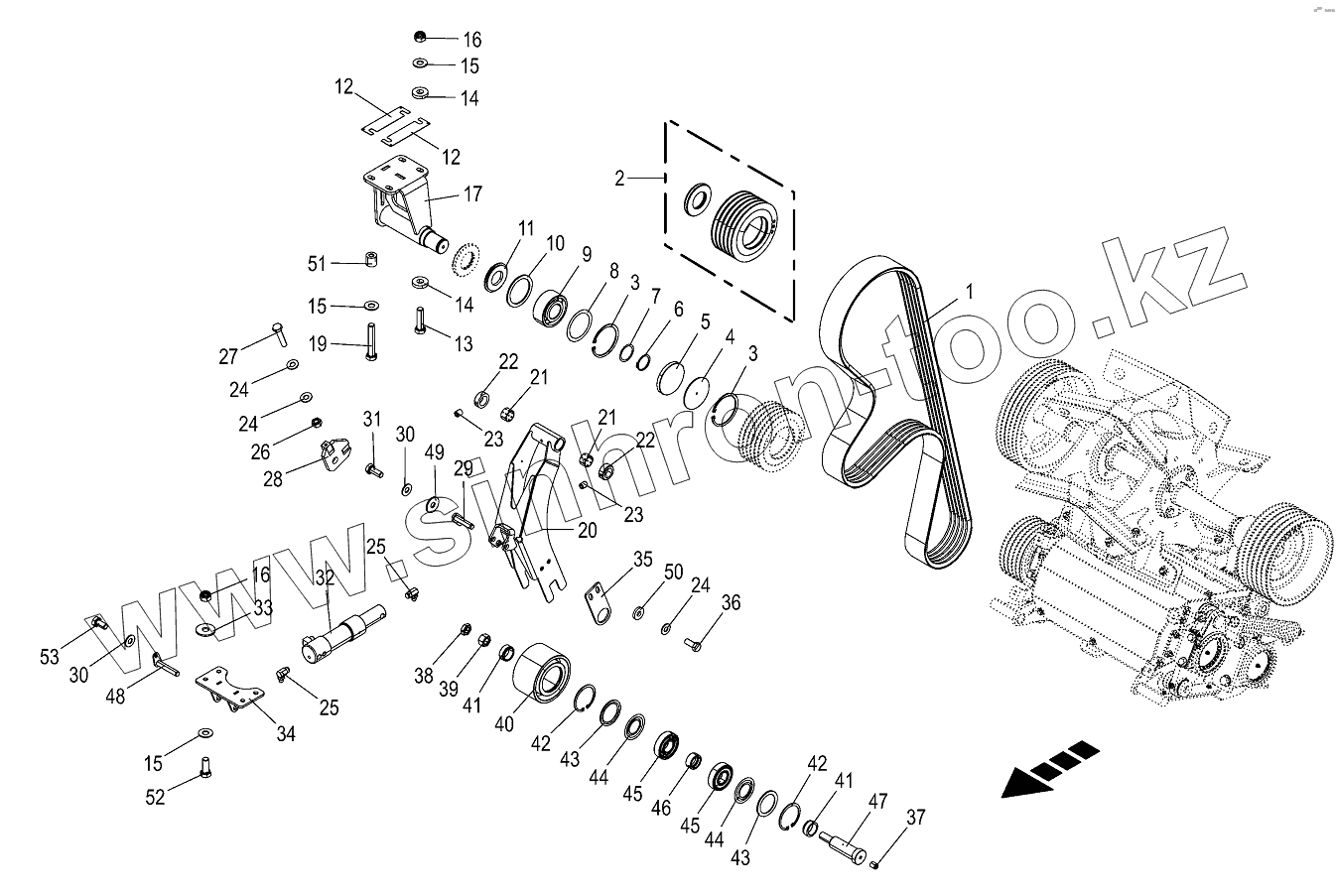

Каталог запасных частей к технике: KRONE BIG-X-480. Belt drive corn conditioner

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
4
5
6
7
8
9
10
11
12
12
12
13
14
14
15
15
15
16
16
17
19
20
21
21
22
22
23
23
24
24
24
25
25
26
27
28
29
30
30
31
32
33
34
35
36
37
38
39
40
41
41
42
42
43
43
44
44
45
45
46
47
48
49
50
51
52
53
Позиция на иллюстрации Заводской номер детали Название детали
270120370 270120370 Gasket set
270120430 270120430 Guide ring
900023730 900023730 Snap ring
1 270087821 Power belt
2 200290911 V-belt pulley with threaded piece
3 009116860 Circlip
4 200267140 Support plate
5 009252081 Sealing cap
6 009115491 Circlip
7 009108940 Shim ring
7 009108930 Shim ring
8 009109910 Shim ring
8 009109920 Shim ring
9 900013700 Bearing
10 009107460 Supporting disc
11 200267150 Cover disc
12 202246891 Distance sheet deflection roll
12 204201980 Distance sheet deflection roll
13 009002750 Hex head bolt
14 009103200 Washer
15 009099101 Detent edged washer
16 009087010 Locknut
17 202208904 Bearing block welded
17 202264551 Bearing block-disc corn conditioner
19 900004400 Hex head bolt
20 202208852 Rocker
21 009353290 Bearing bush
22 009113191 Collar
23 009059221 Threaded pin
24 009099091 Detent edged washer
25 009191070 Grease niple
26 009082120 Hex nut
27 009002841 Hex head bolt
28 002179330 Support
29 002179541 Arbor
30 009099081 Detent edged washer
31 009006140 Hex head bolt
32 270101530 Hyd. cylinder
33 009106090 Washer
34 200293082 Cylinder retainer
35 202254730 Fixating lacing
36 009006360 Hex head bolt
37 900000640 Threaded pin
38 009085251 Hex nut-low form
39 009082250 Hex nut
40 202208872 Jockey pulley
41 200291791 Bushing outside
42 009116730 Circlip
43 009370140 Nilos-Spacer ring
44 009370150 Nilos-ring
45 009304670 Grooved ball bearing
46 200291781 Bushing inside
47 202208862 Holder mandril tension roller
48 202208881 Bolt
49 009106030 Washer
50 009103611 Washer
51 204205860 Sleeve
52 009006560 Hex head bolt
53 009006120 Hex head bolt
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
