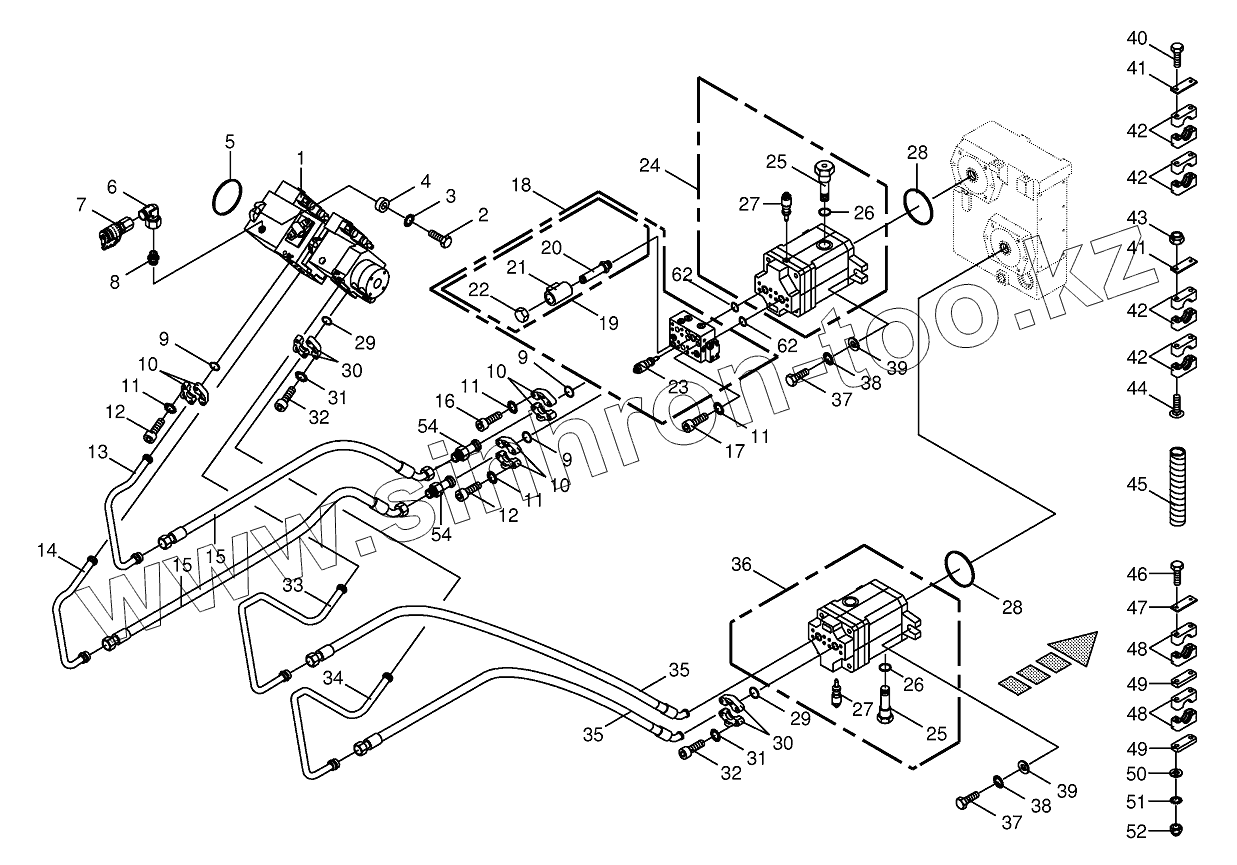

Каталог запасных частей к технике: KRONE BIG-X-1100. Hydraulics-front attachment/feed rollers

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
9
9
10
10
10
11
11
11
11
12
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
34
35
35
36
37
37
38
38
39
39
40
40
41
41
42
42
42
42
42
43
44
45
46
47
48
48
48
49
49
50
51
52
54
54
62
62
Позиция на иллюстрации Заводской номер детали Название детали
270016920 270016920 Sealing set
270016930 270016930 Sealing set
270027310 270027310 Sealing set
270013060 270013060 Sealing set
1 009191890 Variable displacement pump
2 009006780 Hex head bolt
3 009099121 Detent edged washer
4 200239750 Bushing
5 009376100 O-ring
6 009208250 Lug
7 009199370 Connector f.mini-test equipm.
8 009193680 Male connector
9 270039240 Flange gasket
10 009208611 SAE-flange section-2 halves
11 009099110 Detent edged washer
12 009031431 Allen screw
13 200253280 Solder piece
14 200253290 Solder piece
15 270040000 High pressure hose line
16 900002140 Allen screw
17 009031492 Allen screw
18 009191720 Fast-stop valve
19 270006881 2/2-Directional-control valve-cpl.
20 270006851 2/2-Directional-control valve
21 270006871 Solenoid coil
22 270018420 Nut-with emergency hand operation
23 270006860 Pressure valve
24 009191870 Fixed displacement motor
25 270016900 Speed sensor
26 900002920 O-ring
27 270016910 Pressure control valve
28 009375880 O-ring
29 270039230 Flange gasket
30 009208601 SAE-flange section-2 halves
31 009099070 Detent edged washer
32 009031091 Allen screw
33 200253310 Solder piece
34 200253300 Solder piece
35 270011861 High pressure hose line
36 009191860 Fixed displacement motor
37 009006770 Hex head bolt
38 009099121 Detent edged washer
39 009103031 Washer
40 009014380 Hex head bolt
40 009014470 Hex head bolt
41 009251251 Cover plate
42 009251531 Tube clamp-2 halves
42 270039040 Tube clamp-2 halves
43 009087580 Locknut
44 900000250 Coach bolt
45 003012190 Spiral strip-Id.-no.= 1m
46 009014460 Hex head bolt
47 009251300 Cover plate
48 009251522 Tube clamp-2 halves
48 270039310 Tube clamp-2 halves
49 200248750 Intermediate piece
50 009104140 Washer
51 009099091 Detent edged washer
52 009091000 Nut
54 009199020 SAE extern.screw thread flange
62 270039240 Flange gasket
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
