  5. Housing line/oil cooler 783000-783100

Каталог запасных частей к технике: KRONE BIG-X-1100. Housing line/oil cooler 783000-783100

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
4
5
6
7
8
8
9
10
11
12
13
13
13
13
14
15
15
16
16
16
17
17
17
18
19
19
20
21
21
22
23
24
25
26
26
27
27
28
28
29
29
30
30
31
31
31
31
32
32
32
32
33
34
35
36
37
38
39
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54

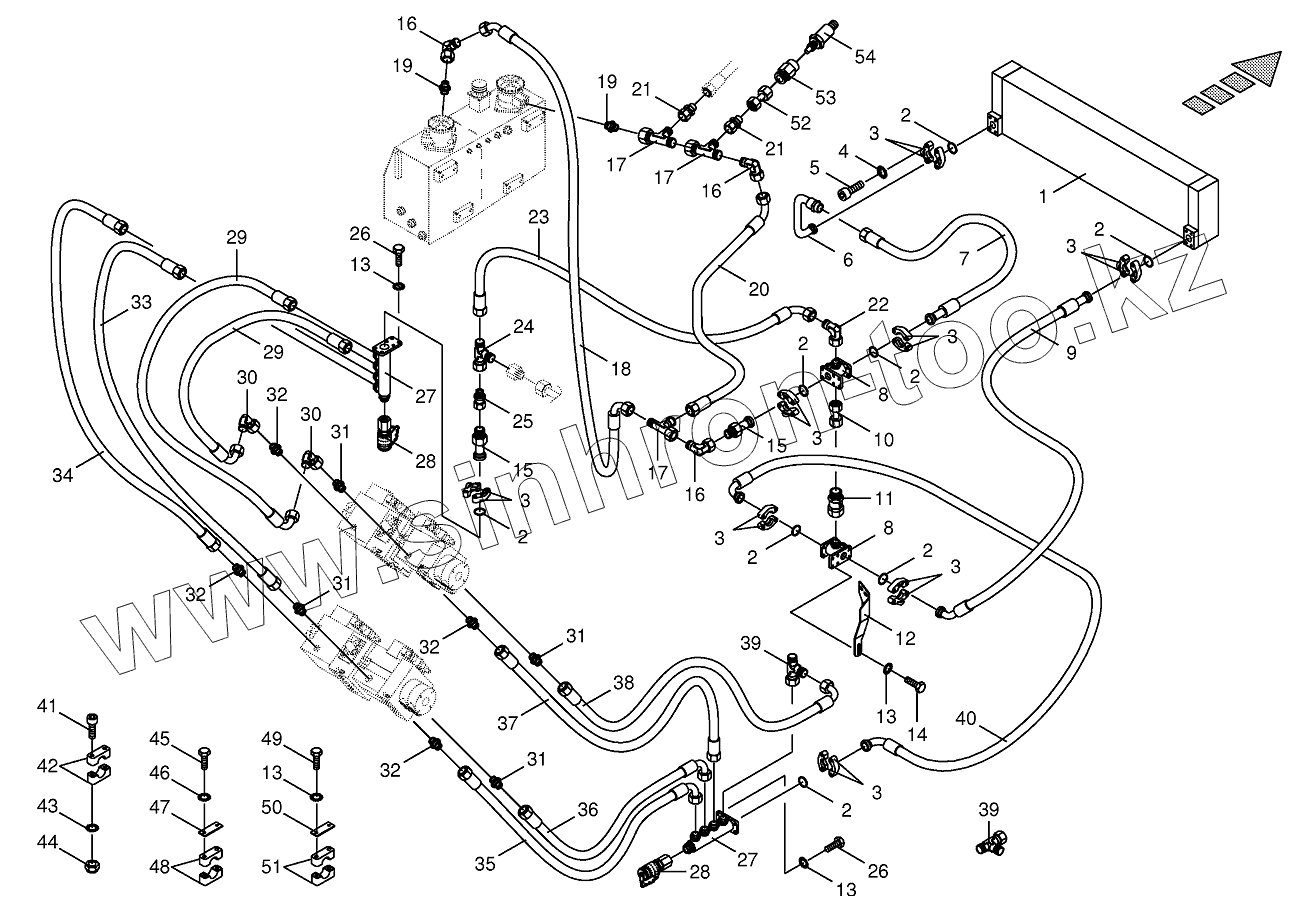

Позиция на иллюстрации Заводской номер детали Название детали
1 270035950 Oil cooler
2 009376470 O-ring
3 009193661 SAE-flange section-2 halves
4 009199110 T connector
5 009031391 Allen screw
6 200253570 Solder piece
7 270045600 High pressure hose line
8 002147600 Collector-radiator
9 270045450 High pressure hose line
10 270002100 Double nipple
11 002297111 Non-return valve
12 200253220 Support
13 009099110 Detent edged washer
14 009006550 Hex head bolt
15 270002940 SAE-flange adapter
16 009208230 Lug
17 009208280 Adjustable L connection
18 270045400 High pressure hose line
19 009208201 Male connector
20 009199311 High pressure hose line
21 900002500 Reducer fitting
22 009208220 Angle lug
23 009201240 High pressure hose line
24 009208270 Adjustable L connection
25 009196600 Reducer fitting
26 009006530 Hex head bolt
27 002147591 Collector-pump
28 270010190 Connector f.mini-test equipm.
29 270010000 High pressure hose line
30 009197110 Lug
31 900000840 Male connector
32 900002520 Male connector
33 270045380 High pressure hose line
34 270011880 High pressure hose line
35 270009970 High pressure hose line
36 270010890 High pressure hose line
37 270011880 High pressure hose line
38 270010010 High pressure hose line
39 900000820 Adjustable L connection
40 270045440 High pressure hose line
41 009030581 Allen screw
42 270045590 Tube clamp-2 halves
43 009099061 Detent edged washer
44 009087041 Locknut
45 009002871 Hex head bolt
46 009099091 Detent edged washer
47 009251251 Cover plate
48 270045300 Tube clamp-2 halves
49 009003090 Hex head bolt
50 009251211 Cover plate
51 270045310 Tube clamp-2 halves
52 002307430 Double nipple
53 009199550 Unscrewing connection
54 200810400 Temperature sensor
