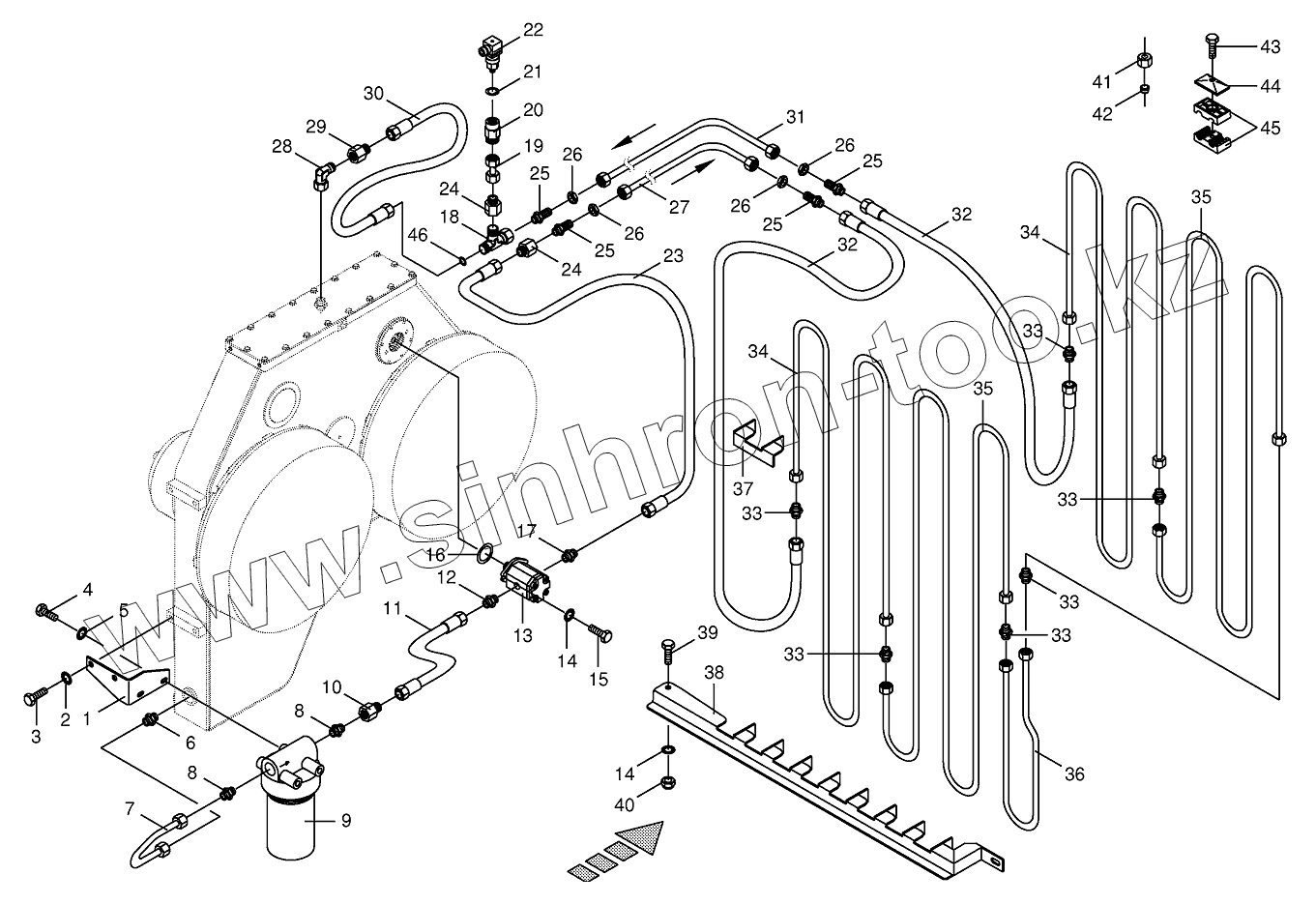

Каталог запасных частей к технике: KRONE BIG-X-1000. Gear oil cooler

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
24
25
25
25
25
26
26
26
26
27
28
29
30
31
32
32
33
33
33
33
33
33
34
34
35
35
36
37
38
39
39
40
41
41
42
42
43
44
45
46
Позиция на иллюстрации Заводской номер детали Название детали
900004000 900004000 O-ring
009192450 009192450 Filter element
1 200226280 Support
2 009099121 Detent edged washer
3 009006740 Hex head bolt
4 009006530 Hex head bolt
5 009099101 Detent edged washer
6 009199100 Male connector
7 200226270 Hydraulic line-incl. nozzle disc cap, cutting ring
8 009199570 Male connector
9 009192440 Suction filter
10 009196590 Reducer fitting
11 270012020 High pressure hose line
12 009199201 Male connector
13 009191590 Pump
14 009099091 Detent edged washer
15 009006340 Hex head bolt
16 009376430 O-ring
17 009199331 Male connector
18 009210750 Adjustable L connection
19 002307430 Double nipple
20 009199550 Unscrewing connection
21 009377171 Gasket ring
22 200802000 Pressure switch
23 009210161 High pressure hose line
24 009211601 Reducer fitting
25 009212500 Straight 2-way connector
26 009210741 Hex nut-low form
27 200226260 Hydraulic line-incl. nozzle disc cap, cutting ring
28 009208220 Angle lug
29 009190100 Reducer fitting
30 270012030 High pressure hose line
31 200226250 Hydraulic line-incl. nozzle disc cap, cutting ring
32 009200940 High pressure hose line
33 009210531 Connector
34 200218880 Hydraulic line-incl. nozzle disc cap, cutting ring
35 200218890 Hydraulic line-incl. nozzle disc cap, cutting ring
36 200218900 Hydraulic line-incl. nozzle disc cap, cutting ring
37 200218920 Pole connector
38 200208690 Retainer strip
39 009006370 Hex head bolt
39 009014350 Hex head bolt
40 009087580 Locknut
41 009210430 Nozzle disc cap
41 009208050 Nozzle disc cap
42 009210471 Cutting ring
42 009197490 Cutting ring
43 009010421 Hex head bolt
44 009251340 Cover plate
45 009251080 Tube clamp-2 halves
46 003449873 Throttling disc
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
