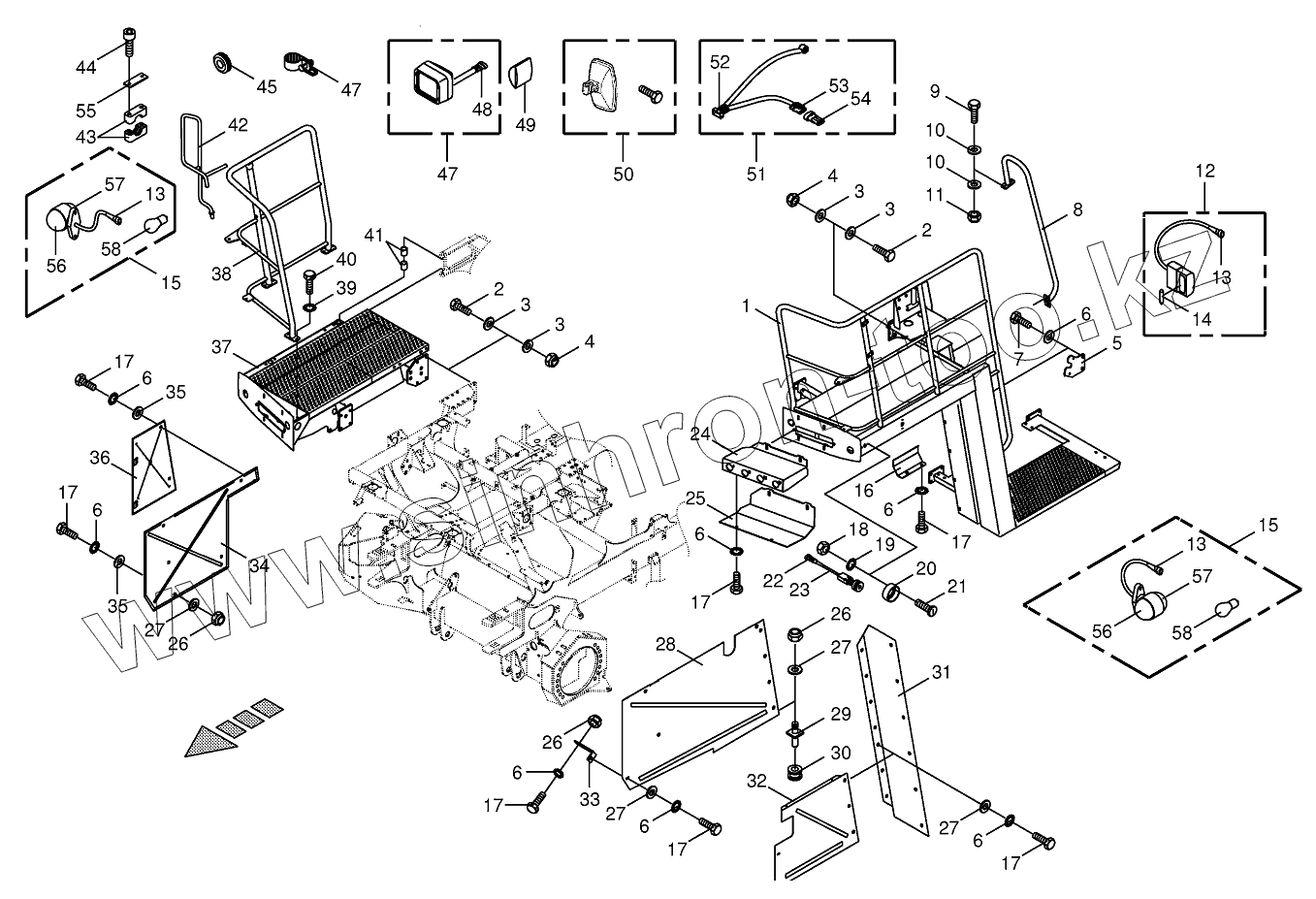

Позиция на иллюстрации Заводской номер детали Название детали
009247670 009247670 Bulb
200802320 200802320 Xenon work light-optional
200802330 200802330 Xenon blub-optional
270011770 270011770 Rear view mirror-right
1 200223690 Ascendency-left
2 009006580 Hex head bolt
2 009014520 Hex head bolt
2 009014510 Hex head bolt
3 009103200 Washer
3 009105061 Washer
4 009087010 Locknut
5 002177370 Lamp support-left
6 009099081 Detent edged washer
7 009006120 Hex head bolt
8 002254493 Handrail-left
9 009006370 Hex head bolt
10 009104140 Washer
11 009087580 Locknut
12 003032134 Lighting-left
13 003023560 Coupling socket-2-pole
14 009247090 Singel filament buld
15 003032291 Side light
16 002199140 Switch protection
17 009006140 Hex head bolt
18 009082080 Hex nut
19 009099061 Detent edged washer
20 002289420 Switch protection
21 009030451 Allen screw
22 003023550 Coupling socket-3-pole
23 003032482 Instantanequs cut-out switch
24 003601560 Support
25 003601681 Splash guard
26 009087060 Locknut
27 009106040 Washer
28 200224840 Guard plate-top left
29 002175841 Sprig
30 009242070 Cable bushing
31 200224940 Sheet metal screen-left
32 200224830 Guard plate-below left
33 002257421 Screwing angle
34 200203530 Guard plate-right
35 009106030 Washer
36 002288231 Cover-right
37 002155290 Platform-right
38 200222970 Handrail -right
39 009099091 Detent edged washer
40 009006360 Hex head bolt
41 009353330 Bearing bush
42 200223750 Mirror support -left
42 200223290 Mirror support -right
43 009251470 Tube clamp-2 halves
44 009030502 Allen screw
45 009242340 Guidance sleeve
46 009240700 Screwless corrugatend tube
47 003035812 Work light
48 003023540 Coupling socket-4-pole
49 270011760 Blind angle mirror-heated
50 270011780 Rear view mirror-left
51 200805060 Cable-for rear view mirror
52 003030840 Plug-10-pole
53 003023520 Plug-3-pole
54 003033790 Blind-pin casing-3-pole
55 009251450 Cover plate
56 200807640 Pane-white
57 200807650 Pane-red
58 009247360 Singel filament buld
