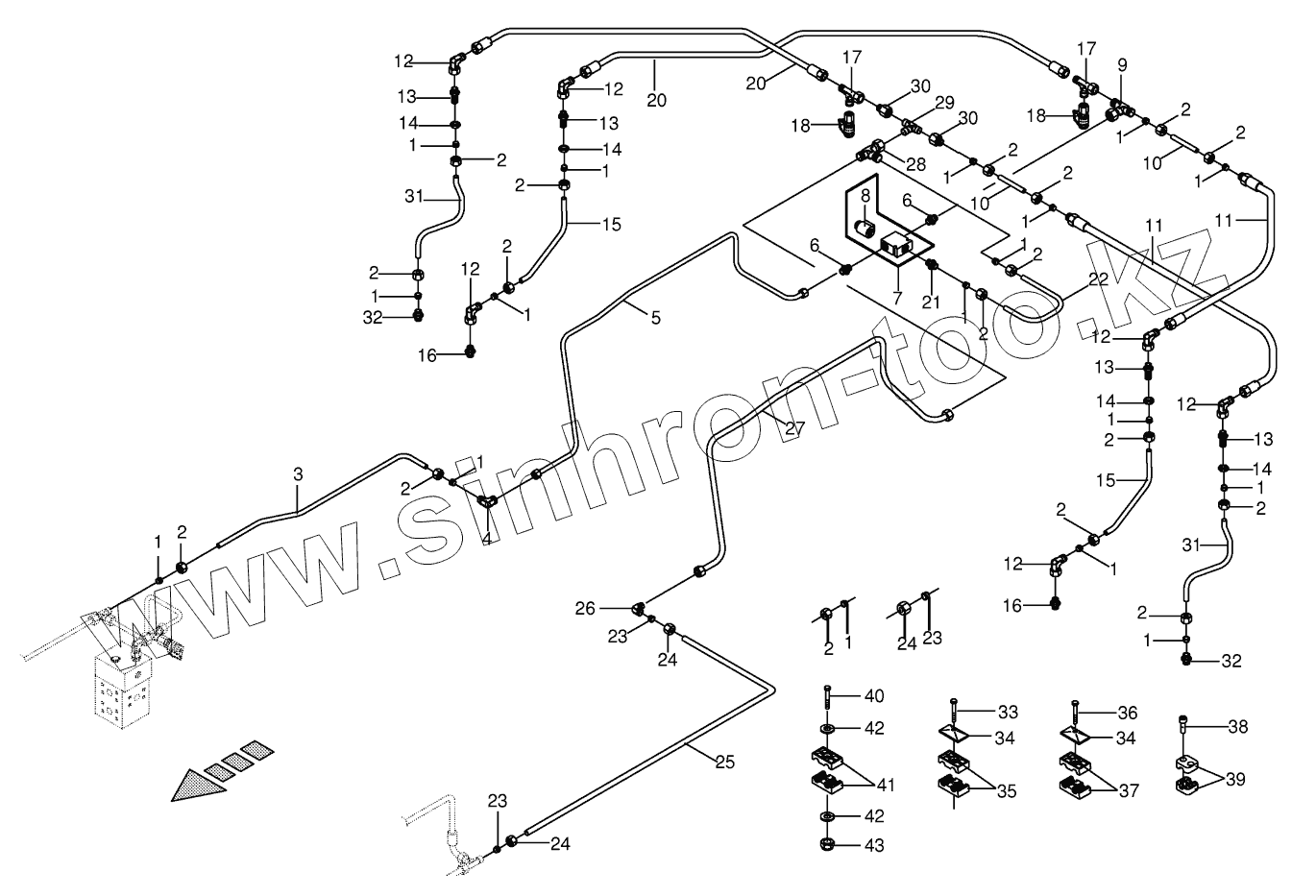

Каталог запасных частей к технике: KRONE BIG-M-II. Hydr.ground drive/pressure oil line - rear
/113.gif)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
4
5
6
6
7
8
9
10
10
11
11
12
12
12
12
12
12
13
13
13
13
14
14
14
14
15
15
16
16
17
17
18
18
20
20
21
22
23
23
23
24
24
24
25
26
27
28
29
30
30
31
31
32
32
33
33
34
34
35
36
37
38
39
39
40
41
42
42
43
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 009190700 | 009190700 | Solenoid coil | |
| 1 | 009210461 | Cutting ring | |
| 2 | 009212060 | Nozzle disc cap | |
| 3 | 002332440 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 4 | 009210661 | Elbow union | |
| 5 | 002335880 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 6 | 009199181 | Male connector | |
| 7 | 009190340 | 3/2-Diverter vave bloc | |
| 8 | 009190280 | 3/2-Directional-control valve | |
| 9 | 009210771 | T-connector | |
| 10 | 002332480 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 11 | 009210281 | High pressure hose line | |
| 12 | 009210671 | Angle lug | |
| 13 | 009210871 | Straight 2-way connector | |
| 14 | 009085242 | Hex nut-low form | |
| 15 | 002307290 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 16 | 009210602 | Male connector | |
| 17 | 009210791 | Adjustable L connection | |
| 18 | 009208680 | Connector f.mini-test equipm. | |
| 20 | 009210161 | High pressure hose line | |
| 21 | 009197611 | Male connector | |
| 22 | 002332400 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 23 | 009210471 | Cutting ring | |
| 24 | 009210430 | Nozzle disc cap | |
| 25 | 002332410 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 26 | 009210881 | Elbow union | |
| 27 | 002335870 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 28 | 009210750 | Adjustable L connection | |
| 29 | 009210731 | T-connector | |
| 30 | 009211601 | Reducer fitting | |
| 31 | 002307280 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 32 | 009209011 | Male connector | |
| 33 | 009014230 | Hex head bolt | |
| 33 | 009016131 | Hex head bolt | |
| 34 | 009251350 | Cover plate | |
| 35 | 009251050 | Tube clamp-2 halves | |
| 36 | 009010481 | Hex head bolt | |
| 37 | 009251460 | Tube clamp-2 halves | |
| 38 | 009030480 | Allen screw | |
| 39 | 009251011 | Tube clamp-2 halves | |
| 39 | 009251480 | Tube clamp-2 halves | |
| 40 | 009014230 | Hex head bolt | |
| 41 | 009251550 | Tube clamp-2 halves | |
| 42 | 009104130 | Washer | |
| 43 | 009087060 | Locknut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
