Каталог запасных частей к технике: KRONE BIG-M-II. Hydr.ground drive / Cam lobe mot.- front
/110.gif)
1
2
3
4
4
5
6
6
6
6
7
7
7
7
8
8
9
9
10
10
12
12
12
13
13
14
15
16
17
17
18
19
19
20
20
21
21
21
21
21
21
22
22
22
22
22
22
23
24
25
26
27
28
29
30
31
32
33
35
35
35
36
37
38
39
40
43
44
45
46
47
48
49
50
51
52
53
54
54
55
55
55
56
57
58
59
60
60
61
62
63

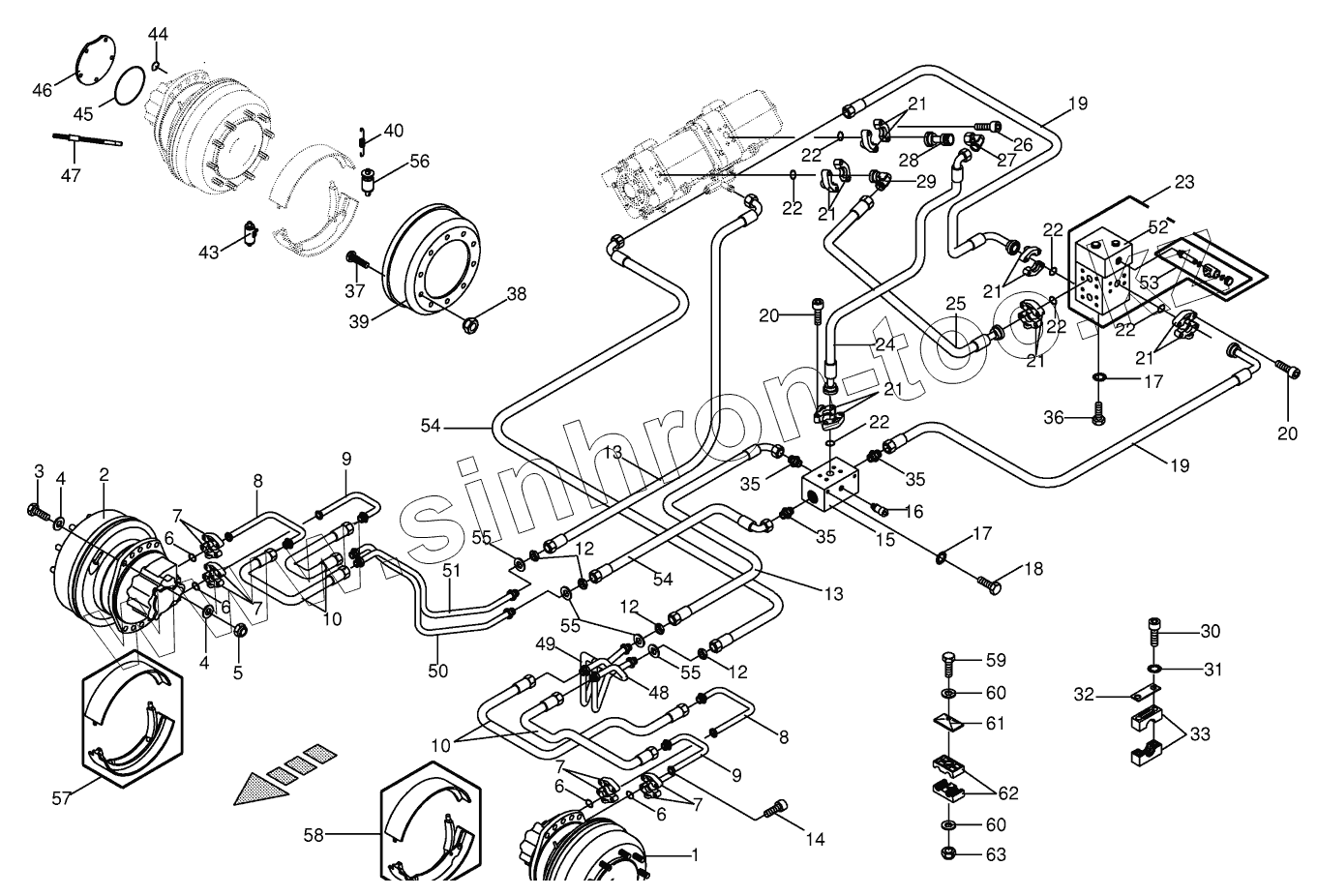

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 270083810 | 270083810 | Pressure spring | |
| 009191610 | 009191610 | Sealing set | |
| 009191240 | 009191240 | Gasket ring | |
| 1 | 002315520 | Wheel motor-left, cpl. | |
| 2 | 002315510 | Wheel motor-right, cpl. | |
| 3 | 009012171 | Hex head bolt | |
| 4 | 009105122 | Washer | |
| 5 | 009087210 | Locknut | |
| 6 | 009375570 | O-ring | |
| 7 | 009208601 | SAE-flange section-2 halves | |
| 8 | 002327130 | Soldered joint | |
| 9 | 002327140 | Soldered joint | |
| 10 | 009200850 | High pressure hose line | |
| 12 | 009197450 | Hex nut | |
| 13 | 009200640 | High pressure hose line | |
| 14 | 009031090 | Allen screw | |
| 15 | 002326622 | High pressure hydraulic modulation block | |
| 16 | 003024731 | Pressure sensor | |
| 17 | 009099101 | Detent edged washer | |
| 18 | 009006530 | Hex head bolt | |
| 19 | 009197840 | High pressure hose line | |
| 20 | 009031431 | Allen screw | |
| 21 | 009208611 | SAE-flange section-2 halves | |
| 22 | 270039240 | Flange gasket | |
| 23 | 002319382 | Hp-ganged valve | |
| 24 | 009197731 | High pressure hose line | |
| 25 | 009197670 | High pressure hose line | |
| 26 | 009003120 | Allen screw | |
| 27 | 009199040 | Lug | |
| 28 | 009199020 | SAE extern.screw thread flange | |
| 29 | 009199030 | SAE-flange adapter | |
| 30 | 009030031 | Allen screw | |
| 31 | 009099091 | Detent edged washer | |
| 32 | 009251251 | Cover plate | |
| 33 | 009251541 | Tube clamp-2 halves | |
| 35 | 009197831 | Male connector | |
| 36 | 009006530 | Hex head bolt | |
| 37 | 009191180 | Wheel pin | |
| 38 | 009102200 | Nut | |
| 39 | 009190600 | Brake drum-10 hole | |
| 40 | 009190610 | Spring set | |
| 43 | 009190580 | Wheel brake cylinder | |
| 44 | 009375740 | O-ring | |
| 45 | 009375730 | O-ring | |
| 46 | 009190510 | Cover | |
| 47 | 009190590 | Brake cable | |
| 48 | 002333251 | Soldered joint-R | |
| 49 | 002333240 | Soldered joint | |
| 50 | 002333521 | Soldered joint | |
| 51 | 002333510 | Soldered joint-R | |
| 52 | 002334510 | Head rinse valve | |
| 53 | 009387280 | Magnetic steering hub | |
| 54 | 009200860 | High pressure hose line | |
| 55 | 009103340 | Washer | |
| 56 | 009405430 | Autom. adjuster | |
| 57 | 270009710 | Brake shoe-left | |
| 58 | 270009290 | Brake shoe-right, incl. spring | |
| 59 | 009014230 | Hex head bolt | |
| 60 | 009104130 | Washer | |
| 61 | 009251340 | Cover plate | |
| 62 | 009251550 | Tube clamp-2 halves | |
| 63 | 009087060 | Locknut |
