Вернуться на главную
Поиск
Каталоги запчастей к технике
Сельхозтехника
KRONE
BIG-M-II
Cutter bar with blade fastening-lateral
Каталог запасных частей к технике: KRONE BIG-M-II. Cutter bar with blade fastening-lateral
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
AGCO
Amity
CASE IH
DongFeng
Fortschritt
Foton
Franz Kleine
Gaspardo
Great Plains
KRONE
KUHN
Lemken
Lovol
MacDon
Massey Ferguson
New Holland
TIGARBO
Vaderstad
Versatile
Wirax
Агро
Агротехмаш
Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш»)
БЭМЗ
ВгТЗ
Воронежсельмаш
ВТЗ
Гомсельмаш
ДКЗ
ЗАО "Техника-сервис"
ЗиД
КЗК
Кировец-Ландтехник
Клевер
Красная Звезда
Лидагропроммаш
Лидсельмаш
ЛТЗ
Машстройхолдинг
Минитракторы
Мордовагромаш
МТЗ
Навигатор-Новое машиностроение
Нефтекамский автозавод
ПТЗ
Ремком
РСМ
Сибсельмаш
ТеКЗ
ТКЗ
ХЗТСШ
ХТЗ
ЮМЗ
Модель
Не выбрано
280CV-Q, 320CV-Q, 280CRI-Q (2013)
280CV-Q, 320CV-Q, 280CRI-Q (2013)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
AFL243RS (2013)
AM 203CV, AM 243CV, AM 283CV (2018)
AM 203CV, AM 243CV, AM 283CV (2018)
AM 203CV, AM243CV, AM283CV (2018)
AM 203CV, AM243CV, AM283CV (2018)
AM 243 (2018)
AM 243CV (2018)
AM 243CV (2018)
AM 243CV, AM283CV (2018)
AM 283 (2018)
AM 283CV (2018)
BiG X 500 (2018)
BiG X V8, BiG X V12 (2018)
BIG-M-400 (2016)
BIG-M-420 (2016)
BIG-M-420 (2016)
BIG-M-I (2016)
BIG-M-I (2016)
BIG-M-I (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-X-1000 (2016)
BIG-X-1000 (2016)
BIG-X-1100 (2016)
BIG-X-480 (2016)
BIG-X-480 (2017)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-530 (2016)
BIG-X-530 (2017)
BIG-X-580 (2016)
BIG-X-580 (2017)
BIG-X-600 (2016)
BIG-X-600 (2016)
BIG-X-600 (2016)
BIG-X-630 (2016)
BIG-X-630 (2017)
BIG-X-650 (2010)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-700 (2010)
BIG-X-700 (2013)
BIG-X-700 (2013)
BIG-X-700-1 (2013)
BIG-X-700-1 (2013)
BIG-X-700-1 (2016)
BIG-X-700-1 (2016)
BIG-X-700-1 (2016)
BIG-X-800 (2016)
BIG-X-800 (2016)
BIG-X-800/1000 (2013)
BIG-X-850-1 (2018)
BIG-X-850-1/1100-1 (2013)
BIG-X-850-1/1100-1 (2013)
BIG-X-850/1100 (2013)
BIG-X-V8/BIG-X-V12 (2013)
BIG-X-V8/BIG-X-V12 (2013)
BIG-X-V8/BIG-X-V12 (2013)
Easycollect (2018)
EasyCut F360M (2018)
EasyFlow 300, 380 (2012)
EasyFlow 3000, 3800 (2013)
EasyFlow 3000, 3800 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EC 27/32 (2013)
EC 28/32 (2013)
EC 28/32 (2013)
EC 28/32 (2013)
EC 28/32CV (2013)
EC 28/32CV (2013)
EC 28/32CV (2013)
EC 28/32M (2013)
EC 28/32M (2013)
EC 28/32P (2013)
EC 28/32P (2013)
EC 28/32P (2013)
EC 28M (2013)
EC 32CRI (2013)
EC 32CRI (2013)
EC 32CRI (2013)
EC 32CV (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC F280 (2018)
EC F280 / F320 (2013)
EC F280 M (2013)
EC F280/320/360 (2013)
EC F320 (2018)
EC F320 M (2013)
EC F320 M (2013)
EC F320CV (2013)
EC F320M/F360M (2013)
EC F360 (2018)
EC R280 (2013)
EC R320 (2013)
EC R360 (2013)
EC R400 (2018)
EC-9000 (2008)
EC270CV/320CV (2013)
EC280/320 (2013)
EC280/320 (2013)
EC280/320 (2013)
EC280CV-Q/320CV-Q (2013)
EC280CV/320CV (2013)
EC280CV/320CV/280CR (2013)
EC280CV/320CV/C280CRI (2013)
EC28CV/32CV/32CV-F (2013)
EC28CV/C32CV/32CV-F (2013)
EC32CV/32CV-F (2013)
EColl.6000,7500,6000FP (2013)
EColl.6000,7500,9000,6000F (2013)
EColl.6000,7500,9000,6000F/FP (2013)
EColl.6000,7500,9000,6000F/FP (2013)
EColl.6000-7500-9000-6000CL/JD (2013)
ECollect 753, 903, 1053 (2013)
ECollect753, 903, 1053 (2013)
ECollect753, 903, 1053 (2013)
ECR280CV/320CV (2012)
KW 8.50-8 (2018)
KWT 7.70-6X7, KWT 8.50-8, KWT 10.50-8X7 (2018)
X-Disc 6200 (2013)
X-Disc 6200 (2013)
Схема
>
Не выбрано
Per mower unit front (CV)
Cutter bar with bearings-front
Cutter bar with blade fastening-front
Cutter bar with quick coupler-front
Cutter bar - shear protection - front
Tine conditioner housing/tine conditiner - front
Gearbox
Transmission part I - front
Transmission part I - front
Transmission part II - front
Transmission part II - front
Front-guard
Swathlaying-front
Per mower unit lateral (CV)
Cutter bar with bearings-lateral
Cutter bar - shear protection - lateral
Cutter bar with blade fastening-lateral
Cutter bar with quick coupler-lateral
Tine conditioner housing kpl.-lateral
Tine conditioner housing -lateral
Tine conditioner -lateral
Tine conditioner Lubricating line CV
Cover for main gear box - lateral
Main gearbox and driving shaft-lateral
Main gearbox / mower bar - lateral
Tine conditioner drive - lateral
Guard for mower beam cpl.-left / right
Baffle plate
Auger trough/auger hood - left/right
Hydraulic auger hood
Hydraulic Auger Hood optional 702001 - 725500
Hydraulic Auger Hood optional 702001 - 725500
Auger - left and right
Auger gear
Lubricating line / grease - lateral
Chequered plate - front / lateral
Per mower unit front (CRI)
Per mower unit lateral (CRI)
Cutter bar with bearings 702001 - 725500
Cutter bar with bearings 702001 - 725500
Cutter bar - shear protection - front/lateral CRI
Cutter bar with blade fastening
Cutter bar with quick coupler
Guide plate
Frame / Roller - front CRI 702001 - 719999
Frame / Roller - front CRI 720000 - 725500
CRI-Roller
Protecting cup
Main gearbox - front CRI
Gearbox - front CRI
Gearbox - front/lateral CRI 702001 - 719999
Gearbox - front/lateral CRI 720000 - 725500
Guard cpl. - front CRI
Swathlaying - front CRI
Guard RH CRI
Lubricating line - front CRI
Accessories - front CRI 702001 - 719999
Accessories - front CRI 720000 - 725500
Roller cond. housing lateral CRI
Frame for buffle plates/auger trough CRI
Roller - lateral CRI 702001 - 719999
Roller - lateral CRI 720000 - 725500
CRI-Roller
Main gearbox - left CRI
T-Gearbox - right CRI
Gearbox - lateral CRI
Auger trough-lateral CRI
Hydraulic auger hood CRI 702001 - 725500
Hydraulic Auger Hood CRI 702001 - 725500
Hydraulic Auger Hood CRI 702001 - 719999
Hydraulic Auger Hood CRI 720000 - 725500
Auger with gear - sideways CRI
Auger gear CRI
Actuation console - right CRI
Guard for mower beam - right CRI
Guard for mower beam - left CRI
Gear accessoires BSS
Lubricating line / grease - lateral CRI
High-cut skid / Wear skid
Air level-front / lateral
Front wing cpl.
Mounting parts number of mover units
Control lever cpl.- left CV / BSS
Control lever cpl.- left
Control lever cpl.- right CV / BSS
Control lever cpl.- right
Control lever/frame - left/right
Belt gurd located - left / right
Portal cpl.
Spring compensation - Tension spring
Separated spring compensation - Tension spring
Front auxiliary pto.stub
Central gearbox cpl.
Tensioning device on central gearbox
Frame / axle
Steering axle installed
Leader / Box - left
Platform / Box - right
Rear view mirror / Work light
Front guard / Lighting
Valve guard
Engine guards
Radiator guards
Lighting bracket / trailer hitch
Diesel fuel tank cpl.
Diesel engine / Clutch
Silencer / Charge air tubes
Air filter installed
Self-cleaning pre-separator
Fan drive
Cooling agent cooler / Radiator frame
Hydraulic tank cpl.
Variable disqlacement pump
Hydr.ground drive - var.displ. pump
Radiator - var. displ. pump
Hydr.ground drive / Cam lobe mot.- front
Hydr.ground drive / Cam lobe mot.- back
Hydr.ground drive/pressure oil line - front
Hydr.ground drive/pressure oil line - rear
Working hydraulics - Gear pump 2 x
Working hydr. - hydr.line (steering)
Working hydraulics - Valve block
Working hydraulics - Mounting parts
Hydraulics - front mower / hillside
Hydraulics
Hydraulics Control valve optional
Hydraulic Spring compensation optional 702001 - 725500
Hydraulic Spring compensation optional 702001 - 725500
Hydraulics cutting height optional 702001 - 725500
Hydraulics cutting height optional 702001 - 719999
Hydraulics cutting height optional 720000 - 725500
Hydraulics
Hydraulic brakes
Parking brake
Tyres
Mudguard
Battery
Cab suspension / Deacon light / Horn
Cab 702001 - 725500
Cab 702001 - 725500
Cab - glazing
Rear blind / lateral blind
Cab 702001 - 725500
Control panel (roof)
Cab 702001 - 725500
Air conditioning
Steering columm
Wear parts - driver's seat
Control box
Control switsches
Terminals and connectors
Terminals and connectors
Control box - wiring harness
Multifunction lever / Circuit board
Pedal - levelling mechanism
Wiring harness 4x5 / Wiring harnes 4x1
Wiring harness 4x3 / Wiring harnes 4x2
Wiring harness 1x4 / Wiring harnes 1x6
Wiring harness 1x7 / Wiring harnes 1x8
Wiring harness 2x6 / Wiring harnes
Wiring harness 2x7 / Wiring harnes 2x8
Wiring harness 4x4 / Wiring harnes 2x4
Distributor
Wiring Harness
Wiring Harness - cutting height
Wiring Harness
Automatic pilot
Steering axle - automatic pilot
Hydraulics - automatic pilot
Wiring harness - automatic pilot
Central lubrication
Fire extinguisher
P.T.O shafts -cpl.
P.T.O shafts
P.T.O shafts
P.T.O shafts
P.T.O shafts
Main Pto shaft
Double universal joint
Double universal joint
Warning signs
General information labels
Label
1
2
3
3
4
4
5
5
6
7
7
8
8
9
9
9
10
10
11
12
13
14
15

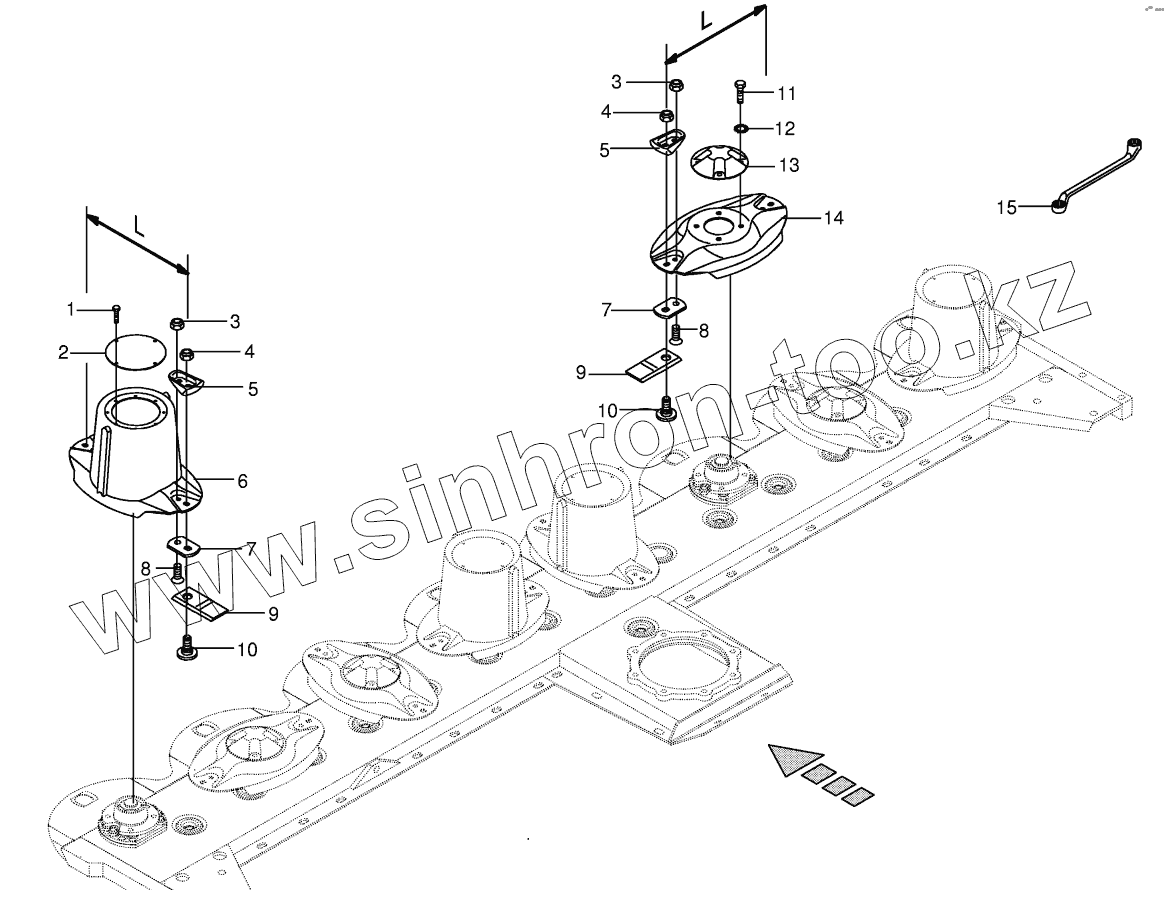

Позиция на иллюстрации
Заводской номер детали
Название детали
1
009069490
Self-tapping screw
2
002530521
Cover
3
009087580
Locknut
4
009080560
Self-locking nut
5
002537430
Guard
6
002535331
Mower drum
7
002530423
Knife support
8
009040453
Countersunkscrew
9
001398893
Knife-right
9
001398883
Knife-left
10
002537440
Knife screw
11
009006340
Hex head bolt
12
009099091
Detent edged washer
13
002530470
Cover
14
002535302
Mower disc
15
009253032
Spanner key
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
/17.gif)
