  5. Hydr.ground drive/pressure oil line - front

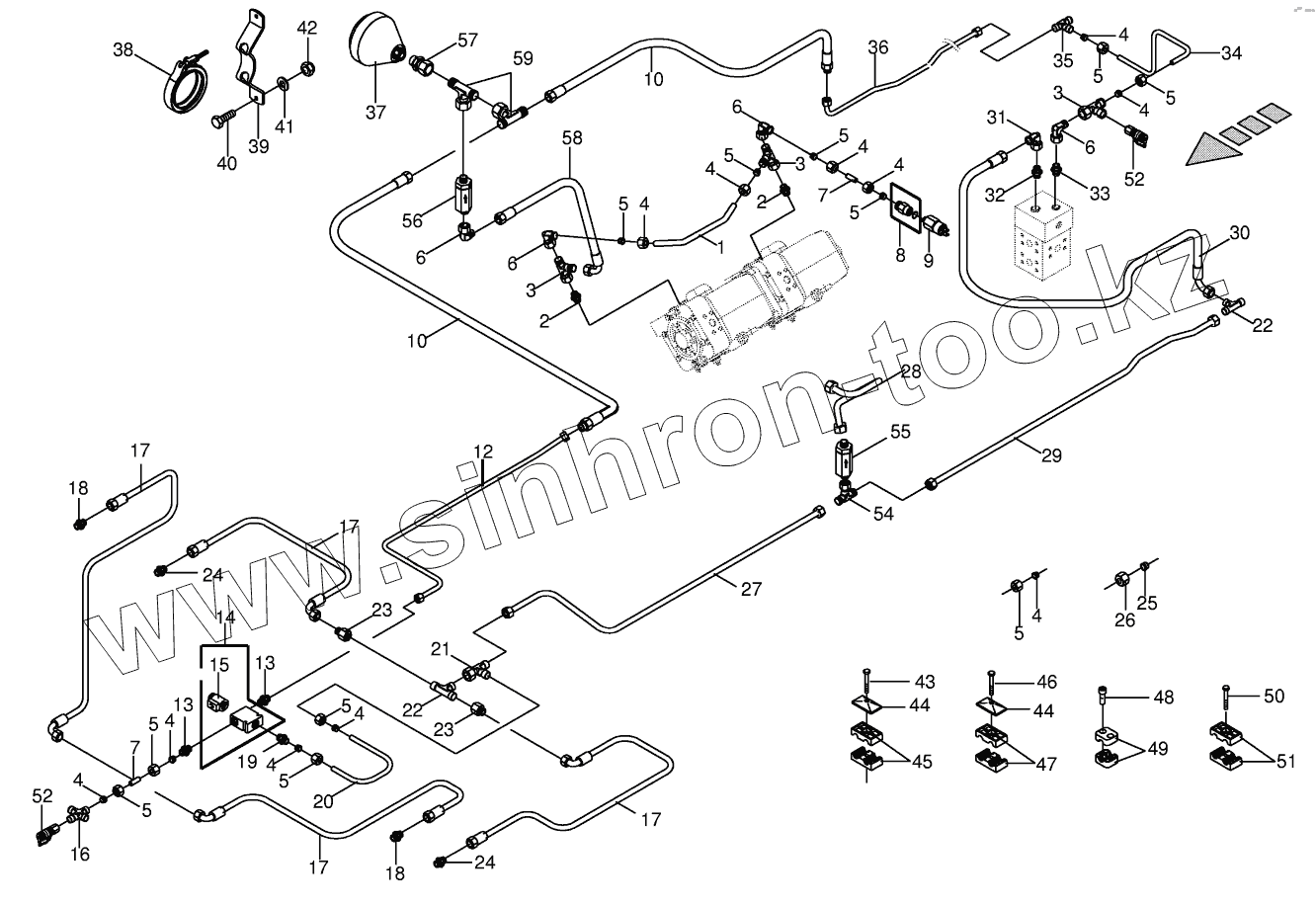

Каталог запасных частей к технике: KRONE BIG-M-II. Hydr.ground drive/pressure oil line - front

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
3
3
3
4
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
5
6
6
6
6
7
7
8
9
12
13
13
14
15
16
17
17
17
17
18
18
19
20
21
22
22
23
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
43
43
44
44
45
46
47
48
49
49
50
51
52
52
54
55
56
57
58
59
Позиция на иллюстрации Заводской номер детали Название детали
009190700 009190700 Solenoid coil
1 002327571 Hydraulic line
2 009208950 Male connector
3 009210791 Adjustable L connection
4 009212060 Nozzle disc cap
5 009210461 Cutting ring
6 009210671 Angle lug
7 002307430 Double nipple
8 009199550 Unscrewing connection
9 003021890 Pressure switch
12 002335900 Hydraulic line-incl. nozzle disc cap, cutting ring
13 009199180 Male connector
14 009190340 3/2-Diverter vave bloc
15 009190280 3/2-Directional-control valve
16 009210941 Cross pipe union
17 009210041 High pressure hose line
18 009210602 Male connector
19 009197610 Male connector
20 002332400 Hydraulic line-incl. nozzle disc cap, cutting ring
21 009210750 Adjustable L connection
22 009210731 T-connector
23 009211601 Reducer fitting
24 009197850 Male connector
25 009210471 Cutting ring
26 009210430 Nozzle disc cap
27 002335840 Hydraulic line-incl. nozzle disc cap, cutting ring
28 002337320 Hydraulic line-incl. nozzle disc cap, cutting ring
29 002335860 Hydraulic line-incl. nozzle disc cap, cutting ring
30 009209822 High pressure hose line
31 009210651 Angle lug
32 009209111 Male connector
33 009209011 Male connector
34 002332470 Hydraulic line-incl. nozzle disc cap, cutting ring
35 009210711 T connector
36 002335890 Hydraulic line-incl. nozzle disc cap, cutting ring
37 009196070 Pressure accumulator
38 009240300 Joint bolt-hose clamp
39 002312090 Accumulator support
40 009006380 Hex head bolt
41 009104140 Washer
43 009014230 Hex head bolt
43 009016131 Hex head bolt
44 009251350 Cover plate
45 009251050 Tube clamp-2 halves
46 009010481 Hex head bolt
47 009251460 Tube clamp-2 halves
48 009030480 Allen screw
49 009251011 Tube clamp-2 halves
49 009251480 Tube clamp-2 halves
50 009006170 Hex head bolt
51 009251550 Tube clamp-2 halves
52 009208680 Connector f.mini-test equipm.
53 009377170 Gasket ring
54 009209500 T connector
55 009191690 High pressure filter
56 009400920 High pressure filter
57 009210931 Male connector
58 009209720 High pressure hose line
59 009210771 T-connector
