  5. Diesel fuel tank cpl.

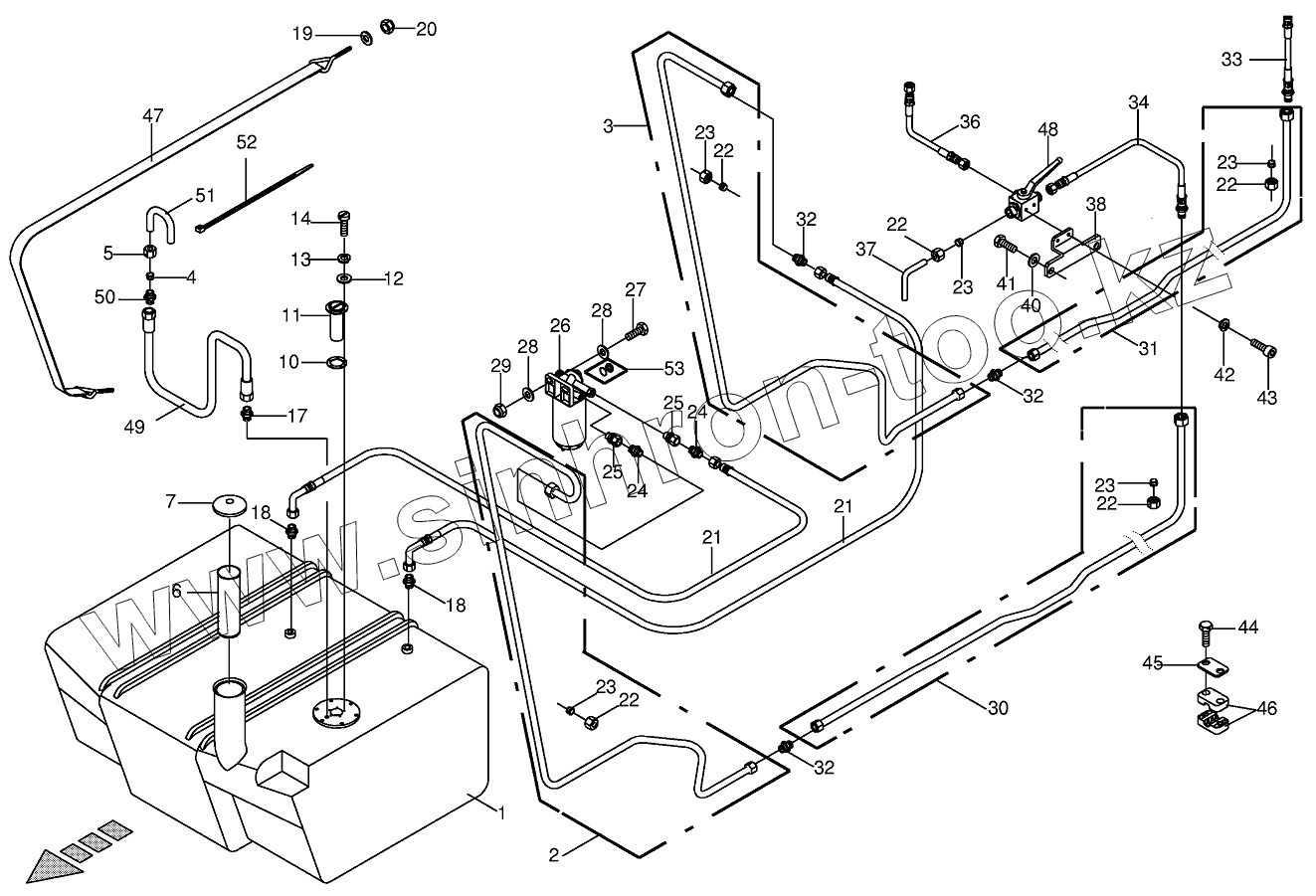

Каталог запасных частей к технике: KRONE BIG-M-II. Diesel fuel tank cpl.

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
10
11
12
13
14
17
18
18
19
20
21
21
22
22
22
22
22
23
23
23
23
23
24
24
25
25
26
27
28
28
29
30
31
32
32
32
33
34
36
37
38
40
41
42
43
44
45
46
47
48
49
50
51
52
53
Позиция на иллюстрации Заводской номер детали Название детали
009401700 009401700 Replacement filter
1 002333000 Diesel fuel tank
2 002334820 Hydraulic line-incl. nozzle disc cap, cutting ring
3 002334180 Hydraulic line-incl. nozzle disc cap, cutting ring
4 009210461 Cutting ring
5 009212060 Nozzle disc cap
6 009400850 Sieve
7 009400860 Oil tank filler cap
10 009400460 Gasket
11 003033840 Dipping tube-type sensor
12 009105001 Washer
13 009100310 Spring washer
14 009037450 Allen screw
17 009200340 Male connector
18 009210571 Male connector
19 009104130 Washer
20 009087060 Locknut
21 002330210 Diesel hose
22 009210430 Nozzle disc cap
23 009210471 Cutting ring
24 009209420 Reducer fitting
25 009212040 Male connector
26 009401690 Water separator
27 009006380 Hex head bolt
28 009104140 Washer
29 009087580 Locknut
30 002337070 Hydraulic line-incl. nozzle disc cap, cutting ring
31 002337060 Hydraulic line-incl. nozzle disc cap, cutting ring
32 009210531 Connector
33 002330220 Diesel hose
34 002331360 Diesel hose
36 002331370 Diesel hose
37 002331530 Diesel line
38 002331260 Holding plate
40 009105102 Washer
41 009021290 Hex head bolt
42 009100320 Spring washer
43 009030431 Allen screw
44 009014250 Hex head bolt
45 009251340 Cover plate
46 009251080 Tube clamp-2 halves
47 002333010 Tension band
48 009211211 Diverter valve
49 009209780 High pressure hose line
50 009208970 Reducer fitting
51 002332980 Hydraulic line
52 009226720 Cable band
53 009401270 Inspection glass
