Вернуться на главную
Поиск
Каталоги запчастей к технике
Сельхозтехника
KRONE
BIG-M-II
Wiring harness 2x7/Wiring harnes 2x8
Каталог запасных частей к технике: KRONE BIG-M-II. Wiring harness 2x7/Wiring harnes 2x8
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
AGCO
Amity
CASE IH
DongFeng
Fortschritt
Foton
Franz Kleine
Gaspardo
Great Plains
KRONE
KUHN
Lemken
Lovol
MacDon
Massey Ferguson
New Holland
TIGARBO
Vaderstad
Versatile
Wirax
Агро
Агротехмаш
Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш»)
БЭМЗ
ВгТЗ
Воронежсельмаш
ВТЗ
Гомсельмаш
ДКЗ
ЗАО "Техника-сервис"
ЗиД
КЗК
Кировец-Ландтехник
Клевер
Красная Звезда
Лидагропроммаш
Лидсельмаш
ЛТЗ
Машстройхолдинг
Минитракторы
Мордовагромаш
МТЗ
Навигатор-Новое машиностроение
Нефтекамский автозавод
ПТЗ
Ремком
РСМ
Сибсельмаш
ТеКЗ
ТКЗ
ХЗТСШ
ХТЗ
ЮМЗ
Модель
Не выбрано
280CV-Q, 320CV-Q, 280CRI-Q (2013)
280CV-Q, 320CV-Q, 280CRI-Q (2013)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
AFL243RS (2013)
AM 203CV, AM 243CV, AM 283CV (2018)
AM 203CV, AM 243CV, AM 283CV (2018)
AM 203CV, AM243CV, AM283CV (2018)
AM 203CV, AM243CV, AM283CV (2018)
AM 243 (2018)
AM 243CV (2018)
AM 243CV (2018)
AM 243CV, AM283CV (2018)
AM 283 (2018)
AM 283CV (2018)
BiG X 500 (2018)
BiG X V8, BiG X V12 (2018)
BIG-M-400 (2016)
BIG-M-420 (2016)
BIG-M-420 (2016)
BIG-M-I (2016)
BIG-M-I (2016)
BIG-M-I (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-X-1000 (2016)
BIG-X-1000 (2016)
BIG-X-1100 (2016)
BIG-X-480 (2016)
BIG-X-480 (2017)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-530 (2016)
BIG-X-530 (2017)
BIG-X-580 (2016)
BIG-X-580 (2017)
BIG-X-600 (2016)
BIG-X-600 (2016)
BIG-X-600 (2016)
BIG-X-630 (2016)
BIG-X-630 (2017)
BIG-X-650 (2010)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-700 (2010)
BIG-X-700 (2013)
BIG-X-700 (2013)
BIG-X-700-1 (2013)
BIG-X-700-1 (2013)
BIG-X-700-1 (2016)
BIG-X-700-1 (2016)
BIG-X-700-1 (2016)
BIG-X-800 (2016)
BIG-X-800 (2016)
BIG-X-800/1000 (2013)
BIG-X-850-1 (2018)
BIG-X-850-1/1100-1 (2013)
BIG-X-850-1/1100-1 (2013)
BIG-X-850/1100 (2013)
BIG-X-V8/BIG-X-V12 (2013)
BIG-X-V8/BIG-X-V12 (2013)
BIG-X-V8/BIG-X-V12 (2013)
Easycollect (2018)
EasyCut F360M (2018)
EasyFlow 300, 380 (2012)
EasyFlow 3000, 3800 (2013)
EasyFlow 3000, 3800 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EC 27/32 (2013)
EC 28/32 (2013)
EC 28/32 (2013)
EC 28/32 (2013)
EC 28/32CV (2013)
EC 28/32CV (2013)
EC 28/32CV (2013)
EC 28/32M (2013)
EC 28/32M (2013)
EC 28/32P (2013)
EC 28/32P (2013)
EC 28/32P (2013)
EC 28M (2013)
EC 32CRI (2013)
EC 32CRI (2013)
EC 32CRI (2013)
EC 32CV (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC F280 (2018)
EC F280 / F320 (2013)
EC F280 M (2013)
EC F280/320/360 (2013)
EC F320 (2018)
EC F320 M (2013)
EC F320 M (2013)
EC F320CV (2013)
EC F320M/F360M (2013)
EC F360 (2018)
EC R280 (2013)
EC R320 (2013)
EC R360 (2013)
EC R400 (2018)
EC-9000 (2008)
EC270CV/320CV (2013)
EC280/320 (2013)
EC280/320 (2013)
EC280/320 (2013)
EC280CV-Q/320CV-Q (2013)
EC280CV/320CV (2013)
EC280CV/320CV/280CR (2013)
EC280CV/320CV/C280CRI (2013)
EC28CV/32CV/32CV-F (2013)
EC28CV/C32CV/32CV-F (2013)
EC32CV/32CV-F (2013)
EColl.6000,7500,6000FP (2013)
EColl.6000,7500,9000,6000F (2013)
EColl.6000,7500,9000,6000F/FP (2013)
EColl.6000,7500,9000,6000F/FP (2013)
EColl.6000-7500-9000-6000CL/JD (2013)
ECollect 753, 903, 1053 (2013)
ECollect753, 903, 1053 (2013)
ECollect753, 903, 1053 (2013)
ECR280CV/320CV (2012)
KW 8.50-8 (2018)
KWT 7.70-6X7, KWT 8.50-8, KWT 10.50-8X7 (2018)
X-Disc 6200 (2013)
X-Disc 6200 (2013)
Схема
>
Не выбрано
Cutter bar with bearings-front
Cutter bar with blade fastening-front
Cutter bar with quick coupler-front
Tine conditioner housing/tine conditiner-front
Gearbox
Transmission part I-front
Transmission part II-front
Front-guard
Swathlaying-front
Cutter bar with bearings-lateral
Cutter bar with blade fastening-lateral
Cutter bar with quick coupler-lateral
Tine conditioner housing kpl.-lateral
Tine conditioner housing -lateral
Tine conditioner -lateral
Cover for main gear box-lateral
Main gearbox and driving shaft-lateral (Getriebe 229)
Main gearbox and driving shaft-lateral (Getriebe 230)
Main gearbox and driven shaft-lateral
Main gearbox/mower bar-lateral
Tine conditioner drive-lateral
Guard for mower beam cpl.-left/right
Baffle plate
Auger trough/auger hood-left/right
Auger with gear -left/right
Lubricating line/grease-lateral
Chequered plate-front/lateral
Air level-front/lateral
Front wing cpl.
Mounting parts number of mover units
Control lever cpl.-left CV/BSS
Control lever cpl.-left
Control lever cpl.-right CV/BSS
Control lever cpl.-right
Control lever/frame-left/right
Belt gurd located-left/right
Portal cpl.
Front auxiliary pto.stub
Central gearbox cpl.
Tensioning device on central gearbox
Frame/axle
Steering axle installed
Leader/Box-left
Platform/Box-right
Rear view mirror/Work light
Front guard/Lighting
Valve guard
Engine guards
Radiator guards
Lighting bracket/trailer hitch
Diesel fuel tank cpl.
Diesel engine/Clutch
Silencer/Charge air tubes
Air filter installed
Fan drive
Cooling agent cooler/Radiator frame
Air conditioning
Hydraulic tank cpl.
Variable disqlacement pump
Hydr.ground drive-var.displ. pump
Radiator-var. displ. pump
Hydr.ground drive-front
Hydr.ground drive-rear
Hydr.ground drive/pressure oil line-front
Hydr.ground drive/pressure oil line-rear
Working hydraulics-Gear pump 2 x
Working hydr.-hydr.line (steering)
Working hydraulics-Valve block
Working hydraulics-Mounting parts
Hydraulics-front mower/hillside
Hydraulics
Hydraulics
Hydraulic brakes
Parking brake
Tyres
Mudguard
Battery
Cab suspension/Deacon light/Horn
Cab
Cab
Cab-glazing
Cab
Control panel (roof)
Cab
Steering columm
Wear parts-driver's seat
Control box
Control switsches
Terminals and connectors
Control box-wiring harness
Multifunction lever/Circuit board
Pedal-levelling mechanism
Wiring harness 4x5/Wiring harnes 4x1
Wiring harness 4x3/Wiring harnes 4x2
Wiring harness 1x4/Wiring harnes 1x6
Wiring harness 1x7/Wiring harnes 1x8
Wiring harness 2x6/Wiring harnes
Wiring harness 2x7/Wiring harnes 2x8
Wiring harness 4x4/Wiring harnes 2x4
Distributor
P.T.O shafts
P.T.O shafts
P.T.O shafts
P.T.O shafts
Main Pto shaft
Double universal joint
Double universal joint
General information labels
Warning signs
Cutter bar with bearings
Cutter bar with blade fastening
Cutter bar with quick coupler CRI
Frame/Roller-front CRI
Protecting cup
Spring compensation-front CRI
Main gearbox-front CRI
Gearbox-front CRI
Gearbox-front/lateral CRI
Guard cpl.-front CRI
Swathlaying-front CRI
Guard RH CRI
Swathlaying-front CRI
Lubricating line-front CRI
Accessories-front CRI
Roller cond. housing lateral CRI
Frame for buffle plates/auger trough CRI
Roller-lateral CRI
Main gearbox-left CRI
Gearbox-right CRI
Gearbox-lateral CRI
Auger trough/auger hood -lateral CRI
Auger with gear-sideways CRI
Actuation console-right
Guard for mower beam-right CRI
Guard for mower beam-left CRI
Guard right CRI
Conditioner plate/Guard plate -right
Lubricating line/grease-lateral CRI
Central lubrication
1
2
3
3
3
3
3
11
11
11
13
13
15
17
28
31
31

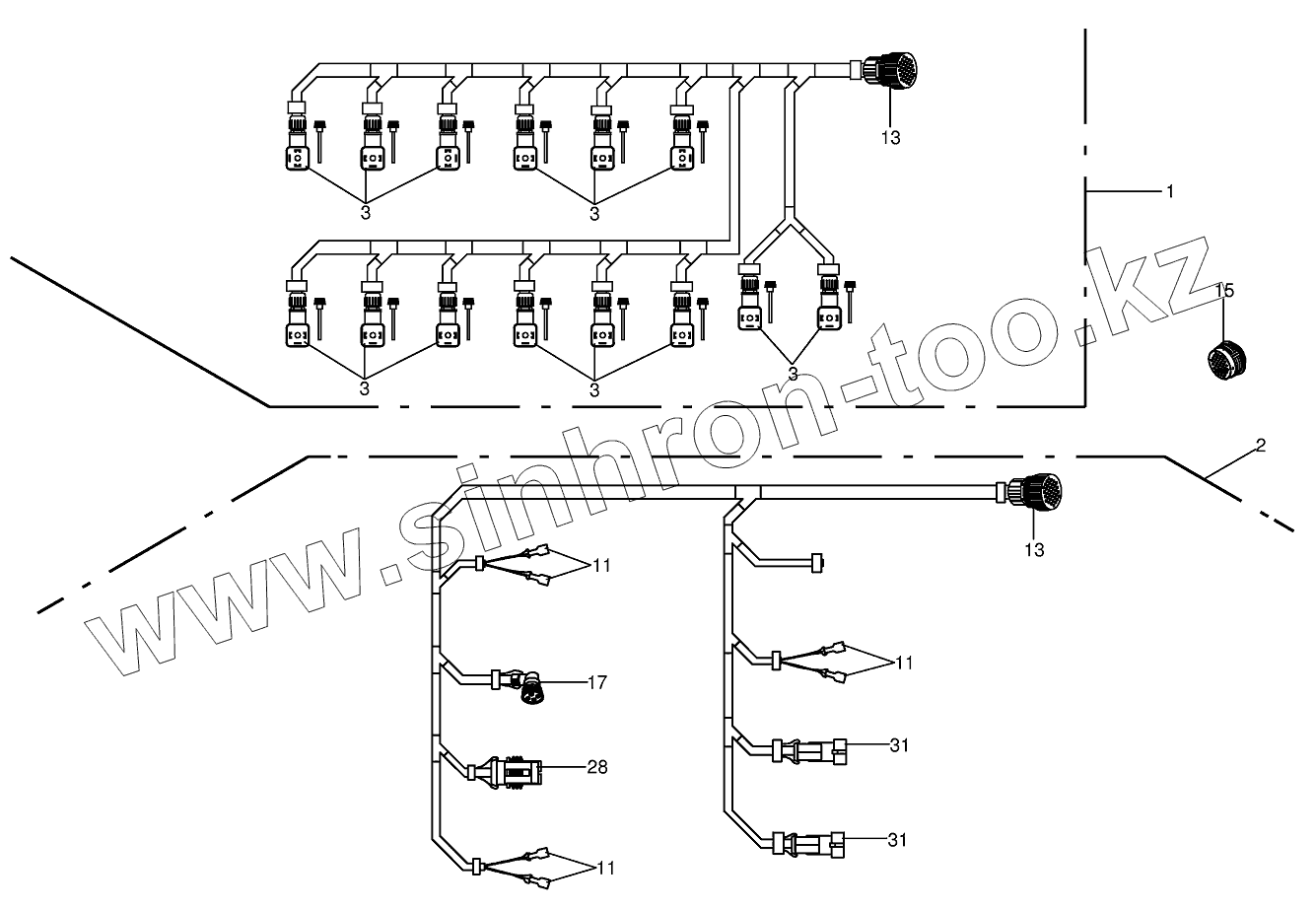

Позиция на иллюстрации
Заводской номер детали
Название детали
003023570
003023570
Plug, LED/Varistor- transparent
003026890
003026890
Flat sleeve-blue
1
003027431
Wiring harness
2
003027440
Wiring harness
3
003023590
Valve plug-black
11
003026880
Flat sleeve-red
13
003024310
Plug-31-pole
15
003024300
Socket-31-pole
17
003031160
AMP-circular plug-4-pole
28
003023510
Plug-2-pole
31
003023560
Coupling socket-2-pole
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
