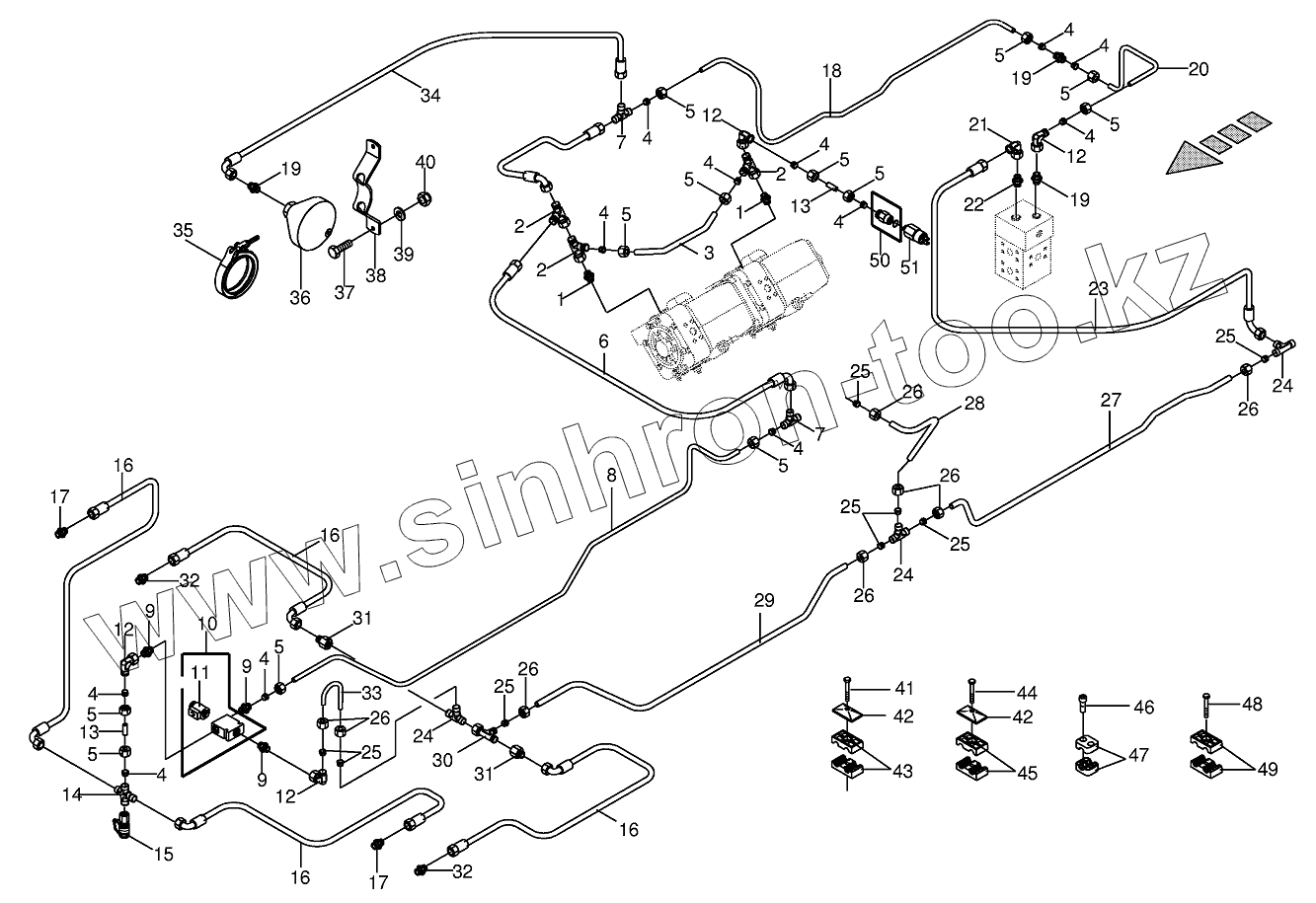

Каталог запасных частей к технике: KRONE BIG-M-II. Hydr.ground drive/pressure oil line-front

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
2
3
4
4
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
5
5
6
7
7
8
9
9
9
10
11
12
12
12
12
13
13
14
15
16
16
16
16
17
17
18
19
19
19
20
21
22
23
24
24
24
25
25
25
25
25
25
26
26
26
26
26
26
27
28
29
30
31
31
32
32
33
34
35
36
37
38
39
40
41
41
42
42
43
44
45
46
47
47
48
49
50
51
Позиция на иллюстрации Заводской номер детали Название детали
1 009208950 Male connector
2 009210791 Adjustable L connection
3 002327571 Hydraulic line
4 009210461 Cutting ring
5 009212060 Nozzle disc cap
6 009210160 High pressure hose line
7 009210711 T connector
8 002327701 Hydraulic line
9 009199180 Male connector
10 009190340 3/2-Diverter vave bloc
11 009190280 3/2-Directional-control valve
12 009210671 Angle lug
13 002307430 Double nipple
14 009210941 Cross pipe union
15 009208680 Connector f.mini-test equipm.
16 009210041 High pressure hose line
17 009210602 Male connector
18 002327621 Hydraulic line
19 009209011 Male connector
20 002327541 Hydraulic line
21 009210651 Angle lug
22 009209111 Male connector
23 009209822 High pressure hose line
24 009210731 T-connector
25 009210471 Cutting ring
26 009210430 Nozzle disc cap
27 002327691 Hydraulic line
28 002327681 Hydraulic line
29 002327501 Hydraulic line
30 009210750 Adjustable L connection
31 009211601 Reducer fitting
32 009197850 Male connector
33 002332370 Hydraulic line
34 009209720 High pressure hose line
35 009240300 Joint bolt-hose clamp
36 009196070 Pressure accumulator
37 009006380 Hex head bolt
38 002312090 Accumulator support
39 009104140 Washer
40 009087580 Locknut
41 009014230 Hex head bolt
41 009016131 Hex head bolt
42 009251350 Cover plate
43 009251050 Tube clamp-2 halves
44 009010481 Hex head bolt
45 009251460 Tube clamp-2 halves
46 009030480 Allen screw
47 009251011 Tube clamp-2 halves
47 009251480 Tube clamp-2 halves
48 009006170 Hex head bolt
49 009251550 Tube clamp-2 halves
50 009209190 Connector
51 003021890 Pressure switch
