  5. Working hydr. - hydr.line (steering)

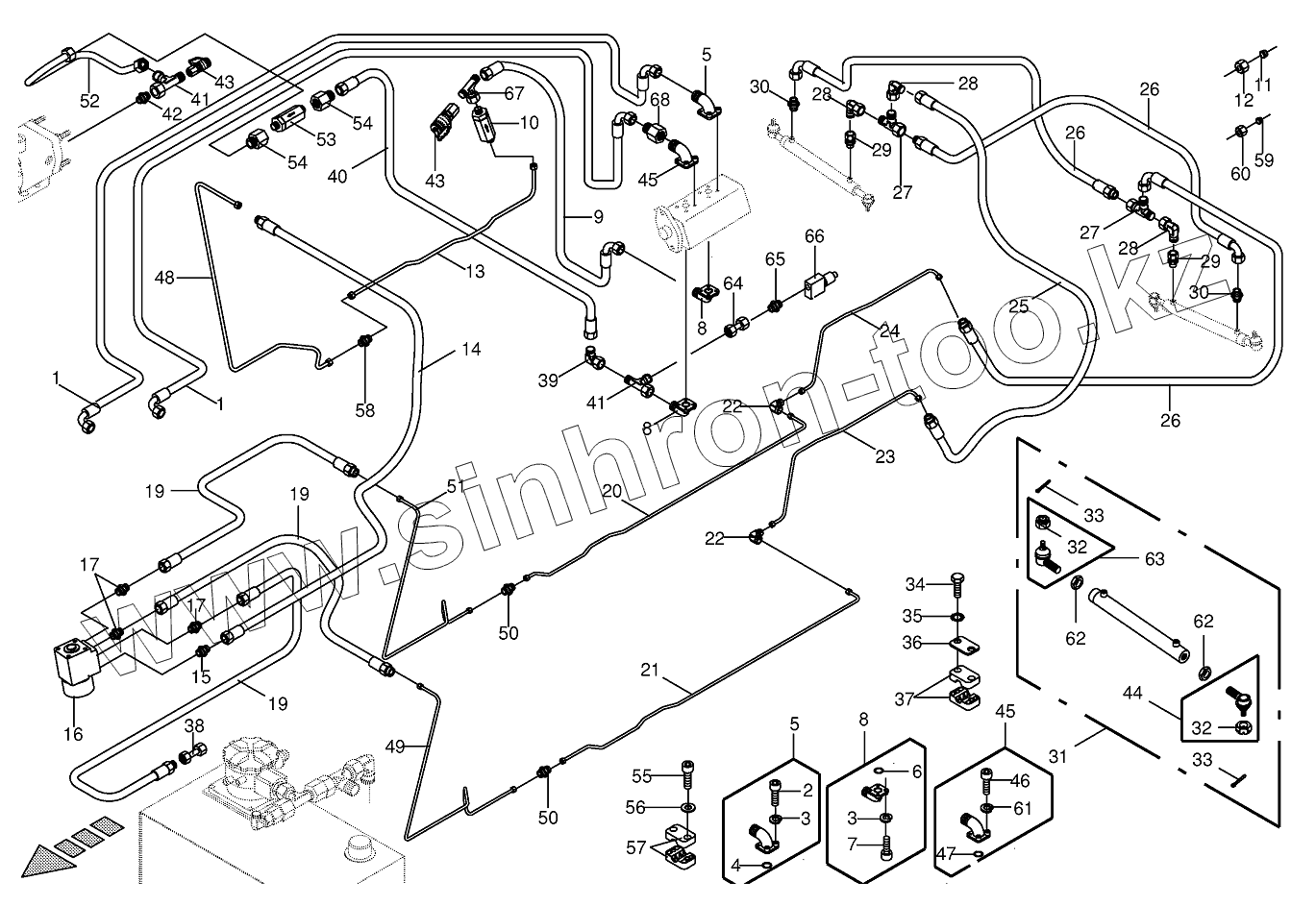

Каталог запасных частей к технике: KRONE BIG-M-II. Working hydr. - hydr.line (steering)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
3
3
4
5
5
6
7
7
8
8
8
9
10
11
12
13
14
15
16
17
17
19
19
19
20
21
22
22
23
24
25
26
26
26
27
27
28
28
28
29
29
30
30
31
32
32
33
33
34
35
36
37
37
38
39
40
41
41
42
43
43
44
45
45
46
46
47
48
49
50
50
51
52
53
54
54
55
56
57
58
59
60
61
62
62
63
64
65
66
67
68
Позиция на иллюстрации Заводской номер детали Название детали
009187380 009187380 Sealing set
1 009200770 High pressure hose line
2 009030451 Allen screw
2 009030512 Allen screw
3 009100320 Spring washer
4 009376280 O-ring
5 009197570 Flange connection
6 009376290 O-ring
7 009030451 Allen screw
7 009030480 Allen screw
8 009197560 Flange connection
9 009209822 High pressure hose line
10 009191690 High pressure filter
11 009210471 Cutting ring
12 009210430 Nozzle disc cap
13 002335910 Hydraulic line-incl. nozzle disc cap, cutting ring
14 009210341 High pressure hose line
15 009210622 Male connector
16 002327460 Steering valve
17 009196021 Male connector
19 009210020 High pressure hose line
20 002335920 Hydraulic line-incl. nozzle disc cap, cutting ring
21 002335930 Hydraulic line-incl. nozzle disc cap, cutting ring
22 009210661 Elbow union
23 002335940 Hydraulic line-incl. nozzle disc cap, cutting ring
24 002335950 Hydraulic line-incl. nozzle disc cap, cutting ring
25 009209650 High pressure hose line
26 009210031 High pressure hose line
27 009210791 Adjustable L connection
28 009210671 Angle lug
29 009210931 Male connector
30 009209011 Male connector
31 009184070 Hydraulic cylinder
32 009089180 Castellated nut
33 009120671 Cotter pin
34 009016131 Hex head bolt
35 009099081 Detent edged washer
36 009251340 Cover plate
37 009251080 Tube clamp-2 halves
37 009251050 Tube clamp-2 halves
38 002307430 Double nipple
39 009210651 Angle lug
40 009210000 High pressure hose line
41 009210750 Adjustable L connection
42 009209111 Male connector
43 009208690 Connector f.mini-test equipm.
44 009232340 Ball joint
45 009197580 Flange connection
46 009030771 Allen screw
46 009016700 Allen screw
47 270009880 O-ring
48 002334830 Hydraulic line-incl. nozzle disc cap, cutting ring
49 002334161 Hydraulic line-incl. nozzle disc cap, cutting ring
50 009210541 Connector
51 002334171 Hydraulic line-incl. nozzle disc cap, cutting ring
52 002337190 Hydraulic line-incl. nozzle disc cap, cutting ring
53 009191700 High pressure filter
54 009211840 Reducer fitting
55 009031500 Allen screw
56 009106090 Washer
57 009251640 Tube clamp-2 halves
58 009210531 Connector
59 009212060 Nozzle disc cap
60 009210461 Cutting ring
61 009099030 Detent edged washer
62 009085242 Hex nut-low form
63 009232330 Ball joint
64 002307440 Double nipple
65 009197611 Male connector
66 270025390 Pressure control valve
67 009209500 T connector
68 009196600 Reducer fitting
