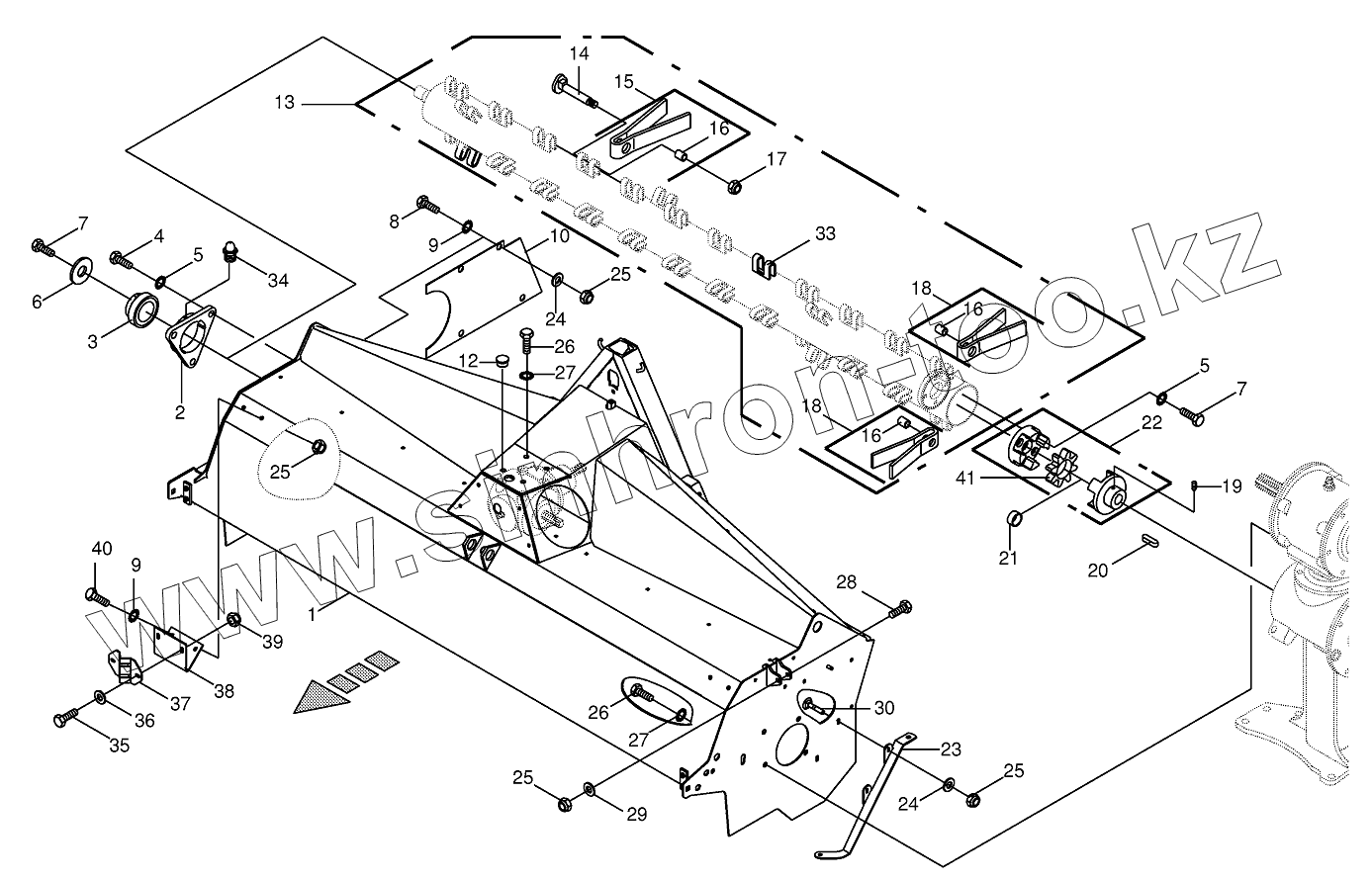

Tine conditioner housing/tine conditiner - front
Каталог запасных частей к технике: KRONE BIG-M-II. Tine conditioner housing/tine conditiner - front
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
AGCO
Amity
CASE IH
DongFeng
Fortschritt
Foton
Franz Kleine
Gaspardo
Great Plains
KRONE
KUHN
Lemken
Lovol
MacDon
Massey Ferguson
New Holland
TIGARBO
Vaderstad
Versatile
Wirax
Агро
Агротехмаш
Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш»)
БЭМЗ
ВгТЗ
Воронежсельмаш
ВТЗ
Гомсельмаш
ДКЗ
ЗАО "Техника-сервис"
ЗиД
КЗК
Кировец-Ландтехник
Клевер
Красная Звезда
Лидагропроммаш
Лидсельмаш
ЛТЗ
Машстройхолдинг
Минитракторы
Мордовагромаш
МТЗ
Навигатор-Новое машиностроение
Нефтекамский автозавод
ПТЗ
Ремком
РСМ
Сибсельмаш
ТеКЗ
ТКЗ
ХЗТСШ
ХТЗ
ЮМЗ
Модель
Не выбрано
280CV-Q, 320CV-Q, 280CRI-Q (2013)
280CV-Q, 320CV-Q, 280CRI-Q (2013)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
AFL243RS (2013)
AM 203CV, AM 243CV, AM 283CV (2018)
AM 203CV, AM 243CV, AM 283CV (2018)
AM 203CV, AM243CV, AM283CV (2018)
AM 203CV, AM243CV, AM283CV (2018)
AM 243 (2018)
AM 243CV (2018)
AM 243CV (2018)
AM 243CV, AM283CV (2018)
AM 283 (2018)
AM 283CV (2018)
BiG X 500 (2018)
BiG X V8, BiG X V12 (2018)
BIG-M-400 (2016)
BIG-M-420 (2016)
BIG-M-420 (2016)
BIG-M-I (2016)
BIG-M-I (2016)
BIG-M-I (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-X-1000 (2016)
BIG-X-1000 (2016)
BIG-X-1100 (2016)
BIG-X-480 (2016)
BIG-X-480 (2017)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-530 (2016)
BIG-X-530 (2017)
BIG-X-580 (2016)
BIG-X-580 (2017)
BIG-X-600 (2016)
BIG-X-600 (2016)
BIG-X-600 (2016)
BIG-X-630 (2016)
BIG-X-630 (2017)
BIG-X-650 (2010)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-700 (2010)
BIG-X-700 (2013)
BIG-X-700 (2013)
BIG-X-700-1 (2013)
BIG-X-700-1 (2013)
BIG-X-700-1 (2016)
BIG-X-700-1 (2016)
BIG-X-700-1 (2016)
BIG-X-800 (2016)
BIG-X-800 (2016)
BIG-X-800/1000 (2013)
BIG-X-850-1 (2018)
BIG-X-850-1/1100-1 (2013)
BIG-X-850-1/1100-1 (2013)
BIG-X-850/1100 (2013)
BIG-X-V8/BIG-X-V12 (2013)
BIG-X-V8/BIG-X-V12 (2013)
BIG-X-V8/BIG-X-V12 (2013)
Easycollect (2018)
EasyCut F360M (2018)
EasyFlow 300, 380 (2012)
EasyFlow 3000, 3800 (2013)
EasyFlow 3000, 3800 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EC 27/32 (2013)
EC 28/32 (2013)
EC 28/32 (2013)
EC 28/32 (2013)
EC 28/32CV (2013)
EC 28/32CV (2013)
EC 28/32CV (2013)
EC 28/32M (2013)
EC 28/32M (2013)
EC 28/32P (2013)
EC 28/32P (2013)
EC 28/32P (2013)
EC 28M (2013)
EC 32CRI (2013)
EC 32CRI (2013)
EC 32CRI (2013)
EC 32CV (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC F280 (2018)
EC F280 / F320 (2013)
EC F280 M (2013)
EC F280/320/360 (2013)
EC F320 (2018)
EC F320 M (2013)
EC F320 M (2013)
EC F320CV (2013)
EC F320M/F360M (2013)
EC F360 (2018)
EC R280 (2013)
EC R320 (2013)
EC R360 (2013)
EC R400 (2018)
EC-9000 (2008)
EC270CV/320CV (2013)
EC280/320 (2013)
EC280/320 (2013)
EC280/320 (2013)
EC280CV-Q/320CV-Q (2013)
EC280CV/320CV (2013)
EC280CV/320CV/280CR (2013)
EC280CV/320CV/C280CRI (2013)
EC28CV/32CV/32CV-F (2013)
EC28CV/C32CV/32CV-F (2013)
EC32CV/32CV-F (2013)
EColl.6000,7500,6000FP (2013)
EColl.6000,7500,9000,6000F (2013)
EColl.6000,7500,9000,6000F/FP (2013)
EColl.6000,7500,9000,6000F/FP (2013)
EColl.6000-7500-9000-6000CL/JD (2013)
ECollect 753, 903, 1053 (2013)
ECollect753, 903, 1053 (2013)
ECollect753, 903, 1053 (2013)
ECR280CV/320CV (2012)
KW 8.50-8 (2018)
KWT 7.70-6X7, KWT 8.50-8, KWT 10.50-8X7 (2018)
X-Disc 6200 (2013)
X-Disc 6200 (2013)
Схема
>
Не выбрано
Per mower unit front (CV)
Cutter bar - SafeCut INSIDE - front -CV
Blade fastening - front-CV
Blade quick coupler - front-CV
Tine conditioner housing/tine conditiner - front
Gearbox
Transmission part I - front
Transmission part II - front
Front-guard
Swathlaying-front
Per mower unit lateral (CV)
Cutter bar - SafeCut INSIDE - lateral Lamier -CV
Blade fastening - lateral-CV
Blade quick coupler - lateral-CV
Tine conditioner housing kpl.-lateral -CV
Tine conditioner housing kpl.-lateral
Tine conditioner housing -lateral
Tine conditioner -lateral
Tine conditioner Lubricating line
Cover for main gear box - lateral
Main gearbox and driving shaft-lateral
Main gearbox /mower bar - lateral
Tine conditioner drive - lateral
Guard for mower beam cpl.-left /right
Baffle plate
Auger trough/auger hood - left/right
Hydraulic auger hood
Hydraulic Auger Hood optional
Hydraulic Auger Hood optional
Auger - left and right
Auger gear
Lubricating line /grease - lateral
Chequered plate - front /lateral
Per mower unit front (CRI)
Per mower unit lateral (CRI)
Cutter bar - SafeCut INSIDE - front/lateral (CRI)
Blade fastening - front /lateral (CRI)
Blade quick coupler - front /lateral (CRI)
Guide plate (CRI)
Roller cond. housing /Roller - front -CRI
Protecting cup
CRI-Roller-optional
Main gearbox - front
Gearbox - front (CRI)
Gearbox - front/lateral (CRI)
Front guard
Swathlaying - front
Lubricating line - front
Accessories - front
Accessories - front
Roller cond. housing /Roller - lateral
Anbauteile roller cond. housing - lateral CRI
Swath doors - lateral
CRI-Roller
Main gearbox - left-CRI Comer
T-Gearbox - right-CRI Comer
Gearbox - lateral-CRI
Auger trough - lateral-CRI
Hydraulic auger hood-CRI
Hydraulic Auger Hood-CRI
Hydraulic Auger Hood-CRI
Auger - left and right-CRI
Auger gear - right and left-CRI
Actuation console - right
Accessories - Geabox
Accessories - Geabox
Guard for mower beam - right
Guard for mower beam - left
Guard -right
Guard -left
Lubricating line /grease - lateral
High-cut skid /Wear skid
Air level-front /lateral
Front wing cpl.
Mounting parts number of mover units
Control lever cpl.- left -CV /BBS
Control lever cpl.- left -CRI
Control lever cpl.- right
Control lever cpl.- right
Control lever/frame - left/right
Belt gurd located - left /right
Portal cpl.
Spring compensation - Tension spring
Separated spring compensation - Tension spring
Front auxiliary pto.stub
Central gearbox cpl.
Tensioning device on central gearbox
Frame /axle
Steering axle installed
Leader /Box - left
Platform /Box - right
Rear view mirror /Work light
Front guard /Lighting
Valve guard
Engine guards
Radiator guards
Air duct-optional
Lighting bracket /trailer hitch
Ladder -back
Diesel fuel tank cpl.
Diesel engine /Clutch
Silencer /Charge air tubes
Air filter installed
Self-cleaning pre-separator
Fan drive
Cooling agent cooler /Radiator frame
Hydraulic tank cpl.
Variable disqlacement pump
Hydr.ground drive - var.displ. pump
Radiator - var. displ. pump
Hydr.ground drive /Cam lobe mot.- front
Hydr.ground drive /Cam lobe mot.- back
Hydr.ground drive/pressure oil line - front
Hydr.ground drive/pressure oil line - rear 733401 - 756999
Hydr.ground drive/pressure oil line - rear 757000 - 784130
Working hydraulics - Gear pump 2 x
Working hydr. - hydr.line (steering)
Working hydraulics - Valve block
Working hydraulics - Mounting parts
Hydraulics - front mower /hillside
Hydraulics
hydraulics Control valve optional
Hydraulic Spring compensation optional
Hydraulic Spring compensation optional
Hydraulics cutting height optional
Hydraulics cutting height optional
Hydraulics
Hydraulic brakes
Parking brake
Tyres
Mudguard
Battery
Cab suspension /Deacon light /Horn
Cab
Cab
Cab - glazing
Rear blind /lateral blind
Cab
Control panel (roof)
Cab - Sound deadening
Air conditioning
Evaporator
Steering columm
Wear parts - driver's seat
Control box
Control switsches
Terminals and connectors
Terminals and connectors
Control box - wiring harness
Multifunction lever /Circuit board
Pedal - levelling mechanism
Wiring harness 4x5 /Wiring harnes 4x1
Wiring harness 4x3 /Wiring harnes 4x2
Wiring harness 1x4 /Wiring harnes 1x6
Wiring harness 1x7 /Wiring harnes 1x8
Wiring harness 2x6 /Wiring harnes
Wiring harness 2x7 /Wiring harnes 2x8
Wiring harness 4x4 /Wiring harnes 2x4
Distributor
Wiring Harness
Wiring Harness - cutting height
Wiring Harness
Automatic pilot
Steering axle - automatic pilot
Hydraulics - automatic pilot
Wiring harness - automatic pilot
Central lubrication
Spare parts case for central lubrication -Vogel
Fire extinguisher
P.T.O shafts -cpl.
P.T.O shafts
P.T.O shafts
P.T.O shafts
P.T.O shafts
Main Pto shaft
Double universal joint
Double universal joint
Double universal joint
Warning signs
General information labels
Label
1
2
3
4
5
5
6
7
7
8
9
9
10
12
13
14
15
16
16
16
17
18
18
19
20
21
22
23
24
24
25
25
25
25
26
26
27
27
28
29
30
33
34
35
36
37
38
39
40
41
Позиция на иллюстрации
Заводской номер детали
Название детали
1
002567100
Tine conditioner housing
2
009340520
Flange bearing-incl. bearing
3
009346180
Grooved ball bearing
4
009006580
Hex head bolt
5
009099101
Detent edged washer
6
009106420
Washer
7
009006560
Hex head bolt
8
009006360
Hex head bolt
9
009099091
Detent edged washer
10
002552862
Plate
12
009250090
Sealing plug
13
002555005
Tine rotor shaft
14
002505004
Tine axle
15
002557440
Tine-inside
16
009357160
Clamp bush
17
009087190
Locknut
18
002534711
Tine-outside
19
009057550
Threaded pin
20
009150160
Fit-in key
21
002555011
Bushing
22
009400822
Rotex-clutch
23
002566861
Reinforcement
24
009103530
Washer
25
009087580
Locknut
26
009006730
Hex head bolt
27
009099121
Detent edged washer
28
009014380
Hex head bolt
29
009103611
Washer
30
009048501
Coach bolt
33
002552422
Tine bar
34
009191050
Grease niple
35
009006140
Hex head bolt
36
009106030
Washer
37
001466052
Illumination support-front
38
002541680
Support
39
009087060
Locknut
40
009006320
Hex head bolt
41
009402181
Rotex plastic part
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
