Каталог запасных частей к технике: KRONE BIG-M-II. Cutter bar - SafeCut INSIDE - lateral Lamier -CV
1
2
3
3
4
4
5
5
6
7
8
9
10
11
12
12
12
12
13
13
14
14
14
14
15
16
17
18
18
18
18
18
19
19
19
19
20
21
22
22
23
23
24
25
26
27
28
29
30
31
31
32
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
41
41
42
42
43
43
44
45
45
45
46
46
46
47
47
48
48
49
50
51
52
53
54
55

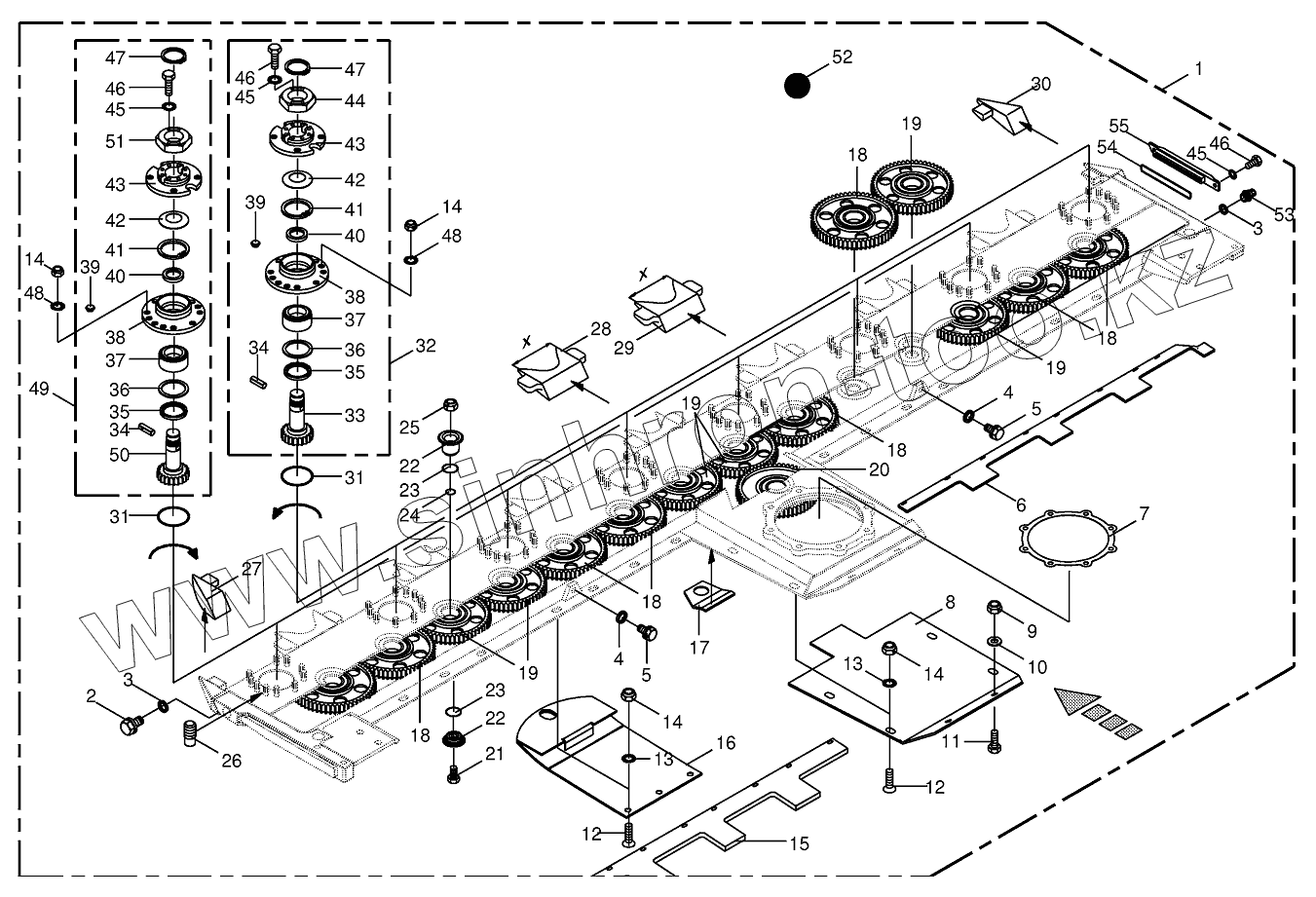

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 200308261 | Cutter bar-cpl. | |
| 2 | 009060101 | Screw plug | |
| 3 | 009377270 | Gasket ring | |
| 4 | 009377210 | Gasket ring | |
| 5 | 009060071 | Screw plug | |
| 6 | 002320070 | Wearing plate-right | |
| 7 | 002540270 | Gasket | |
| 8 | 002320621 | Wearing plate | |
| 9 | 009087580 | Locknut | |
| 10 | 009103530 | Washer | |
| 11 | 009006360 | Hex head bolt | |
| 12 | 009040631 | Countersunkscrew | |
| 12 | 009040682 | Countersunkscrew | |
| 12 | 009040622 | Countersunkscrew | |
| 13 | 009099101 | Detent edged washer | |
| 14 | 009087010 | Locknut | |
| 15 | 002320060 | Wearing plate-left | |
| 16 | 002534801 | Skid | |
| 17 | 002320600 | Wearing plate | |
| 18 | 200303760 | Spur gear | |
| 19 | 200303750 | Spur gear | |
| 20 | 200303770 | Spur gear | |
| 21 | 009003351 | Hex head bolt | |
| 22 | 002530201 | Clamping piece | |
| 23 | 009375790 | O-ring | |
| 24 | 009375780 | O-ring | |
| 25 | 009096110 | Self-locking nut | |
| 26 | 009064040 | Weld. pin | |
| 27 | 002530153 | Sheet edge-left | |
| 28 | 002320471 | Sheet edge | |
| 29 | 002535470 | Sheet edge | |
| 30 | 002530163 | Sheet edge-right | |
| 31 | 009375760 | O-ring | |
| 32 | 200307890 | Bearing housing-left | |
| 33 | 200305250 | Spur wheel shaft-left | |
| 34 | 200352860 | Dowel pin | |
| 35 | 900001860 | Radial-shaft sealing ring | |
| 36 | 009110020 | Shim ring | |
| 37 | 900001490 | Taper roller bearing | |
| 38 | 200307960 | Flange bearing | |
| 39 | 270036570 | Tapered plug | |
| 40 | 900001500 | Supporting disc | |
| 41 | 900001460 | Circlip | |
| 42 | 200305310 | Belleville spring | |
| 43 | 200307941 | Rotor hub | |
| 44 | 200305300 | HEX NUT | |
| 45 | 009099091 | Detent edged washer | |
| 46 | 009006340 | Hex head bolt | |
| 47 | 009115440 | Circlip | |
| 48 | 900001230 | Detent edged washer | |
| 49 | 200307900 | Bearing housing-right | |
| 50 | 200305260 | Spur wheel shaft-right | |
| 51 | 200305290 | Hex nut | |
| 52 | 009261010 | Oil-Id.-no.=1ltr | |
| 53 | 009198111 | Breather | |
| 54 | 009375680 | O-ring | |
| 55 | 002534214 | Cover |
