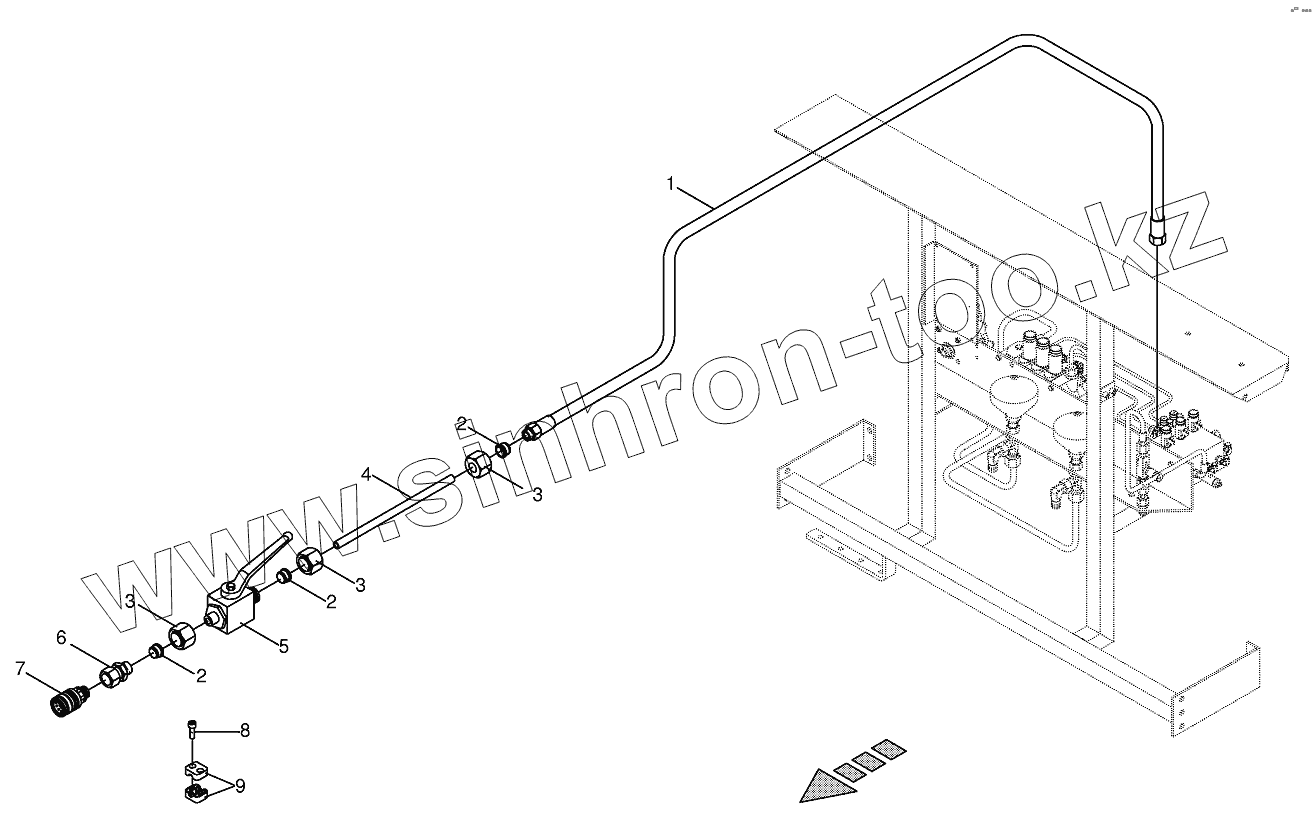

Каталог запасных частей к технике: KRONE BIG-M-I. Working hydr. - Front connection part1

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано 280CV-Q, 320CV-Q, 280CRI-Q (2013) 280CV-Q, 320CV-Q, 280CRI-Q (2013) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) AFL243RS (2013) AM 203CV, AM 243CV, AM 283CV (2018) AM 203CV, AM 243CV, AM 283CV (2018) AM 203CV, AM243CV, AM283CV (2018) AM 203CV, AM243CV, AM283CV (2018) AM 243 (2018) AM 243CV (2018) AM 243CV (2018) AM 243CV, AM283CV (2018) AM 283 (2018) AM 283CV (2018) BiG X 500 (2018) BiG X V8, BiG X V12 (2018) BIG-M-400 (2016) BIG-M-420 (2016) BIG-M-420 (2016) BIG-M-I (2016) BIG-M-I (2016) BIG-M-I (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-X-1000 (2016) BIG-X-1000 (2016) BIG-X-1100 (2016) BIG-X-480 (2016) BIG-X-480 (2017) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-530 (2016) BIG-X-530 (2017) BIG-X-580 (2016) BIG-X-580 (2017) BIG-X-600 (2016) BIG-X-600 (2016) BIG-X-600 (2016) BIG-X-630 (2016) BIG-X-630 (2017) BIG-X-650 (2010) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-700 (2010) BIG-X-700 (2013) BIG-X-700 (2013) BIG-X-700-1 (2013) BIG-X-700-1 (2013) BIG-X-700-1 (2016) BIG-X-700-1 (2016) BIG-X-700-1 (2016) BIG-X-800 (2016) BIG-X-800 (2016) BIG-X-800/1000 (2013) BIG-X-850-1 (2018) BIG-X-850-1/1100-1 (2013) BIG-X-850-1/1100-1 (2013) BIG-X-850/1100 (2013) BIG-X-V8/BIG-X-V12 (2013) BIG-X-V8/BIG-X-V12 (2013) BIG-X-V8/BIG-X-V12 (2013) Easycollect (2018) EasyCut F360M (2018) EasyFlow 300, 380 (2012) EasyFlow 3000, 3800 (2013) EasyFlow 3000, 3800 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EC 27/32 (2013) EC 28/32 (2013) EC 28/32 (2013) EC 28/32 (2013) EC 28/32CV (2013) EC 28/32CV (2013) EC 28/32CV (2013) EC 28/32M (2013) EC 28/32M (2013) EC 28/32P (2013) EC 28/32P (2013) EC 28/32P (2013) EC 28M (2013) EC 32CRI (2013) EC 32CRI (2013) EC 32CRI (2013) EC 32CV (2013) EC 360/400 (2013) EC 360/400 (2013) EC 360/400 (2013) EC 360/400 (2013) EC F280 (2018) EC F280 / F320 (2013) EC F280 M (2013) EC F280/320/360 (2013) EC F320 (2018) EC F320 M (2013) EC F320 M (2013) EC F320CV (2013) EC F320M/F360M (2013) EC F360 (2018) EC R280 (2013) EC R320 (2013) EC R360 (2013) EC R400 (2018) EC-9000 (2008) EC270CV/320CV (2013) EC280/320 (2013) EC280/320 (2013) EC280/320 (2013) EC280CV-Q/320CV-Q (2013) EC280CV/320CV (2013) EC280CV/320CV/280CR (2013) EC280CV/320CV/C280CRI (2013) EC28CV/32CV/32CV-F (2013) EC28CV/C32CV/32CV-F (2013) EC32CV/32CV-F (2013) EColl.6000,7500,6000FP (2013) EColl.6000,7500,9000,6000F (2013) EColl.6000,7500,9000,6000F/FP (2013) EColl.6000,7500,9000,6000F/FP (2013) EColl.6000-7500-9000-6000CL/JD (2013) ECollect 753, 903, 1053 (2013) ECollect753, 903, 1053 (2013) ECollect753, 903, 1053 (2013) ECR280CV/320CV (2012) KW 8.50-8 (2018) KWT 7.70-6X7, KWT 8.50-8, KWT 10.50-8X7 (2018) X-Disc 6200 (2013) X-Disc 6200 (2013)

Схема > Не выбрано Cutter bar with bearings (CV + CRI) Cutting bar with flange (CV + CRI) Cutter bar with quick coupler (CV) Cutter bar with blade fastening (CV) Cutter bar with blade fastening (CRI) Guide plate CRI High-cut skid (CV + CRI) Cover for main gear box (CV+CRI) Main gearbox and driving shaft (CV+CRI) Main gearbox and driven shaft (CV+CRI) Guards gearbox (CV+CRI) Air level (CV+CRI) Tine conditioner housing, assembled Tine conditioner housing, assembled Conditioner comb with accessories Finger rotor, assembled (CV) Lubricating line - grease (CV) Tine conditioner drive Guard for front mower beam (CV) Guard for front mower beam lh (CV) Guard for front mower beam rh (CV) Roller conditioner housing, assembled Roller conditioner housing, assembled Rh rubber rollers Lh rubber rollers Oscillating levers Lubricating line - grease (CRI) Roller conditioner drive Guard for front mower beam (CRI) Guard for front mower beam lh (CRI) Guard for front mower beam rh (CRI) Frame Steering axle installed Tyres Mudguard Lighting bracket Trailer hitch Mounting parts for central gearbox Central gearbox Tensioning device on central gearbox Tens. device on central gearbox front Belt guard located on central gearbox Belt gurd located on the rh side Belt gurd located on the lh side Rh wing arm Lh wing arm Universal joint support installed Mounting parts number of mover units Spring compensation Front auxiliary pto.stub Front arm installed (slope) Mounting for front arm (slope) Mount.parts front frame condit.housing Cantilever Clutch with accessories Silencer assembled Air filter installed Compressor (air conditioner) Fan drive Radiator - Radiator frame Cooler - cooling agent cooler Radiator - oil cooler Radiator - charge air cooler Radiator - condenser for air conditioner Suction Suction hose installed Cap platform with support Box Railing installed Leader installed Guard support front and back installed Valve guard Engine guards Radiator guards Battery guards Diesel fuel tank Inner panels - cab roof Instrument console - cab roof Control switsches Radio accessories Covers - interior light Rear view Rear view mirror Dash Dash control switsches Multiple indicators front-right-hand Steering column - upper Steering column - lower Steering column - steering wheel shaft Air conditioning Cab heater components Heating connection Individual parts for steering Air conditioning components Cooling compartment components Ventilations ducts Filter box Passenger seat Air comfort seat Cab suspension Cab roof Windshield washer Window and lining , r.h. Cab door Windshield Pedals and bracket (foot brakes) Works/beacon light / horn Parking brake Unlocking device - parking brake Speed control linkage Multifunction lever Hydraulic tank with filter Mounting for hydraulic tank Working hydraulics - valves frame Working hydraulics - accum.charg.valves Working hydraulics - valve block (3x) 3 diverter vave bloc Working hydraulics - valve block Working hydr. - hydr.line (steering) Gear pump / steering Gear pump - 2 x Working hydraulics - valve block (4 x) 4 diverter vave bloc Working hydr. - Front connection part1 Working hydr. - Front connection part2 Working hydraulics - drive Working hydraulics - hydraulic ram Work hydraulics levell.-mechan.with ram Working hydraulics - valve "freinage" Brake line - front Brake line - back Hydr.ground drive/fin.drives Hydr.ground drive/var.displ. pump Hydr.ground drive - front Hydr.ground drive/rear driving valve Hydr.ground drive - rear Hydr.ground drive/front leakage oil line Hydr.ground drive/rear leakage oil line Hydr.ground drive/pressure oil line - front Hydr.ground drive/pressure oil line - rear Hydr.ground drive Connection cable Wiring Harness 01 (engine) Wiring harnes 02.01 (lighting bracket) Wiring Harness 02.2 (Lighting rear) Wiring Harness Wiring Harness 07 (Lighting front) Wiring Harness 08 (fan) Wiring Harness Wiring Harness 10.2 Wiring Harness 11 Wiring Harness 51 Pedal - levelling mechanism Main distributor Job computer KMS Distributor (valve) P.T.O shafts GR.6 FT 34 R 1450 NM Double universal joint DG 2400 Double universal joint Gr.5 P.T.O shafts WWZ-SFT 60-50 GR Engine wearing parts Warning signs General information labels Cross conveyor with inner mouting BSS Cross conveyor with outer mouting BSS Auger hood (BSS) Buffle plate with frame (BSS) Lh finger rotor, assembled (BSS) Rh finger rotor, assembled (BSS) Lubricating line - grease (BSS) Main gearbox components (BSS) Tine conditioner drive BSS Conditioner with additional parts BSS Guard for front mower beam lh (CV) BSS Guard for front mower beam rh (CV) BSS

1

2

2

2

3

3

3

4

5

6

7

8

9

Позиция на иллюстрации	Заводской номер детали		Название детали
1	009209841		High pressure hose line
2	009210461		Cutting ring
3	009212060		Nozzle disc cap
4	002307520		Hydraulic line
5	009196030		Ball cock
6	009211601		Reducer fitting
7	009211312		Sleeve
8	009030450		Allen screw
9	009251071		Tube clamp-2 halves

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
