Вернуться на главную
Поиск
Каталоги запчастей к технике
Сельхозтехника
KRONE
BIG-M-420
Wiring Harness-lighting-back
Каталог запасных частей к технике: KRONE BIG-M-420. Wiring Harness-lighting-back
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
AGCO
Amity
CASE IH
DongFeng
Fortschritt
Foton
Franz Kleine
Gaspardo
Great Plains
KRONE
KUHN
Lemken
Lovol
MacDon
Massey Ferguson
New Holland
TIGARBO
Vaderstad
Versatile
Wirax
Агро
Агротехмаш
Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш»)
БЭМЗ
ВгТЗ
Воронежсельмаш
ВТЗ
Гомсельмаш
ДКЗ
ЗАО "Техника-сервис"
ЗиД
КЗК
Кировец-Ландтехник
Клевер
Красная Звезда
Лидагропроммаш
Лидсельмаш
ЛТЗ
Машстройхолдинг
Минитракторы
Мордовагромаш
МТЗ
Навигатор-Новое машиностроение
Нефтекамский автозавод
ПТЗ
Ремком
РСМ
Сибсельмаш
ТеКЗ
ТКЗ
ХЗТСШ
ХТЗ
ЮМЗ
Модель
Не выбрано
280CV-Q, 320CV-Q, 280CRI-Q (2013)
280CV-Q, 320CV-Q, 280CRI-Q (2013)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
AFL243RS (2013)
AM 203CV, AM 243CV, AM 283CV (2018)
AM 203CV, AM 243CV, AM 283CV (2018)
AM 203CV, AM243CV, AM283CV (2018)
AM 203CV, AM243CV, AM283CV (2018)
AM 243 (2018)
AM 243CV (2018)
AM 243CV (2018)
AM 243CV, AM283CV (2018)
AM 283 (2018)
AM 283CV (2018)
BiG X 500 (2018)
BiG X V8, BiG X V12 (2018)
BIG-M-400 (2016)
BIG-M-420 (2016)
BIG-M-420 (2016)
BIG-M-I (2016)
BIG-M-I (2016)
BIG-M-I (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-X-1000 (2016)
BIG-X-1000 (2016)
BIG-X-1100 (2016)
BIG-X-480 (2016)
BIG-X-480 (2017)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-530 (2016)
BIG-X-530 (2017)
BIG-X-580 (2016)
BIG-X-580 (2017)
BIG-X-600 (2016)
BIG-X-600 (2016)
BIG-X-600 (2016)
BIG-X-630 (2016)
BIG-X-630 (2017)
BIG-X-650 (2010)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-700 (2010)
BIG-X-700 (2013)
BIG-X-700 (2013)
BIG-X-700-1 (2013)
BIG-X-700-1 (2013)
BIG-X-700-1 (2016)
BIG-X-700-1 (2016)
BIG-X-700-1 (2016)
BIG-X-800 (2016)
BIG-X-800 (2016)
BIG-X-800/1000 (2013)
BIG-X-850-1 (2018)
BIG-X-850-1/1100-1 (2013)
BIG-X-850-1/1100-1 (2013)
BIG-X-850/1100 (2013)
BIG-X-V8/BIG-X-V12 (2013)
BIG-X-V8/BIG-X-V12 (2013)
BIG-X-V8/BIG-X-V12 (2013)
Easycollect (2018)
EasyCut F360M (2018)
EasyFlow 300, 380 (2012)
EasyFlow 3000, 3800 (2013)
EasyFlow 3000, 3800 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EC 27/32 (2013)
EC 28/32 (2013)
EC 28/32 (2013)
EC 28/32 (2013)
EC 28/32CV (2013)
EC 28/32CV (2013)
EC 28/32CV (2013)
EC 28/32M (2013)
EC 28/32M (2013)
EC 28/32P (2013)
EC 28/32P (2013)
EC 28/32P (2013)
EC 28M (2013)
EC 32CRI (2013)
EC 32CRI (2013)
EC 32CRI (2013)
EC 32CV (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC F280 (2018)
EC F280 / F320 (2013)
EC F280 M (2013)
EC F280/320/360 (2013)
EC F320 (2018)
EC F320 M (2013)
EC F320 M (2013)
EC F320CV (2013)
EC F320M/F360M (2013)
EC F360 (2018)
EC R280 (2013)
EC R320 (2013)
EC R360 (2013)
EC R400 (2018)
EC-9000 (2008)
EC270CV/320CV (2013)
EC280/320 (2013)
EC280/320 (2013)
EC280/320 (2013)
EC280CV-Q/320CV-Q (2013)
EC280CV/320CV (2013)
EC280CV/320CV/280CR (2013)
EC280CV/320CV/C280CRI (2013)
EC28CV/32CV/32CV-F (2013)
EC28CV/C32CV/32CV-F (2013)
EC32CV/32CV-F (2013)
EColl.6000,7500,6000FP (2013)
EColl.6000,7500,9000,6000F (2013)
EColl.6000,7500,9000,6000F/FP (2013)
EColl.6000,7500,9000,6000F/FP (2013)
EColl.6000-7500-9000-6000CL/JD (2013)
ECollect 753, 903, 1053 (2013)
ECollect753, 903, 1053 (2013)
ECollect753, 903, 1053 (2013)
ECR280CV/320CV (2012)
KW 8.50-8 (2018)
KWT 7.70-6X7, KWT 8.50-8, KWT 10.50-8X7 (2018)
X-Disc 6200 (2013)
X-Disc 6200 (2013)
Схема
>
Не выбрано
Per mower unit front (CV)
Cutter bar-SafeCut INSIDE-front
Blade fastening-front
Blade quick coupler-front
Crop lifter 2 parts direc of rot rh
High-cut skid/Wear skid
Tine conditioner housing/tine conditiner-front
Gearbox
Transmission part I-front
Transmission part II-front
Guard for mower beam-front
Hydraulics-front guard
Hydraulics-front guard
Swathlaying-front
Per mower unit lateral (CV)
Cutter bar-SafeCut INSIDE-lateral
Blade fastening-lateral
Blade quick coupler-lateral
Crop lifter 2 parts direc of rot rh
High-cut skid/Wear skid
Tine conditioner housing kpl.-lateral
Tine conditioner housing-lateral
Tine conditioner-lateral
Tine conditioner Lubricating line
Cover for main gear box-lateral
Main gearbox and driving shaft-lateral
Main gearbox/mower bar-lateral
Tine conditioner drive-lateral
Guard for mower beam cpl.-left/right
Auger trough-lateral
Hydraulic auger hood
Hydraulic Auger Hood
Auger-left and right
Swath width
Auger gear
Chequered plate-front/lateral
Per mower unit front (CRI)
Per mower unit lateral (CRI)
Cutter bar-SafeCut INSIDE-front/lateral
Blade fastening-front/lateral
Blade quick coupler-front/lateral
Crop lifter 2 parts direc of rot rh
Guide plate
Roller cond. housing/Roller-front
Protecting cup
CRI-Roller
Main gearbox-front
Gearbox-front
Gearbox-front/lateral
Front guard
Swathlaying-front
Lubricating line-front
Accessories-front
Roller cond. housing/Roller-lateral
Anbauteile roller cond. housing-lateral
Swath doors-lateral
CRI-Roller
Main gearbox-left
T-Gearbox-right
Gearbox-lateral
Auger trough-lateral
Hydraulic auger hood
Hydraulic Auger Hood
Auger-left and right
Auger gear-right and left
Hydraulic swathing deflector
Hydraulics-swathing deflector
Actuation console-right
Accessories-Geabox-left
Guard for mower beam-right
Guard for mower beam-left
Guard-right
Guard-left
Lubricating line/grease-lateral
High-cut skid/Wear skid
Air level-front/lateral
Front wing cpl.
Cantilever-left/right
Control lever-left
Control lever-right
Mounting parts number of mover units (930001-938100)
Mounting parts number of mover units (938101-942000)
Belt gurd located-left/right
Portal cpl.
Linked spring compensation-Tension spring
Separated spring compensation
Separated spring compensation-Tension spring
Front auxiliary pto.stub
Auxiliary gearbox
Tensioning device on auxiliary gearbox
Frame/axle
Steering axle installed
Platform-right
Battery box
Cab access-left
Front guard/Lighting
Valve guard
Panelling frame/Cladding-front top
Engine guards
Panelling frame/Cladding-back top
Radiator guards
Lighting bracket/trailer hitch
Ladder-back
Diesel fuel tank
Diesel fuel pipe
Diesel engine
Exhaust gas equipment
Clutch
Condenser for air conditioner
Condenser for air conditioner-mounting parts
Condenser for air conditioner-swivel unit
Passive rotor
Engine piping
Hose line cooling water assembl.
Air filter
Sieve drum
Sieve drum drive
Suction fan
Ventilator wheel/Drive
Hydraulic tank
Variable disqlacement pump
Hydr.ground drive-var.displ. pump
Hydr.ground drive/Cam lobe mot.- front
Hydr.ground drive/Cam lobe mot.- back
Hydr.ground drive/pressure oil line-front
Hydr.ground drive/pressure oil line-middle
Hydr.ground drive/pressure oil line-rear
Hydraulics-sieve drive
Working hydr.-hydr.line (steering)
Working hydr.-hydr.line (steering)
Working hydraulics-Valve block
Working hydraulics-Mounting parts
Hydraulics-front mower/hillside
Hydraulics
Hydraulics-control valve
Hydraulics-cutting height
Hydraulics
Hydraulic brakes
Parking brake
Tyres
Mudguard
Cab-frame/mounting parts
Cab-control panel (roof)/circuit board
Cab-glazing
Glass wiper
Steering columm
Wear parts-driver's seat-standard and activo
Wear parts-driver's seat-standard
Wear parts-driver's seat-activo
Cab-Sound deadening
Cab-roof
Headlight-xenon/LED-optional
Cab-rear covering/passenger seat
Cab-drawer
Air conditioning
Evaporator
Control box mounting parts
Control box/controls eletronic-part I
Control box/controls eletronic-part II
Relay box
Wiring harness-control box/cab
Wiring harness-panel
Wiring loom-cab
Wiring Harness-front
Wiring Harness-lateral left
Wiring Harness-lateral right
Wiring Harness-valve block
Wiring loom-hydraulic pumps
Wiring Harness-engine
Wiring Harness-spring compensation
Wiring Harness-cutting height
Wiring Harness-lighting-front
Wiring Harness-lighting-back
Several wiring looms
Battery and ground cable
Fire extinguisher (930001-940000)
Fire extinguisher (940001-942000)
Additional parts Italy (930001-942000)
Video system
Steering axle-automatic pilot
Hydraulics-automatic pilot
Electronics-automatic pilot
Central lubrication
Central lubrication
Pump for central lubrication
Spare parts case for central lubrication-BEKA MAX
P.T.O shafts-cpl.
P.T.O shafts
P.T.O shafts
P.T.O shafts
Main Pto shaft
Double universal joint
Double universal joint
Double universal joint
Warning signs
General information labels
Label-Circuit board
1
2
3
4
5
6
7
7
7
8
8
9
10
11
Позиция на иллюстрации
Заводской номер детали
Название детали

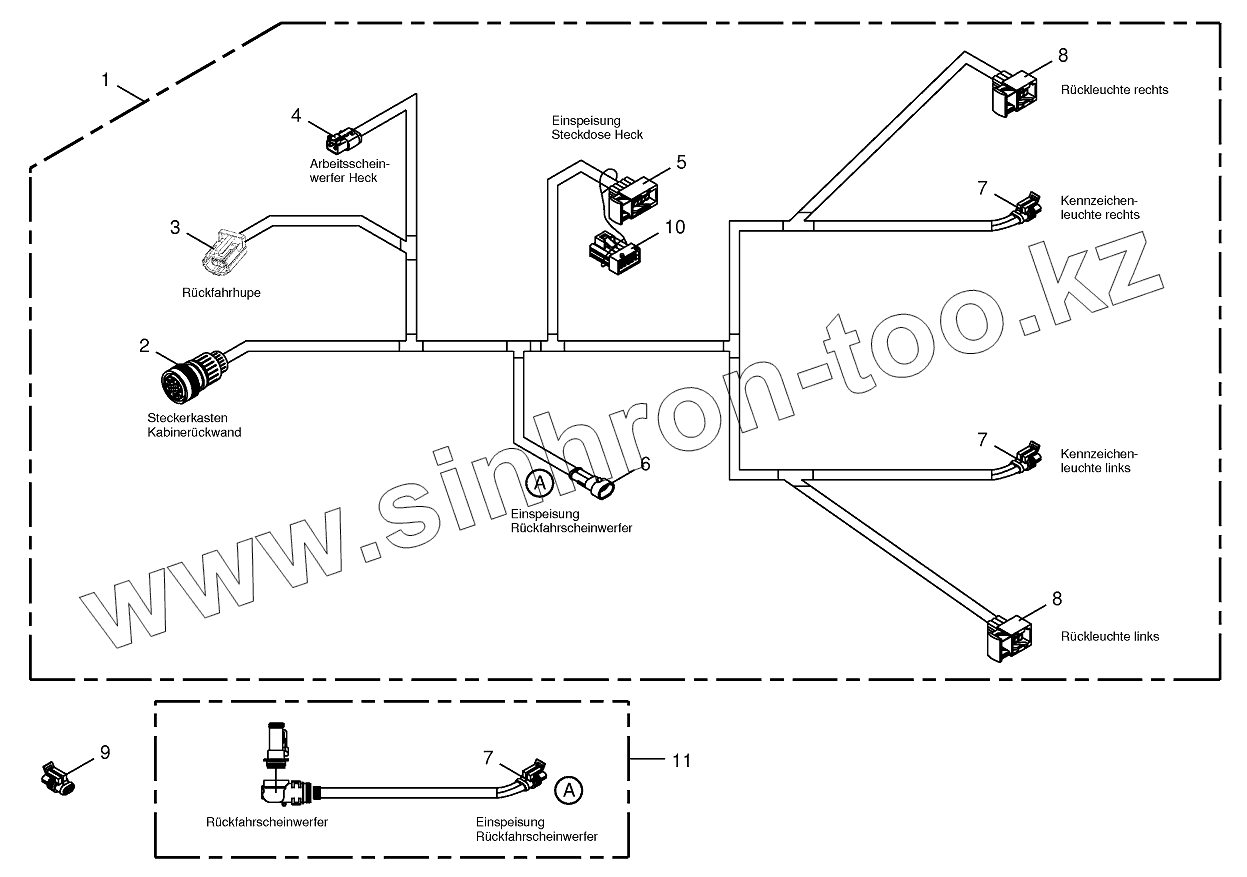

1
200828191
Cable harness lighting 20X4
2
003024311
Plug Bu HDP20 KPL-31-pole
3
003031050
Plug-2-pole
4
003031200
Plug-2-pole
5
003030730
Bushing housing-10-pole
6
003023560
Coupling socket-2-pole
7
003023510
Plug-2-pole
8
003030820
Bushing housing-6-pole
9
003029830
Blind bushing casing-2-pole
10
200807480
Blind-pin casing-10-pole
11
200813080
Adapter wire
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
/172.gif)
