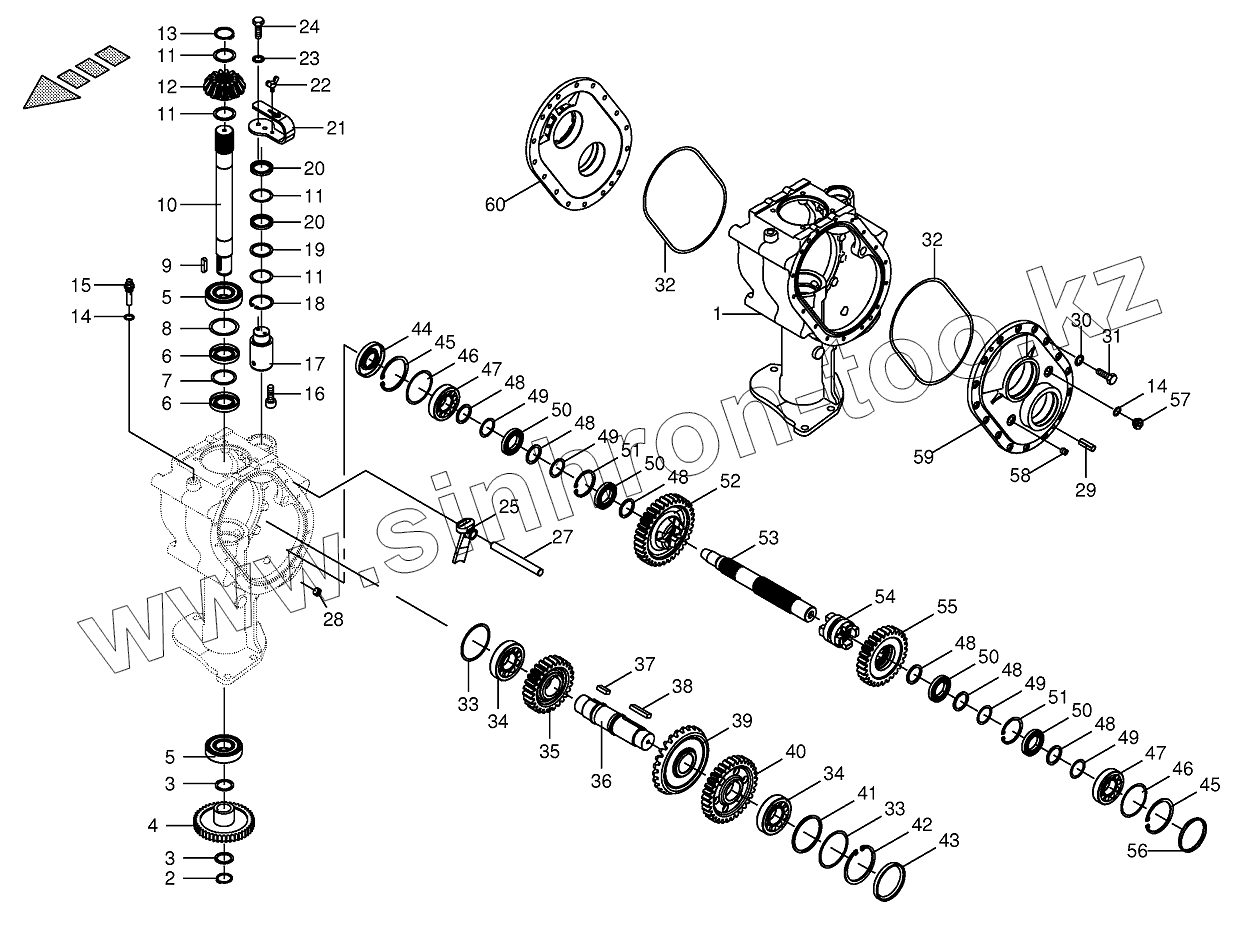

Каталог запасных частей к технике: KRONE BIG-M-420. Transmission part II-front

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
3
3
3
3
4
5
5
6
6
7
8
8
8
8
9
10
11
11
11
11
11
11
11
11
12
13
14
14
15
16
17
18
19
20
20
21
22
23
24
25
27
28
29
30
31
32
32
33
33
33
33
34
34
35
36
37
38
39
40
41
42
43
44
45
45
46
46
46
46
46
46
47
47
48
48
48
48
48
48
49
49
49
49
49
50
50
50
50
51
51
52
53
54
55
56
57
58
59
60
Позиция на иллюстрации Заводской номер детали Название детали
1 200381801 Shifting gear housing large right
2 009115410 Circlip
3 009111320 Shim ring
3 009111300 Shim ring
3 009111361 Shim ring
3 009111340 Shim ring
3 009111330 Shim ring
4 200152300 Spur gear
5 009305680 Grooved ball bearing
6 009363590 Radial-shaft sealing ring
7 009111640 Shim ring
8 009109700 Shim ring
8 009109720 Shim ring
8 009109730 Shim ring
8 009109740 Shim ring
9 009151220 Fit-in key
10 200315521 Drive shaft
11 009108770 Shim ring
11 009108990 Shim ring
11 009108940 Shim ring
11 009108930 Shim ring
11 009108980 Shim ring
12 200314421 Bevel gear
13 009115491 Circlip
14 009377270 Gasket ring
15 009198290 Breather
16 009030731 Allen screw
17 200314400 Excentric
18 009116530 Circlip
19 009107321 Supporting disc
20 900012660 Radial-shaft sealing ring
21 002561133 Actuating lever
22 009061320 Winged screw
23 009099081 Detent edged washer
24 009006140 Hex head bolt
25 200145650 Shift finger
27 200314390 Operation pole
28 009060401 Screw plug
29 009157130 Cyl. pin
30 009099070 Detent edged washer
31 009006360 Hex head bolt
32 900026230 O-ring seal
33 009111650 Shim ring
33 009111660 Shim ring
33 009111680 Shim ring
34 009321380 Taper roller bearing
35 200308241 Spur wheel
36 200314350 Shaft
37 009150350 Fit-in key
38 009152120 Fit-in key
39 200308220 Bevel wheel
40 200308280 Spur gear
41 009107470 Supporting disc
42 009116100 Circlip
43 009252081 Sealing cap
44 900020130 Radial-shaft sealing ring
45 009116800 Circlip
46 009109430 Shim ring
46 009109450 Shim ring
46 009109470 Shim ring
46 009109440 Shim ring
46 009109460 Shim ring
47 009321370 Taper roller bearing
48 009107300 Supporting disc
49 009108900 Shim ring
49 009108910 Shim ring
50 009303691 Grooved ball bearing
51 009116640 Circlip
52 200308270 Spur gear
53 200314360 Conditioner drive shaft
54 200314380 Control dog
55 200308290 Spur gear
56 009252002 Sealing cap
57 009198230 Oil sight glass
58 009060101 Screw plug
59 200381920 Gear cover drive
60 200381930 Gear cover drive
