Каталог запасных частей к технике: KRONE BIG-M-420. Hydraulics-cutting height
/135.gif)
1
1
1
1
1
2
3
3
3
3
3
3
3
3
4
4
5
5
5
6
6
6
6
6
7
8
9
10
11
12
13
13
13
13
14
14
14
14
15
15
15
15
17
17
18
19
19
20
20
21
22
23
24
25
26
26
27
28
29
30
31
32
32
33
33
34
35
36
36
37
37
38
38
39
40
40
40
41
42
42
43
44
45
46
46
47
48
49

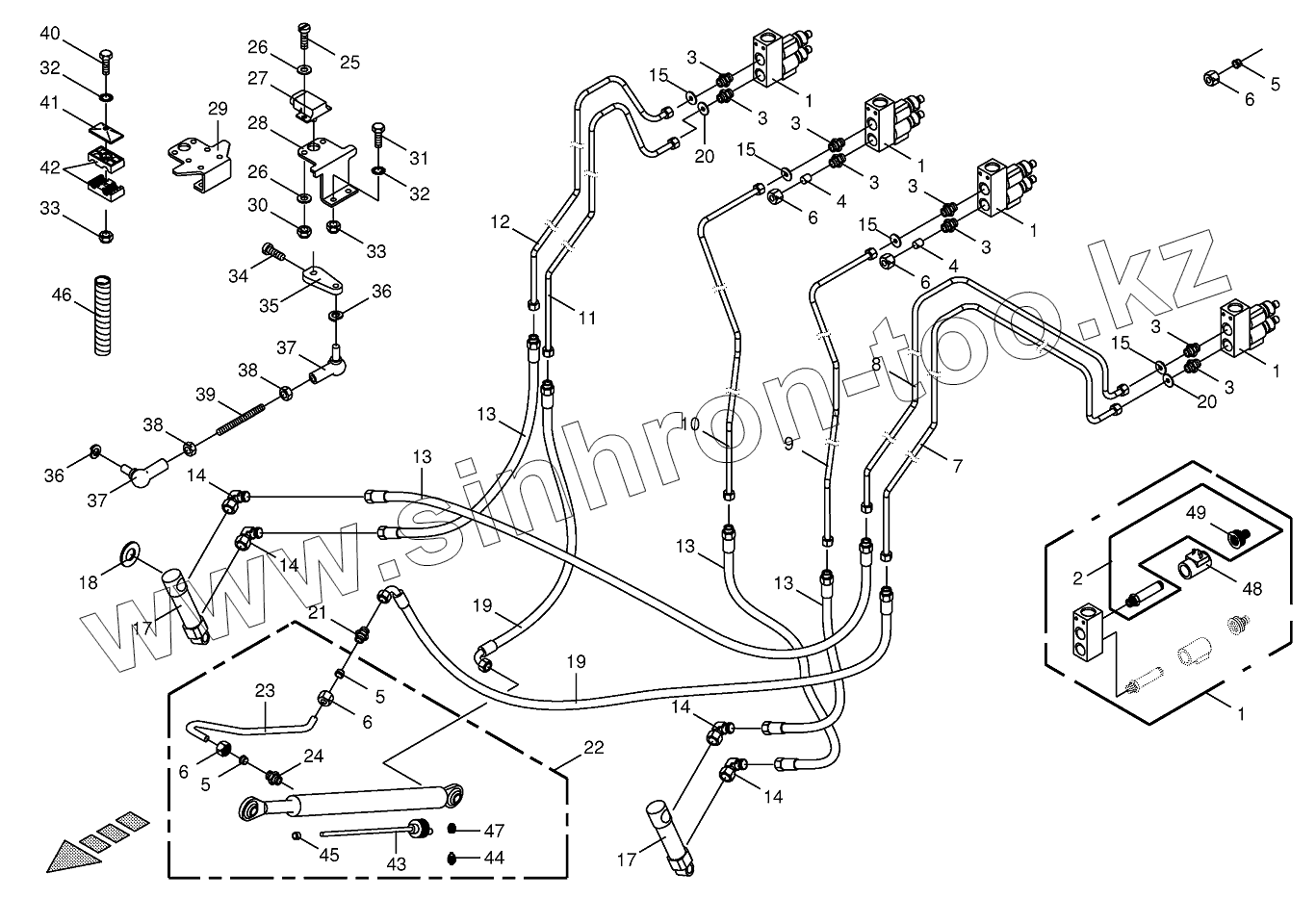

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 270181110 | 270181110 | Spacer sleeve | |
| 900027310 | 900027310 | O-ring | |
| 270005441 | 270005441 | Sealing set | |
| 009106531 | 009106531 | Washer | |
| 270128640 | 270128640 | Ball joint eye | |
| 009188170 | 009188170 | Sealing set | |
| 1 | 009190010 | Control bloc | |
| 2 | 009190690 | 2/2-Directional-control valve | |
| 3 | 009210602 | Male connector | |
| 4 | 009193000 | Locking cone w. O-ring | |
| 5 | 009210461 | Cutting ring | |
| 6 | 009212060 | Nozzle disc cap | |
| 7 | 200139310 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 8 | 200139290 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 9 | 200139240 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 10 | 200139330 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 11 | 200139270 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 12 | 200139250 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 13 | 009200653 | Hyd. hose | |
| 14 | 009210671 | Angle lug | |
| 15 | 270006670 | Throttling disc | |
| 17 | 002333532 | Hydraulic cylinder | |
| 18 | 009105141 | Washer | |
| 19 | 270107751 | High pressure | |
| 20 | 009193210 | Throttling disc | |
| 21 | 009210541 | Connector | |
| 22 | 009185540 | Hydraulic cylinder | |
| 23 | 009193440 | Hydraulic line | |
| 24 | 009208180 | Male connector | |
| 25 | 009034271 | Allen screw | |
| 26 | 009103250 | Washer | |
| 27 | 003031460 | Hall sensor | |
| 28 | 200100620 | Sensor support | |
| 29 | 200100610 | Sensor support | |
| 30 | 009080061 | Hex nut | |
| 31 | 009006140 | Hex head bolt | |
| 32 | 009099081 | Detent edged washer | |
| 33 | 009087060 | Locknut | |
| 34 | 009034220 | Allen screw | |
| 35 | 200100650 | Lever | |
| 36 | 009100310 | Spring washer | |
| 37 | 009271140 | Link | |
| 38 | 009082071 | Hex nut | |
| 39 | 003526941 | Coupler | |
| 40 | 009002010 | Hex head bolt | |
| 40 | 009010100 | Hex head bolt | |
| 40 | 009010481 | Hex head bolt | |
| 41 | 009251340 | Cover plate | |
| 42 | 009251050 | Tube clamp-2 halves | |
| 42 | 009251080 | Tube clamp-2 halves | |
| 43 | 270034141 | position sensor | |
| 44 | 270034160 | Plug-5-pole | |
| 45 | 270034150 | Position solenoid | |
| 46 | 270039740 | Spiral strip -ld.-no.=1m | |
| 46 | 009404780 | Spiral strip-Id.-no.= 1m | |
| 47 | 270053640 | Plug retainer | |
| 48 | 009190700 | Solenoid coil | |
| 49 | 270069670 | Emergency hand operation |
