Каталог запасных частей к технике: KRONE BIG-M-420. Hydr.ground drive/pressure oil line-rear
/127.gif)
1
2
3
3
3
3
3
4
4
5
6
7
8
8
8
9
9
9
10
11
12
13
14
15
16
17
19
20
21
21
22
23
23
23
24
24
25
26
27
28
29
30
30
31
31
32
32
33
33
34
34
35
35
36
37
38
39
40
40
40
40
40
40
40
40
41
41
41
41
42
42
42
42
43
43
44
45
45
46
46
48
48
49

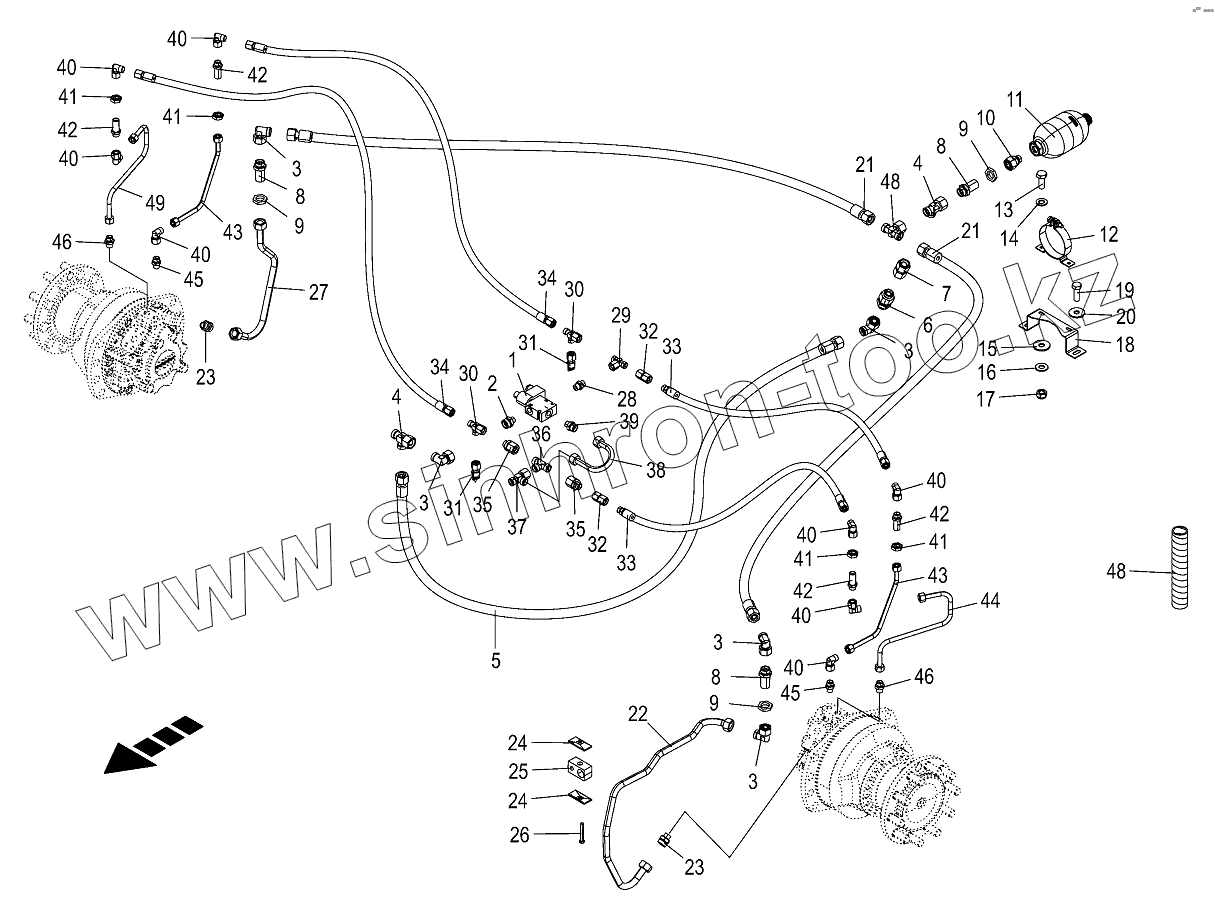

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 009190280 | 009190280 | 3/2-Directional-control valve | |
| 009190700 | 009190700 | Solenoid coil | |
| 1 | 009190340 | 3/2-Diverter vave bloc | |
| 2 | 900014390 | Double-ended union | |
| 3 | 009211730 | Angle lug | |
| 4 | 009212380 | Adjustable L connection | |
| 5 | 270176120 | Hyd. hose 2 SN 16 x 320 DKOL DKOL | |
| 6 | 009211690 | Non-return valve | |
| 7 | 002307470 | Double nipple | |
| 8 | 009212510 | Straight 2-way connector | |
| 9 | 009210951 | Hex nut-low form | |
| 10 | 900030680 | Screw-in support | |
| 11 | 270078421 | Hyd. accumulator | |
| 12 | 270149010 | Clamp with Console | |
| 13 | 009006140 | Hex head bolt | |
| 14 | 009104130 | Washer | |
| 15 | 009106030 | Washer | |
| 16 | 009099081 | Detent edged washer | |
| 17 | 009087060 | Locknut | |
| 19 | 009006370 | Hex head bolt | |
| 20 | 900001210 | Washer | |
| 21 | 270097110 | Hyd. hose | |
| 22 | 200191290 | Hyd.-line | |
| 23 | 009211440 | Male connector | |
| 24 | 009251440 | Cover plate | |
| 25 | 009251430 | Tube clamp-2 halves | |
| 26 | 009014250 | Hex head bolt | |
| 27 | 200191280 | Hyd.-line | |
| 28 | 009199181 | Male connector | |
| 29 | 009210771 | T-connector | |
| 30 | 009210791 | Adjustable L connection | |
| 31 | 009208680 | Connector f.mini-test equipm. | |
| 32 | 002307430 | Double nipple | |
| 33 | 009210281 | High pressure hose line | |
| 34 | 009210161 | High pressure hose line | |
| 35 | 009211601 | Reducer fitting | |
| 36 | 009210731 | T-connector | |
| 37 | 009210750 | Adjustable L connection | |
| 38 | 002332400 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 39 | 009197611 | Male connector | |
| 40 | 009210671 | Angle lug | |
| 41 | 009085242 | Hex nut-low form | |
| 42 | 009210871 | Straight 2-way connector | |
| 43 | 200136720 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 44 | 200149880 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 45 | 009210602 | Male connector | |
| 46 | 009209011 | Male connector | |
| 47 | 270039740 | Spiral strip -ld.-no.=1m | |
| 48 | 900000320 | T connector | |
| 49 | 200149870 | Hydraulic line-incl. nozzle disc cap, cutting ring |
