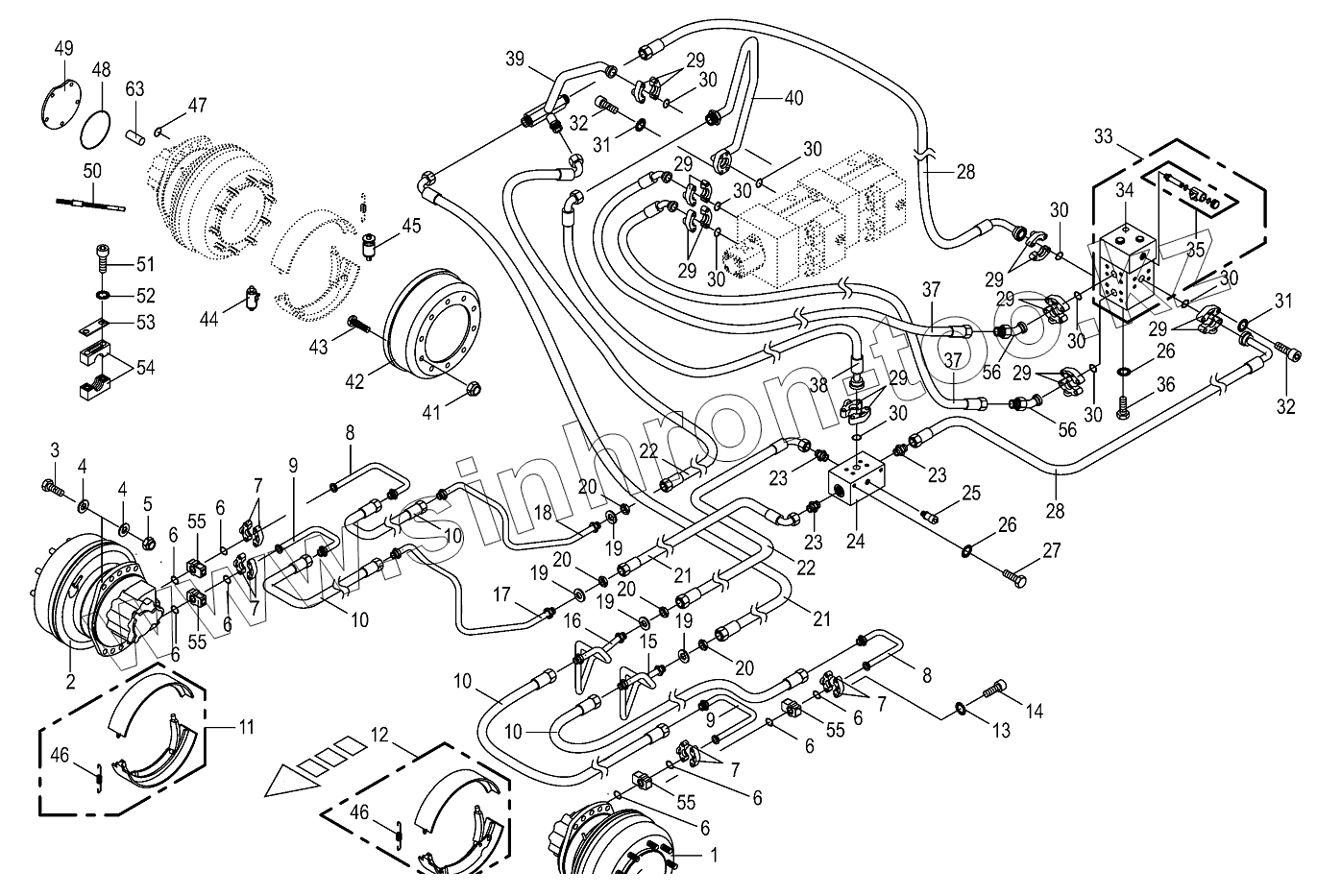

Каталог запасных частей к технике: KRONE BIG-M-420. Hydr.ground drive/Cam lobe mot.- front

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
4
5
6
6
6
6
6
6
6
6
7
7
7
7
8
8
9
9
10
10
10
10
11
12
13
14
15
16
17
18
19
19
19
19
20
20
20
20
21
21
22
22
23
23
23
24
25
26
26
27
28
28
29
29
29
29
29
29
29
29
30
30
30
30
30
30
30
30
30
31
31
32
32
32
33
34
35
36
37
37
38
39
40
41
42
43
44
45
46
46
47
48
49
50
51
52
53
54
55
55
55
55
56
56
63
Позиция на иллюстрации Заводской номер детали Название детали
009191610 009191610 Sealing set
270083810 270083810 Pressure spring
009106090 009106090 Washer
009191240 009191240 Gasket ring
1 002315522 Wheel motor-left, cpl.
2 002315512 Wheel motor-right, cpl.
3 009012171 Hex head bolt
4 009105122 Washer
5 009087210 Locknut
6 270039230 Flange gasket
7 009208601 SAE-flange section-2 halves
8 002327130 Soldered joint
9 002327140 Soldered joint
10 009200851 Hyd. hose
11 270009710 Brake shoe-left
12 270009290 Brake shoe-right, incl. spring
13 009099070 Detent edged washer
14 900012960 Allen screw
15 002333251 Soldered joint-R
16 002333240 Soldered joint
17 002333521 Soldered joint
18 002333510 Soldered joint-R
19 009103340 Washer
20 009197450 Hex nut
21 009200861 Hyd. hose
22 009200640 High pressure hose line
23 009197831 Male connector
24 002326622 High pressure hydraulic modulation block
25 003024731 Pressure sensor
26 009099101 Detent edged washer
27 009006530 Hex head bolt
28 009197840 High pressure hose line
29 009208611 SAE-flange section-2 halves
30 270039240 Flange gasket
31 009099110 Detent edged washer
32 009031431 Allen screw
32 900004730 Allen screw
33 002319382 Hp-ganged valve
34 002334510 Head rinse valve
35 009387280 Magnetic steering hub
36 009006530 Hex head bolt
37 270054850 High pressure hose line
38 009197731 High pressure hose line
39 200121050 Tag block
40 200119790 Solder piece
41 900012500 Nut
42 009190600 Brake drum-10 hole
43 009191180 Wheel pin
44 009190580 Wheel brake cylinder
45 009405430 Autom. adjuster
46 009190610 Spring set
47 009375740 O-ring
48 009375730 O-ring
49 009190510 Cover
50 009190590 Brake cable
51 009014460 Hex head bolt
52 009099091 Detent edged washer
53 009251251 Cover plate
54 009251541 Tube clamp-2 halves
55 270062740 SAE intermediate flange
56 270055120 SAE-flange adapter
63 270131690 Undersize piston A32193S
