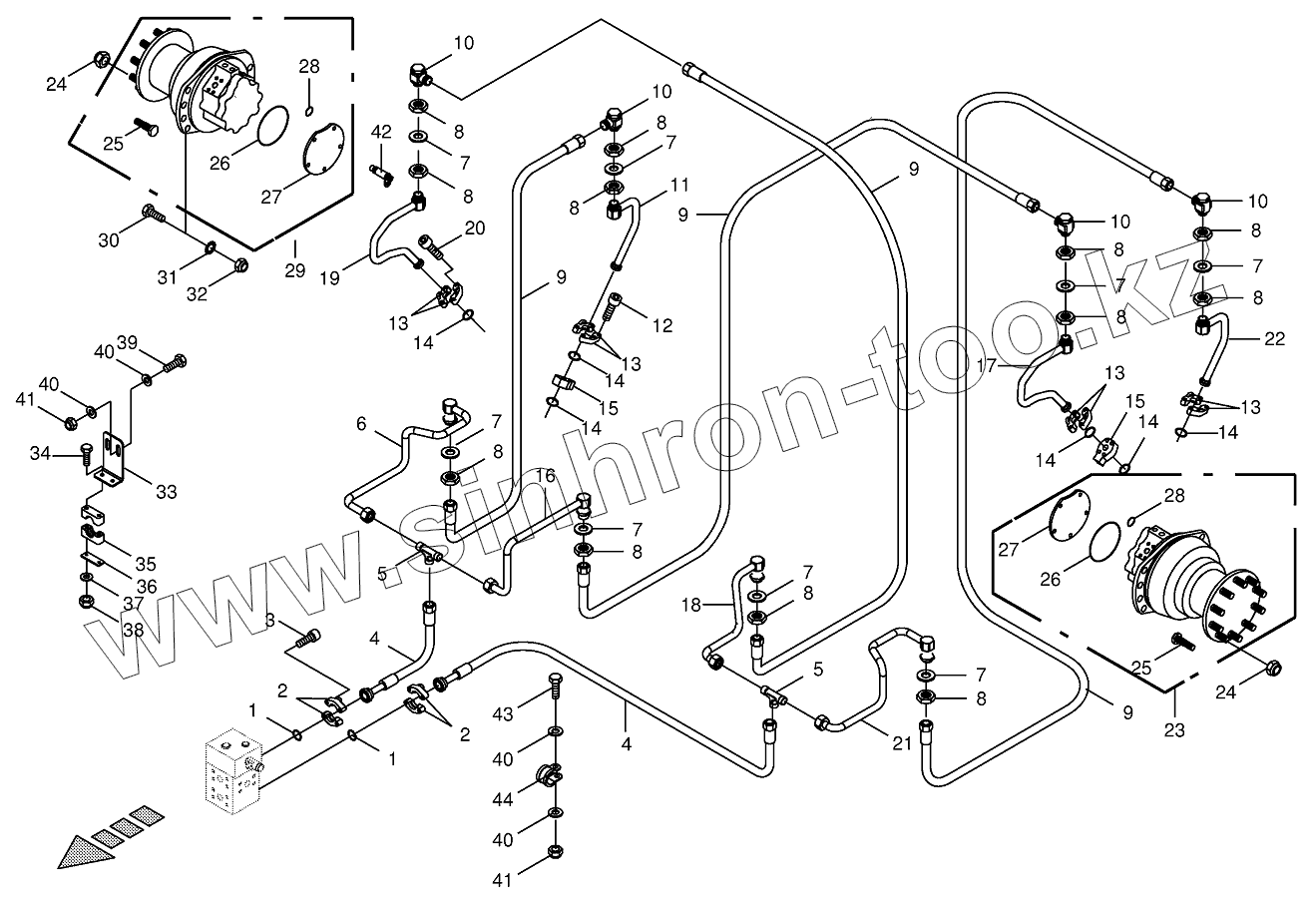

Каталог запасных частей к технике: KRONE BIG-M-420. Hydr.ground drive/Cam lobe mot.- back
/124.gif)
1
1
2
2
3
4
4
5
5
6
7
7
7
7
7
7
7
7
8
8
8
8
8
8
8
8
8
8
8
8
9
9
9
9
10
10
10
10
11
12
13
13
13
13
14
14
14
14
14
14
15
15
16
17
18
20
21
21
22
23
24
24
25
25
26
26
27
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
40
40
40
41
41
42
43
44
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 009103511 | 009103511 | Washer | |
| 009106030 | 009106030 | Washer | |
| 009099081 | 009099081 | Detent edged washer | |
| 270093260 | 270093260 | Fastening kit T4-rotation sensor | |
| 270132680 | 270132680 | Gasket set swivell screw-fitt | |
| 1 | 270039240 | Flange gasket | |
| 2 | 009208611 | SAE-flange section-2 halves | |
| 3 | 009031431 | Allen screw | |
| 4 | 270054840 | High pressure hose line | |
| 5 | 900012630 | T-reduction | |
| 6 | 270057630 | Tag block-back right | |
| 7 | 009103340 | Washer | |
| 8 | 009197450 | Hex nut | |
| 9 | 270056420 | High pressure hose line | |
| 10 | 900030140 | Swing fixture | |
| 11 | 270053970 | Solder piece | |
| 12 | 900012960 | Allen screw | |
| 13 | 009208601 | SAE-flange section-2 halves | |
| 14 | 270039230 | Flange gasket | |
| 15 | 270054880 | SAE intermediate flange | |
| 16 | 270057600 | Tag block-left front | |
| 17 | 270053870 | Solder piece | |
| 18 | 270057620 | Tag block-right front | |
| 19 | 270053880 | Solder piece | |
| 20 | 009031091 | Allen screw | |
| 21 | 270057610 | Tag block-back left | |
| 22 | 270053960 | Solder piece | |
| 23 | 270054890 | Wheel motor-left | |
| 24 | 900012500 | Nut | |
| 25 | 009401621 | Wheel pin | |
| 26 | 009375730 | O-ring | |
| 27 | 009190510 | Cover | |
| 28 | 009375740 | O-ring | |
| 29 | 270054900 | Wheel motor-right | |
| 30 | 009015040 | Heх head bolt | |
| 31 | 009099131 | Detent edged washer | |
| 32 | 009087210 | Locknut | |
| 33 | 200150780 | Plate holder | |
| 34 | 900001760 | Hex head bolt | |
| 35 | 009251031 | Tube clamp-2 halves | |
| 36 | 009251450 | Cover plate | |
| 37 | 009099061 | Detent edged washer | |
| 38 | 009087041 | Locknut | |
| 39 | 009002590 | Hex head bolt | |
| 40 | 009104130 | Washer | |
| 41 | 009087060 | Locknut | |
| 42 | 270071420 | Speed Sensor | |
| 43 | 009006140 | Hex head bolt | |
| 44 | 009240550 | Tube clip w. rubber |
