  5. Control box mounting parts

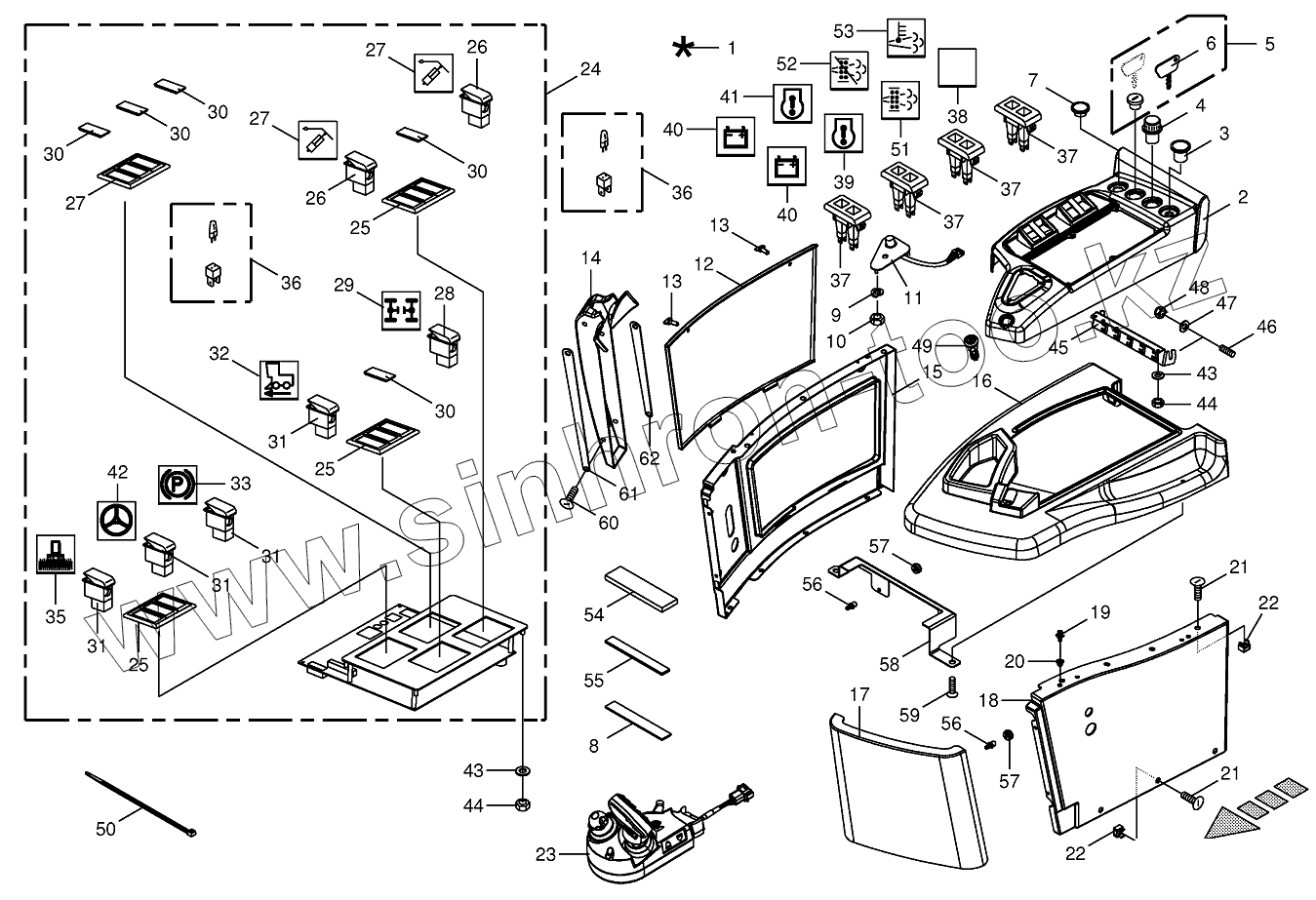

Каталог запасных частей к технике: KRONE BIG-M-420. Control box mounting parts

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
21
22
22
23
24
25
25
25
26
26
27
27
27
28
29
30
30
30
30
30
31
31
31
31
32
33
35
36
36
36
37
37
37
37
38
39
40
40
41
42
43
43
44
44
45
46
47
48
49
50
51
52
53
54
55
56
56
57
57
58
59
60
61
62
Позиция на иллюстрации Заводской номер детали Название детали
200160790 200160790 Thenar plating
1 200167172 Operating console cpl.
2 200169500 Storage shell top
3 200803390 Cigar lighter-socket
4 003026490 Cigar lighter
5 003026560 Ignition switch
6 003033490 Ignition key
7 003011580 Blind plug
8 270109630 Аnti-сrеаking bеlt 12mm width
9 009100310 Spring washer
10 009082071 Hex nut
11 003039831 Incremental giver-with feeler
12 200293110 Service hatch-right
13 200267070 Turn look
14 200273180 Cover
15 200262760 Cladding-right
16 200262781 Depot-middle
17 200262750 Maintenance door-front
18 200262720 Cladding-left
19 200266710 Spherical pin
20 200266720 Rubber support
21 009052301 Coach bolt
22 009095470 Nut
23 200190250 Multifu. joystick CAN w. SW tilted BiG M
24 200840631 Operation unit console with software
25 003027100 Frame
26 003025260 Switch-ON- OFF
27 200805630 Switch symbol
28 003028050 Switch
29 003028191 Switch symbol
30 003026530 Cover
31 003027030 Switch-6-pole
32 003028172 Switch symbol
33 003028181 Switch symbol
35 003028141 Switch symbol
36 003021070 Lamp socket with bulb
36 003038580 Lamp socket with bulb
37 200831630 Signal lamp without orifice
38 003031400 Cover
39 003028211 Switch symbol
40 003028201 Switch symbol
41 200829570 Switch symbol signal dev. “engine fault”
42 003028331 Switch symbol
43 009104111 Washer
44 009082080 Hex nut
45 200267050 Traction relief
46 009057480 Threaded pin
47 009106030 Washer
48 009087060 Locknut
49 200284550 Lock
50 009226711 Cable band
51 200829580 Switch symbol signal dev. “DPF”
52 200829600 Switch symbol signal dev. “DPF lock.”
53 200829590 Switch symbol signal dev. “HEST”
54 009401920 Self-adhesive sealing strip-Id.-no.= 1m
55 009383030 Sealing strip-Id.-no.= 1m
56 900015780 Ball pin
57 900015790 Clutch
58 200291920 Support
59 009050002 Coach bolt
60 900005580 Coach bolt
61 200282870 Rubber sheet
62 200282880 Rubber sheet
