  5. Main gearbox and driving shaft-lateral

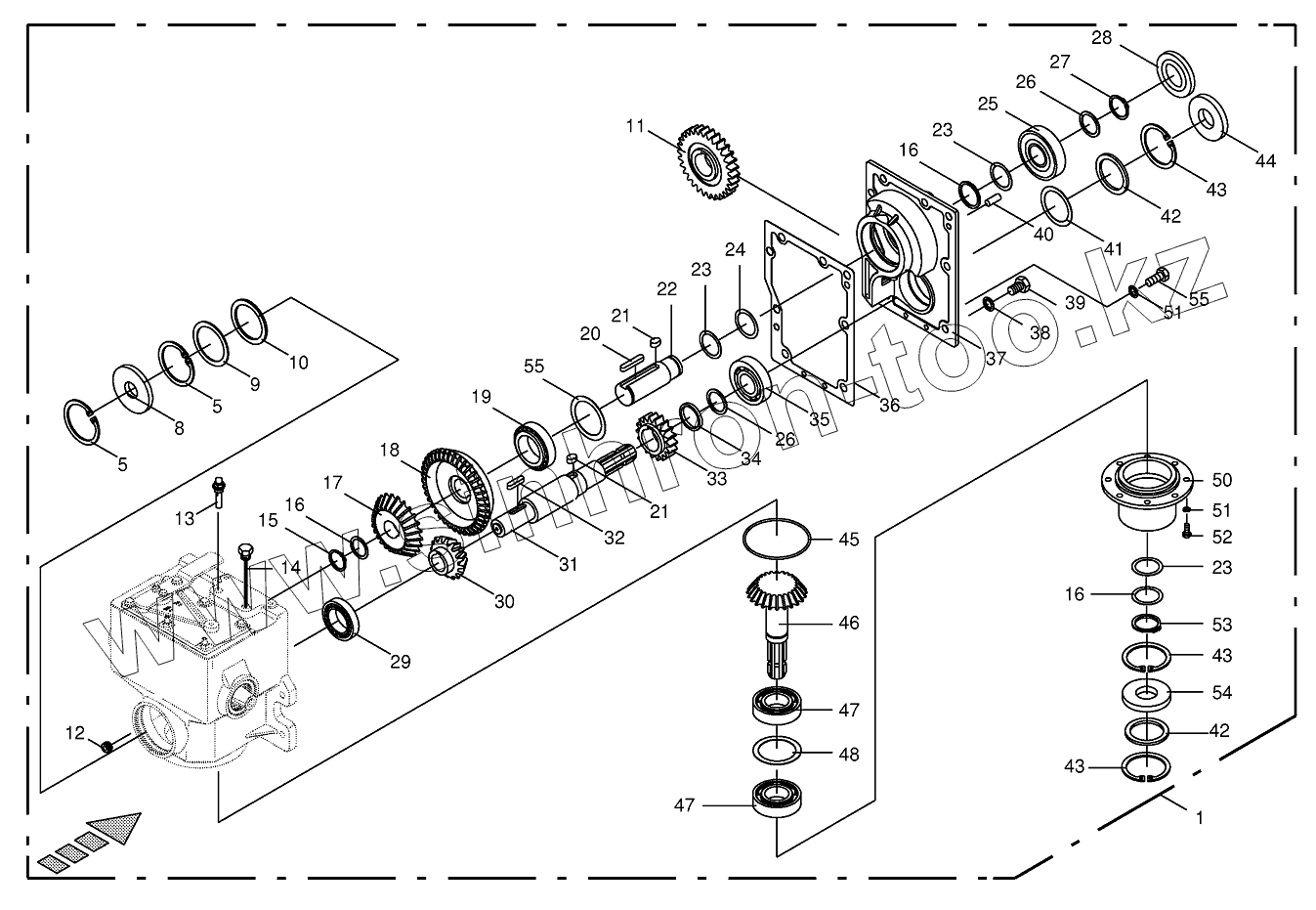

Каталог запасных частей к технике: KRONE BIG-M-420. Main gearbox and driving shaft-lateral

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
5
5
8
9
9
9
10
11
12
13
14
15
16
16
16
17
18
19
20
21
21
22
23
23
23
23
23
23
23
24
25
26
26
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
39
40
41
41
41
42
42
43
43
43
44
45
46
47
47
48
48
48
48
50
52
53
54
55
55
55
55
Позиция на иллюстрации Заводской номер детали Название детали
1 002303905 Main gearbox-cpl.
5 009116910 Circlip
8 900018300 Radial-shaft sealing ring
9 009108480 Shim ring
9 009108490 Shim ring
9 009108511 Shim ring
10 009107160 Supporting disc
11 002303941 Spur gear
12 009060390 Screw plug
13 009198290 Breather
14 002304742 Oil level dipstick
15 009115530 Circlip
16 009107353 Supporting disc
17 002303950 Bevel wheel
18 002303970 Bevel wheel
19 009321810 Taper roller bearing
20 009150100 Fit-in key
21 009150350 Fit-in key
22 002303841 Gearbox shaft
23 009109051 Shim ring
23 009109040 Shim ring
23 009109030 Shim ring
23 009109020 Shim ring
23 009109000 Shim ring
24 009109150 Shim ring
25 009301690 Grooved ball bearing
26 009108990 Shim ring
26 009108980 Shim ring
26 009108940 Shim ring
27 009115491 Circlip
28 009252081 Sealing cap
29 009321110 Taper roller bearing
30 002303920 Bevel wheel
31 002303860 Drive shaft
32 009153560 Fit-in key
33 002303930 Spur gear
34 009107321 Supporting disc
35 009301680 Grooved ball bearing
36 002303992 Gasket
37 002303785 Gearbox cover
38 009099121 Detent edged washer
39 009003351 Hex head bolt
39 009006740 Hex head bolt
40 009157000 Cyl. pin
41 009109740 Shim ring
41 009109730 Shim ring
41 009109720 Shim ring
42 009107440 Supporting disc
43 009116800 Circlip
44 900019810 Radial-shaft sealing ring
45 009375900 O-ring
46 002303910 Pinion shaft
47 009321090 Taper roller bearing
48 009109470 Shim ring
48 009109460 Shim ring
48 009109450 Shim ring
48 009109440 Shim ring
50 002303870 Gearbox cover
52 009006340 Hex head bolt
53 009115540 Circlip
54 900018330 Radial-shaft sealing ring
55 009101020 Shim ring
55 009101010 Shim ring
55 009101000 Shim ring
