  5. Hydr.ground drive/pressure oil line-middle

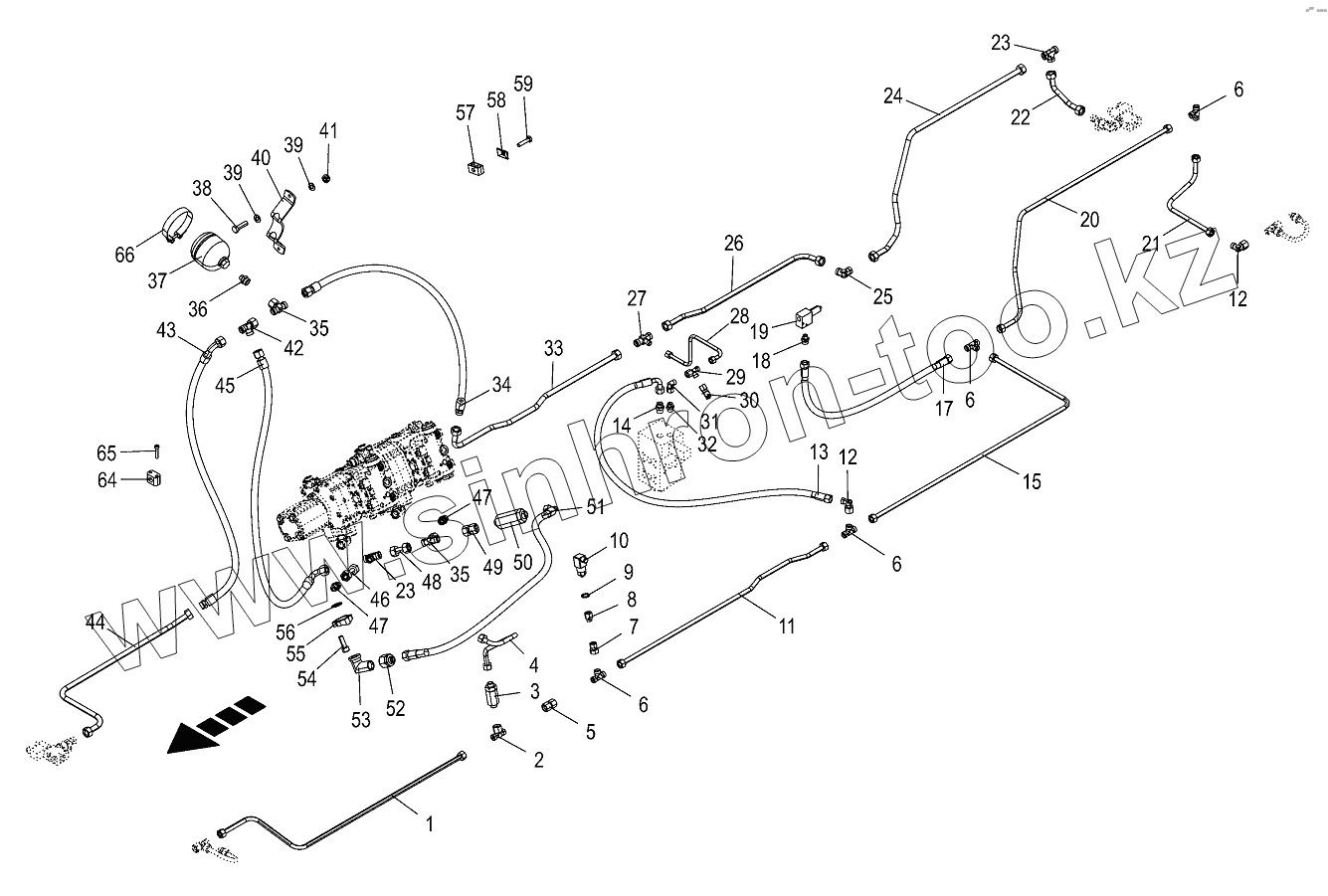

Каталог запасных частей к технике: KRONE BIG-M-420. Hydr.ground drive/pressure oil line-middle

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
6
6
6
7
8
9
10
11
12
12
13
14
15
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
37
38
39
39
40
41
42
43
44
45
46
47
47
48
49
50
51
52
53
54
55
56
57
57
57
57
58
59
64
65
66
Позиция на иллюстрации Заводской номер детали Название детали
1 002335840 Hydraulic line-incl. nozzle disc cap, cutting ring
2 009209500 T connector
3 009191690 High pressure filter
4 002337210 Hydraulic line-incl. nozzle disc cap, cutting ring
5 002307440 Double nipple
6 009210731 T-connector
7 270062710 Reducer fitting
8 009199550 Unscrewing connection
9 009377171 Gasket ring
10 200804010 Pressure switch-on
11 200291050 Hydraulic line-incl. nozzle disc cap, cutting ring
12 009210651 Angle lug
13 009209822 High pressure hose line
14 009209111 Male connector
15 002332410 Hydraulic line-incl. nozzle disc cap, cutting ring
17 009210352 High pressure hose line
18 009197611 Male connector
19 270025390 Pressure control valve
20 200131680 Hydraulic line-incl. nozzle disc cap, cutting ring
21 200150210 Hydraulic line-incl. nozzle disc cap, cutting ring
22 200191330 Hyd.-line
23 009211750 T-connector
24 200191270 Hyd.-line
25 009211720 Elbow union
26 200191260 Hyd.-line
27 270039750 T-reduction
28 200191300 Hyd.-line
29 009210791 Adjustable L connection
30 009208680 Connector f.mini-test equipm.
31 009210671 Angle lug
32 009209011 Male connector
33 200191250 Hydraulic line
34 270176110 Hyd. hose
35 900000320 T connector
36 009211440 Male connector
37 009196070 Pressure accumulator
38 009006380 Hex head bolt
39 009104140 Washer
40 002312090 Accumulator support
41 009087580 Locknut
42 009212380 Adjustable L connection
43 270168780 Hyd. hose
44 200191240 Hydraulic line
45 270151410 Hyd. hose
46 200117180 Hydraulic line-incl. nozzle disc cap, cutting ring
47 009211741 Male connector
48 200117200 Hydraulic line-incl. nozzle disc cap, cutting ring
49 002307470 Double nipple
50 009191700 High pressure filter
51 270024480 High pressure hose line
52 009196590 Reducer fitting
53 009208530 SAE-flange adapter
54 009031082 Allen screw
55 009208571 SAE-flange section-2 halves
56 270039240 Flange gasket
57 009251050 Tube clamp-2 halves
57 009251080 Tube clamp-2 halves
57 009251600 Tube clamp-2 halves
57 009251580 Tube clamp-2 halves
58 009251340 Cover plate
59 009010421 Hex head bolt
62 009014250 Hex head bolt
64 009251021 Tube clamp-2 halves
65 009030480 Allen screw
66 009240300 Joint bolt-hose clamp
