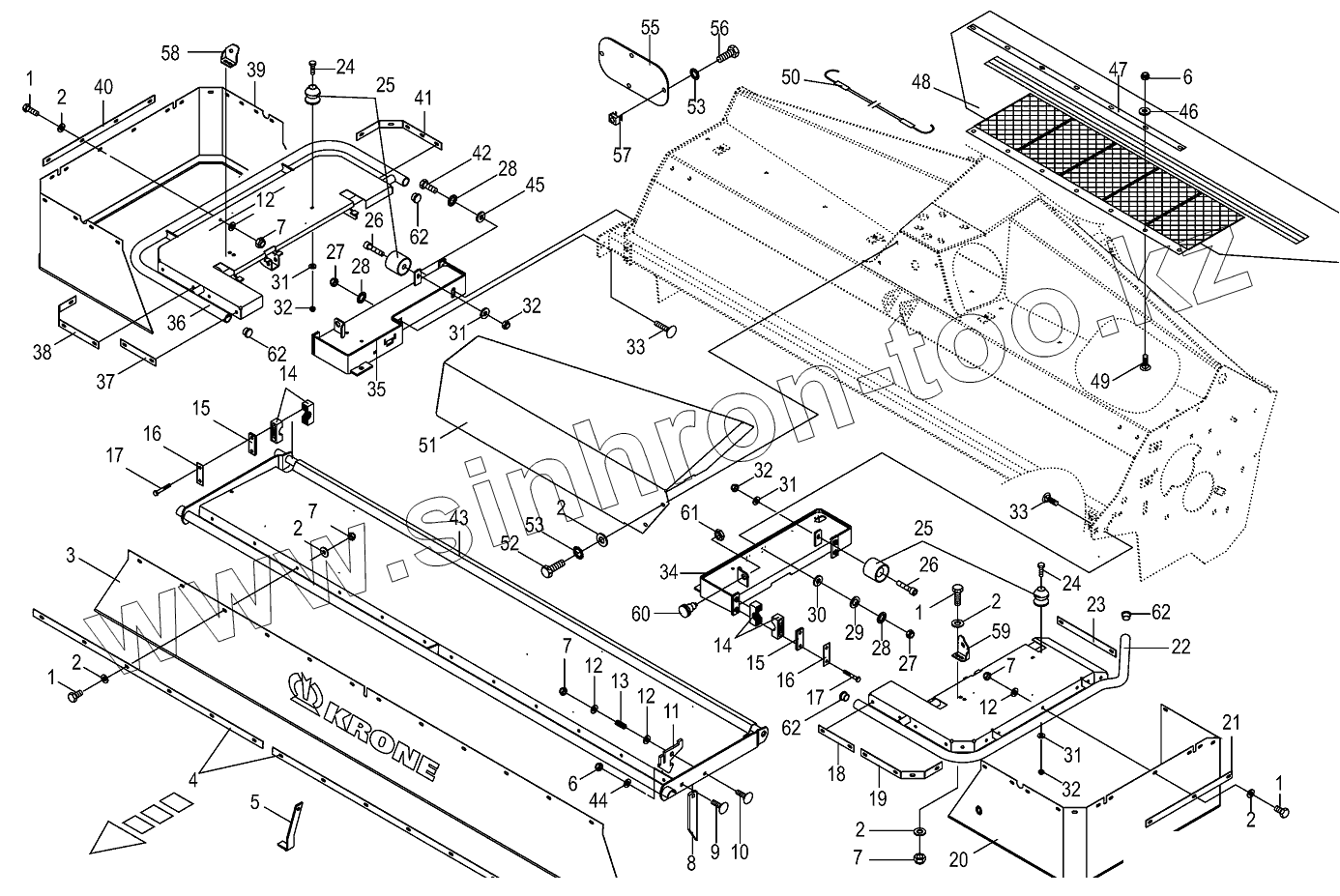

Каталог запасных частей к технике: KRONE BIG-M-420. Guard for mower beam-front
/11.gif)
1
1
1
1
2
2
2
2
2
2
2
3
4
5
6
6
7
7
7
7
7
8
9
10
11
12
12
12
12
13
14
14
15
15
16
16
17
17
18
19
20
21
22
23
24
24
25
25
26
26
27
27
28
28
28
29
30
31
31
31
31
32
32
32
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
51
52
53
53
55
56
57
58
59
60
61
62
62
62
62
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 900001910 | Hex head bolt-special | |
| 2 | 900005850 | Washer | |
| 3 | 200145390 | Plastic cloth-front | |
| 4 | 200106581 | Clamping strap | |
| 5 | 200107171 | Key cutter bar protection | |
| 6 | 900005890 | Locknut | |
| 7 | 900001920 | Locknut-special | |
| 8 | 002512621 | Support | |
| 9 | 009047451 | Coach bolt | |
| 10 | 009048141 | Соасh bоlt | |
| 11 | 002563542 | Ratchet | |
| 12 | 900005880 | Washer | |
| 13 | 002749490 | Pressure spring | |
| 14 | 270141540 | Pipe clamp | |
| 15 | 009251300 | Cover plate | |
| 16 | 002508510 | Locking plate | |
| 17 | 009014350 | Hex head bolt | |
| 18 | 002554412 | Clamping strap | |
| 19 | 200321960 | Clamping strap | |
| 20 | 200322021 | Protecting skirt-left | |
| 21 | 200321970 | Clamping strap | |
| 22 | 200144380 | Guard-left | |
| 23 | 200321980 | Clamping strap | |
| 24 | 009010281 | Hex head bolt | |
| 25 | 002508311 | Clamp and buffer | |
| 26 | 009030451 | Allen screw | |
| 27 | 009087190 | Locknut | |
| 28 | 009099121 | Detent edged washer | |
| 29 | 009105122 | Washer | |
| 30 | 009103310 | Washer | |
| 31 | 009103511 | Washer | |
| 32 | 009087041 | Locknut | |
| 33 | 009047080 | Coach bolt | |
| 34 | 200144630 | Guard console-left | |
| 35 | 200144742 | Guard console right welded BM420 | |
| 36 | 200144770 | Guard-right | |
| 37 | 002554412 | Clamping strap | |
| 38 | 002553312 | Clamping strap | |
| 39 | 200145350 | Plastic cloth-right | |
| 40 | 002553292 | Clamping strap | |
| 41 | 002553303 | Clamping strap | |
| 42 | 009006740 | Hex head bolt | |
| 43 | 200144853 | Guard front mowing unit front welded | |
| 44 | 009105061 | Washer | |
| 45 | 009103620 | Washer | |
| 46 | 900005870 | Washer | |
| 47 | 002566601 | Clamping strap | |
| 48 | 002320231 | Plastic cloth-incl. expander rope | |
| 49 | 900005860 | Coach bolt | |
| 50 | 002567070 | Expander rope | |
| 51 | 200145140 | Guard-right | |
| 51 | 200145240 | Guard-left | |
| 52 | 009006160 | Hex head bolt | |
| 53 | 009099081 | Detent edged washer | |
| 55 | 002584531 | Cover plate | |
| 56 | 009006120 | Hex head bolt | |
| 57 | 009095470 | Nut | |
| 58 | 200135390 | Closure tongue-right | |
| 59 | 200135360 | Closure tongue-left | |
| 60 | 270054180 | Stop bolt | |
| 61 | 900013960 | Hex nut-low form | |
| 62 | 270056910 | Ribbed plug |
