Каталог запасных частей к технике: KRONE BIG-M-420. Control box/controls eletronic-part I
/157.gif)
1
2
3
4
4
4
4
4
5
5
5
5
5
5
5
6
6
6
7
8
9
9
10
10
10
10
11
12
13
14
15
15
16
16
16
16
16
16
17
17
18
18
18
19
20
20
20
20
20
20
21
22
23
23
24
25
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
41
42
43
44
45
46
47
48
49
50
51
52
53
54
54
55
56
57
57
58
59
60
61
62
63
64
65
66
67
68

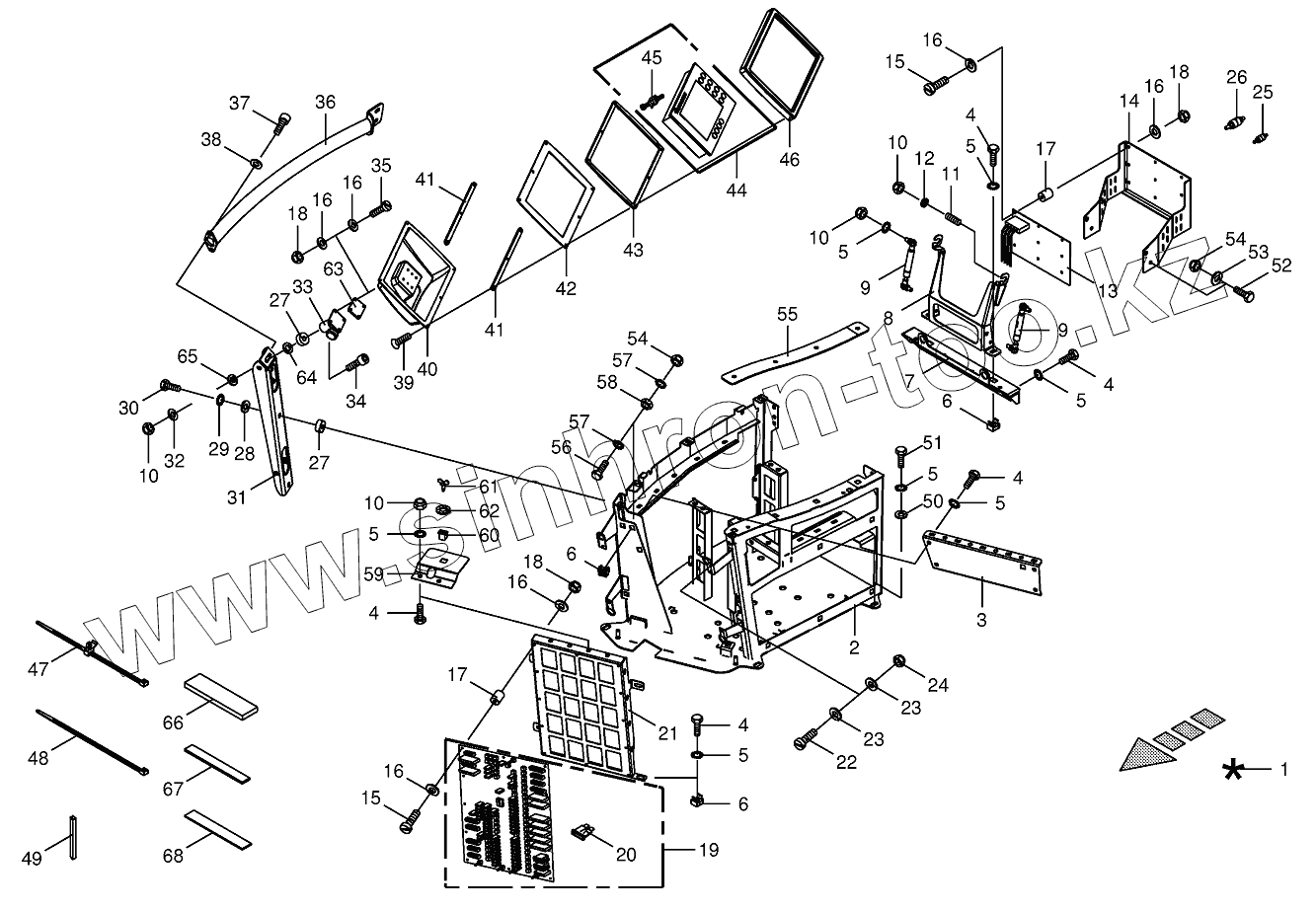

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 200806070 | 200806070 | Battery | |
| 200841810 | 200841810 | Transit insulator | |
| 200841800 | 200841800 | Transit insulator | |
| 200805290 | 200805290 | GAL-module | |
| 1 | 200167173 | Operating console cpl assembl BM 420 CAT | |
| 2 | 200262631 | Substructure | |
| 3 | 200266850 | Traverse | |
| 4 | 009006120 | Hex head bolt | |
| 5 | 009099081 | Detent edged washer | |
| 6 | 009095470 | Nut | |
| 7 | 200268981 | Contrefiche intermediaire | |
| 8 | 200266940 | Support | |
| 9 | 270057010 | Gas spring | |
| 10 | 009087060 | Locknut | |
| 11 | 009057480 | Threaded pin | |
| 12 | 200267060 | Bushing | |
| 13 | 200800111 | Potential distributor circuit board | |
| 14 | 200282560 | Support | |
| 15 | 009034220 | Allen screw | |
| 16 | 009103250 | Washer | |
| 17 | 009242020 | Rubber pad | |
| 18 | 009087180 | Locknut | |
| 19 | 200805521 | Circuit board | |
| 20 | 003020760 | Flat fuse | |
| 20 | 003021960 | Flat fuse | |
| 20 | 003018560 | Flat fuse | |
| 20 | 003021940 | Flat fuse | |
| 20 | 003020740 | Flat fuse | |
| 20 | 003019770 | Flat fuse | |
| 21 | 200266830 | Support | |
| 22 | 009037450 | Allen screw | |
| 23 | 009105001 | Washer | |
| 24 | 009087020 | Locknut | |
| 25 | 200800400 | Passage isulator | |
| 26 | 200800410 | Passage isulator | |
| 27 | 200266860 | Spacing washer | |
| 28 | 009103530 | Washer | |
| 29 | 009099091 | Detent edged washer | |
| 30 | 009006370 | Hex head bolt | |
| 31 | 200163480 | EMV monitor rail support | |
| 32 | 009103660 | Washer | |
| 33 | 270057040 | Ball joint support | |
| 34 | 009030781 | Allen screw | |
| 35 | 009034271 | Allen screw | |
| 36 | 200266890 | Rail | |
| 37 | 009030731 | Allen screw | |
| 38 | 009104130 | Washer | |
| 39 | 900022730 | sunk screw | |
| 40 | 200266740 | Display hood | |
| 41 | 200268960 | Spacer | |
| 42 | 200266750 | Retainer | |
| 43 | 200267030 | Reinforcement | |
| 44 | 200840771 | 20 084 077 1 | |
| 45 | 200808530 | Fastening hook | |
| 46 | 200266730 | Front frame | |
| 47 | 270057770 | Cable band-with clip | |
| 48 | 009226711 | Cable band | |
| 49 | 009251560 | Edge protection-Id.-no.= 1m-black | |
| 50 | 900005850 | Washer | |
| 51 | 009006160 | Hex head bolt | |
| 52 | 009006070 | Hex head bolt | |
| 53 | 009104111 | Washer | |
| 54 | 009087041 | Locknut | |
| 55 | 200293270 | Rubber sheet | |
| 56 | 009002391 | Hex head bolt | |
| 57 | 009099061 | Detent edged washer | |
| 58 | 009082080 | Hex nut | |
| 59 | 200291900 | Support | |
| 60 | 270001330 | Quick coupler | |
| 61 | 270152910 | Screw lock 85-12-460-16 | |
| 62 | 270001320 | Circlip | |
| 63 | 200162340 | Isolator Plate | |
| 64 | 200162310 | Isolator counterdisc ball head | |
| 65 | 200162330 | Isolator centring disc ball head | |
| 66 | 009401920 | Self-adhesive sealing strip-Id.-no.= 1m | |
| 67 | 009383030 | Sealing strip-Id.-no.= 1m | |
| 68 | 270109630 | Аnti-сrеаking bеlt 12mm width |
