Каталог запасных частей к технике: KRONE BIG-M-420. Cab access-left
/94.gif)
1
2
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
6
6
6
6
6
6
7
8
8
8
8
8
8
9
10
11
11
12
13
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
34
35
35
36
36
37
38
39
40
41
42
43
44
45
46
47
47
48
49
50
51
52
53

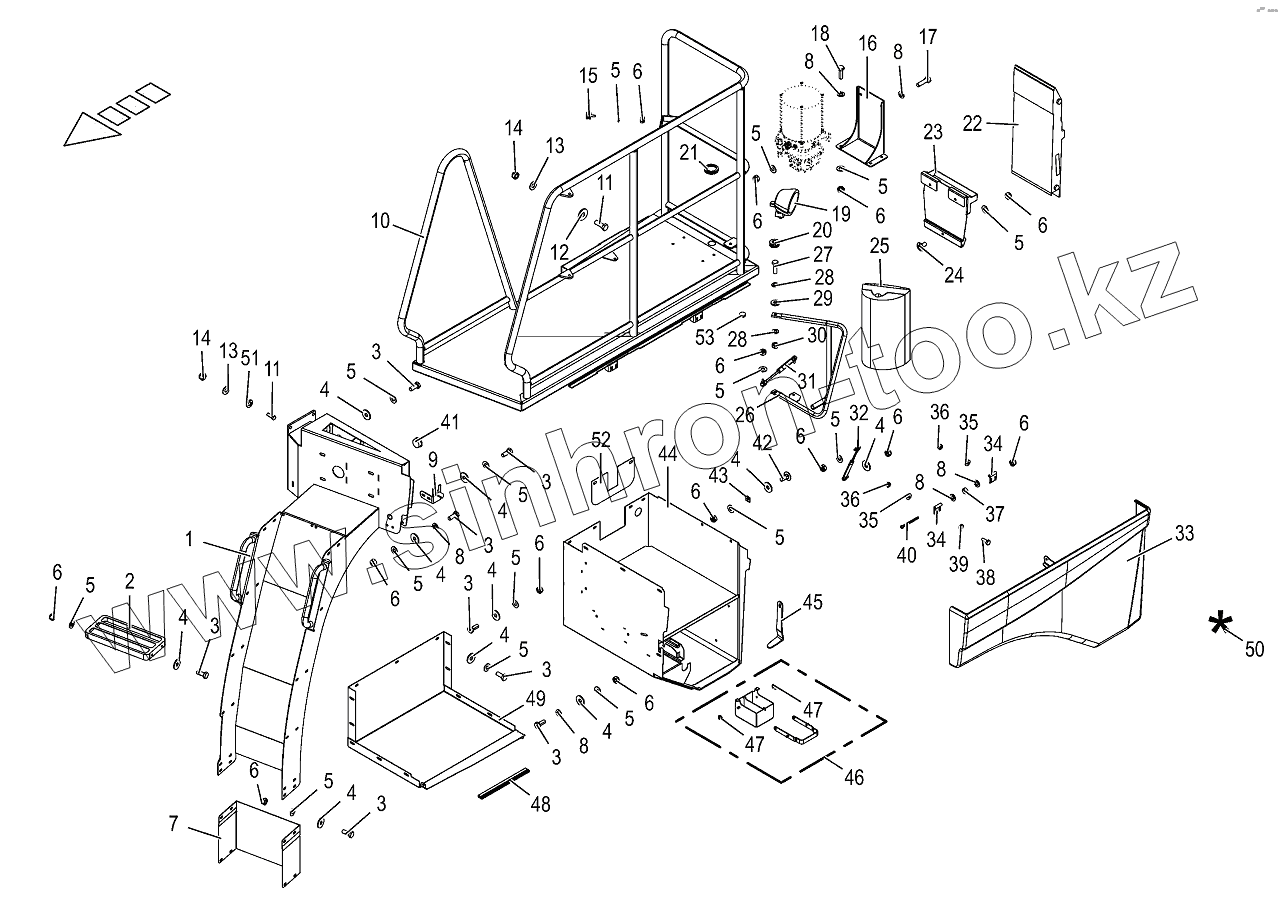

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 270164480 | 270164480 | Cover plug | |
| 270164490 | 270164490 | Cover for mirror | |
| 1 | 200139501 | Ladder | |
| 2 | 270016090 | Support draw bar | |
| 3 | 009006140 | Hex head bolt | |
| 4 | 009106030 | Washer | |
| 5 | 009099081 | Detent edged washer | |
| 6 | 009087060 | Locknut | |
| 7 | 200144450 | Ladder extension | |
| 8 | 009104130 | Washer | |
| 9 | 200139530 | Support | |
| 10 | 200141122 | Platform | |
| 11 | 009006570 | Hex head bolt | |
| 12 | 009106090 | Washer | |
| 13 | 009099101 | Detent edged washer | |
| 14 | 009087010 | Locknut | |
| 15 | 009242270 | Rubber pad | |
| 16 | 200151710 | Support | |
| 17 | 009006170 | Hex head bolt | |
| 18 | 009006160 | Hex head bolt | |
| 19 | 009246880 | Bulb | |
| 20 | 009242080 | Cable bushing | |
| 21 | 009242240 | Cable bushing | |
| 22 | 270007770 | Drop-type sprag | |
| 23 | 200160440 | Wheel chock support | |
| 24 | 009052301 | Coach bolt | |
| 25 | 270011780 | Rear view mirror-left | |
| 26 | 200103770 | Mirror support | |
| 27 | 009006380 | Hex head bolt | |
| 28 | 009104140 | Washer | |
| 29 | 009103611 | Washer | |
| 30 | 009087580 | Locknut | |
| 31 | 009390090 | Gas spring | |
| 32 | 002746090 | Gas spring | |
| 33 | 200138800 | Storage compartment flap | |
| 34 | 002743754 | Hinge | |
| 35 | 009099061 | Detent edged washer | |
| 36 | 009087041 | Locknut | |
| 37 | 002150040 | Bushing | |
| 38 | 009006070 | Hex head bolt | |
| 39 | 009104111 | Washer | |
| 40 | 900000530 | Allen screw | |
| 41 | 009250090 | Sealing plug | |
| 42 | 009047312 | Coach bolt | |
| 43 | 003367351 | Holding plate | |
| 44 | 200141071 | Storage compartment | |
| 45 | 200107171 | Key cutter bar protection | |
| 46 | 200139580 | Blade box | |
| 47 | 009115900 | Lock washer | |
| 48 | 009386951 | Rubber profile-Id.-no.= 1m | |
| 49 | 200141010 | Rear panel | |
| 50 | 270063970 | Repairing set for plastics-green | |
| 51 | 009105061 | Washer | |
| 52 | 200171080 | Guard plate | |
| 53 | 009250290 | Sealing plug |
