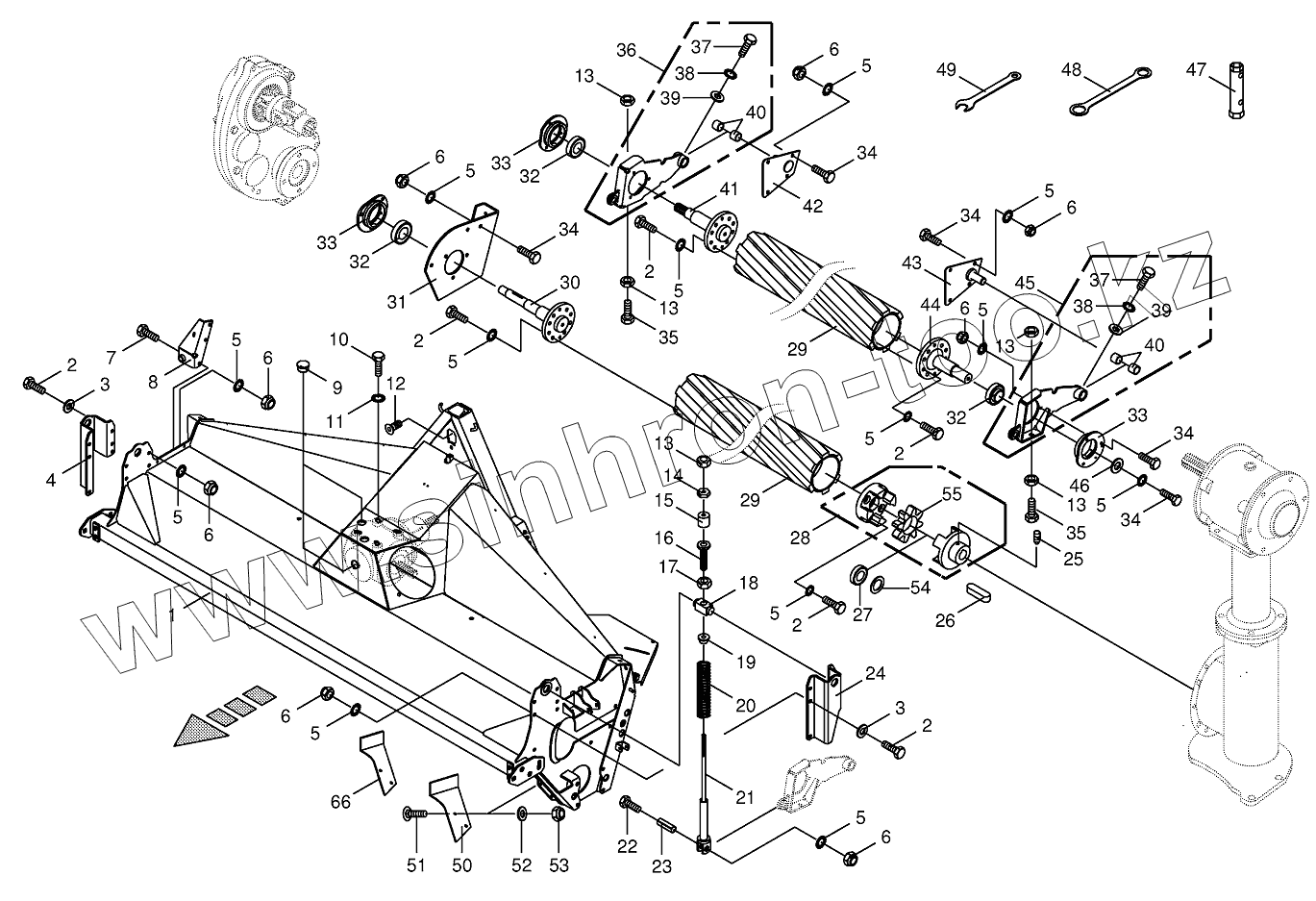

Каталог запасных частей к технике: KRONE BIG-M-400. Roller cond. housing / Roller - front
/37.gif)
1
2
2
2
2
2
2
3
3
4
5
5
5
5
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
7
8
9
10
11
12
13
13
13
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
32
32
33
33
33
34
34
34
34
34
35
35
36
37
37
38
38
39
39
40
40
41
42
43
44
45
46
47
48
49
50
50
51
52
53
54
55
66
66
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 200303890 | Roller conditioner housing-front | |
| 2 | 009006560 | Hex head bolt | |
| 3 | 009105061 | Washer | |
| 4 | 200304170 | Bearing bracket-right | |
| 5 | 009099101 | Detent edged washer | |
| 6 | 009087010 | Locknut | |
| 7 | 009006570 | Hex head bolt | |
| 8 | 002581722 | Support-right | |
| 9 | 009250080 | Sealing plug | |
| 10 | 009006370 | Hex head bolt | |
| 11 | 009099121 | Detent edged washer | |
| 12 | 009040060 | Countersunkscrew | |
| 13 | 009082200 | Hex nut | |
| 14 | 002520840 | Nut | |
| 15 | 002503080 | Buffer | |
| 16 | 002520880 | Threaded piece | |
| 17 | 009080170 | Hex nut | |
| 18 | 002301811 | Spring support | |
| 19 | 002301820 | Retainer scrap | |
| 20 | 200304370 | Pressure spring | |
| 21 | 200304110 | Limit stop bar | |
| 22 | 009014540 | Hex head bolt | |
| 23 | 009125280 | Roll pin | |
| 24 | 200304180 | Bearing bracket-left | |
| 25 | 009057550 | Threaded pin | |
| 26 | 009150390 | Fit-in key | |
| 27 | 900001390 | Radial bearing | |
| 28 | 270011000 | Rotex-clutch | |
| 29 | 002582010 | CRI-Roller | |
| 30 | 200304650 | Drive spigot -for gearbox 20 030 170 0 | |
| 31 | 200302340 | Bearing bracket | |
| 32 | 900000600 | Grooved ball bearing | |
| 33 | 200301590 | Self-aligning bearing housing | |
| 34 | 009006550 | Hex head bolt | |
| 35 | 009006770 | Hex head bolt | |
| 36 | 200304200 | Rocker-right | |
| 37 | 009002722 | Hex head bolt | |
| 38 | 009099091 | Detent edged washer | |
| 39 | 009108030 | Shim ring | |
| 40 | 009349460 | Bearing bush | |
| 41 | 200304660 | Drive spigot | |
| 42 | 002581640 | Rocker bearing-right | |
| 43 | 002581620 | Rocker bearing-left | |
| 44 | 002581893 | Bearing bolt-Standard | |
| 45 | 200304210 | Rocker-left | |
| 46 | 009106431 | Washer | |
| 47 | 002521991 | Key | |
| 48 | 200308530 | Spanner key | |
| 49 | 200308300 | Jaw wrench | |
| 50 | 200126550 | Baffle-left | |
| 50 | 200126560 | Baffle-right | |
| 51 | 009047451 | Coach bolt | |
| 52 | 009104140 | Washer | |
| 53 | 009087580 | Locknut | |
| 54 | 009108651 | Shim ring | |
| 55 | 009402181 | Rotex plastic part | |
| 66 | 200124040 | Baffle-left | |
| 66 | 200124030 | Baffle-right |
