Каталог запасных частей к технике: KRONE BIG-M-400. Radiator guards
/93.gif)
1
1
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
6
7
8
9
9
10
10
10
10
10
11
11
11
11
12
13
13
13
13
13
13
13
13
13
13
14
15
15
16
17
18
19
19
20
20
20
20
21
21
22
23
23
24
25
26
27
28
28
28
28
28
28
29
30
30
31
32
33
34
35
36
37
38
38
39
40
40
41
42
43
44
45
45
45
46
47
47
48
49
50
51
52
53
53
54

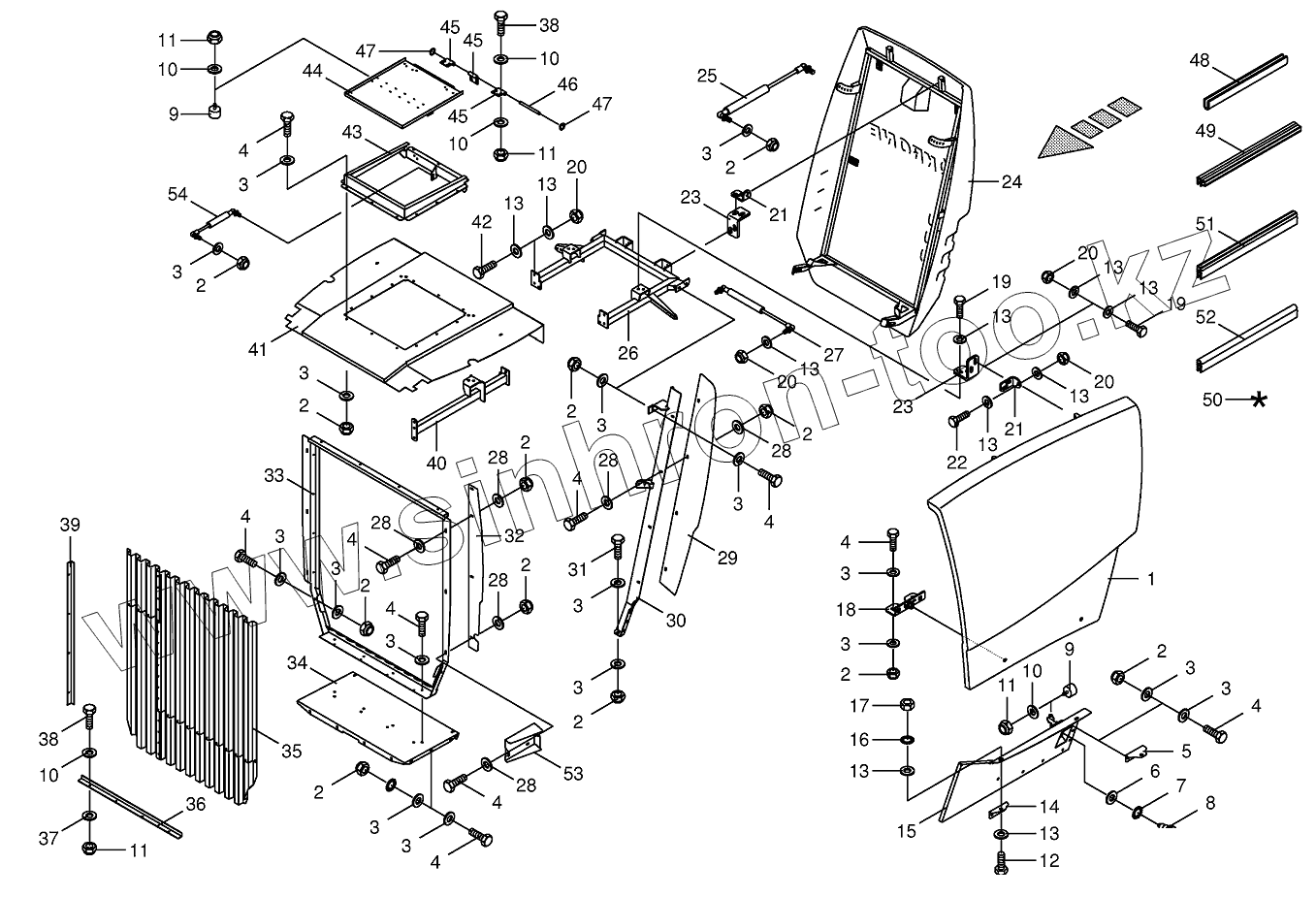

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 200109950 | Radiator guards-right | |
| 1 | 200109960 | Radiator guards-left | |
| 2 | 009087060 | Locknut | |
| 3 | 009104130 | Washer | |
| 4 | 009006140 | Hex head bolt | |
| 5 | 200105210 | Lock reinforcement | |
| 6 | 009105122 | Washer | |
| 7 | 009099131 | Detent edged washer | |
| 8 | 270002051 | Stop bolt | |
| 9 | 009242200 | Rubber pad | |
| 10 | 009103511 | Washer | |
| 11 | 009087041 | Locknut | |
| 12 | 009014380 | Hex head bolt | |
| 13 | 009104140 | Washer | |
| 14 | 200105230 | Lock reinforcement-front | |
| 15 | 200105151 | Side wall-back right | |
| 15 | 200105161 | Side wall-back left | |
| 16 | 009099091 | Detent edged washer | |
| 17 | 009082120 | Hex nut | |
| 18 | 009389841 | Gate lock | |
| 19 | 009006380 | Hex head bolt | |
| 20 | 009087580 | Locknut | |
| 21 | 002330271 | Supporting angle | |
| 22 | 009014350 | Hex head bolt | |
| 23 | 002329061 | Angle | |
| 24 | 200109910 | Back door | |
| 25 | 009400800 | Gas spring | |
| 26 | 200104900 | Roof support-back | |
| 27 | 270021810 | Gas spring | |
| 28 | 009106030 | Washer | |
| 29 | 200104010 | Adjusting plate-back | |
| 30 | 200105301 | Support-left | |
| 30 | 200105351 | Support-right | |
| 31 | 009006170 | Hex head bolt | |
| 32 | 200104020 | Adjusting plate | |
| 33 | 200104130 | Frame | |
| 34 | 200105280 | Cover plate | |
| 35 | 200104150 | Perforated plate | |
| 36 | 200104040 | Tensioning angle-below | |
| 37 | 009104111 | Washer | |
| 38 | 009006070 | Hex head bolt | |
| 39 | 200104050 | Tensioning angle-lateral | |
| 40 | 200105040 | Roof support-left | |
| 40 | 200104750 | Roof support-right | |
| 41 | 200104190 | Radiator roof | |
| 42 | 009006370 | Hex head bolt | |
| 43 | 200110040 | Frame | |
| 44 | 200110090 | Cooler choke | |
| 45 | 002743754 | Hinge | |
| 46 | 200100050 | Pin | |
| 47 | 009115900 | Lock washer | |
| 48 | 009251110 | Edge protection-Id.-no.= 1m | |
| 49 | 009386941 | Rubber profile-Id.-no.= 1m | |
| 50 | 009403750 | Repairing set for plastics- beige | |
| 51 | 009386951 | Rubber profile-Id.-no.= 1m | |
| 52 | 270026630 | Rubber profile-Id.-no.= 1m | |
| 53 | 200121280 | U-plate-left | |
| 53 | 200121290 | U-plate-right | |
| 54 | 002746090 | Gas spring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
