Каталог запасных частей к технике: KRONE BIG-M-400. P.T.O shafts -cpl.

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано 280CV-Q, 320CV-Q, 280CRI-Q (2013) 280CV-Q, 320CV-Q, 280CRI-Q (2013) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) AFL243RS (2013) AM 203CV, AM 243CV, AM 283CV (2018) AM 203CV, AM 243CV, AM 283CV (2018) AM 203CV, AM243CV, AM283CV (2018) AM 203CV, AM243CV, AM283CV (2018) AM 243 (2018) AM 243CV (2018) AM 243CV (2018) AM 243CV, AM283CV (2018) AM 283 (2018) AM 283CV (2018) BiG X 500 (2018) BiG X V8, BiG X V12 (2018) BIG-M-400 (2016) BIG-M-420 (2016) BIG-M-420 (2016) BIG-M-I (2016) BIG-M-I (2016) BIG-M-I (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-X-1000 (2016) BIG-X-1000 (2016) BIG-X-1100 (2016) BIG-X-480 (2016) BIG-X-480 (2017) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-530 (2016) BIG-X-530 (2017) BIG-X-580 (2016) BIG-X-580 (2017) BIG-X-600 (2016) BIG-X-600 (2016) BIG-X-600 (2016) BIG-X-630 (2016) BIG-X-630 (2017) BIG-X-650 (2010) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-700 (2010) BIG-X-700 (2013) BIG-X-700 (2013) BIG-X-700-1 (2013) BIG-X-700-1 (2013) BIG-X-700-1 (2016) BIG-X-700-1 (2016) BIG-X-700-1 (2016) BIG-X-800 (2016) BIG-X-800 (2016) BIG-X-800/1000 (2013) BIG-X-850-1 (2018) BIG-X-850-1/1100-1 (2013) BIG-X-850-1/1100-1 (2013) BIG-X-850/1100 (2013) BIG-X-V8/BIG-X-V12 (2013) BIG-X-V8/BIG-X-V12 (2013) BIG-X-V8/BIG-X-V12 (2013) Easycollect (2018) EasyCut F360M (2018) EasyFlow 300, 380 (2012) EasyFlow 3000, 3800 (2013) EasyFlow 3000, 3800 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EC 27/32 (2013) EC 28/32 (2013) EC 28/32 (2013) EC 28/32 (2013) EC 28/32CV (2013) EC 28/32CV (2013) EC 28/32CV (2013) EC 28/32M (2013) EC 28/32M (2013) EC 28/32P (2013) EC 28/32P (2013) EC 28/32P (2013) EC 28M (2013) EC 32CRI (2013) EC 32CRI (2013) EC 32CRI (2013) EC 32CV (2013) EC 360/400 (2013) EC 360/400 (2013) EC 360/400 (2013) EC 360/400 (2013) EC F280 (2018) EC F280 / F320 (2013) EC F280 M (2013) EC F280/320/360 (2013) EC F320 (2018) EC F320 M (2013) EC F320 M (2013) EC F320CV (2013) EC F320M/F360M (2013) EC F360 (2018) EC R280 (2013) EC R320 (2013) EC R360 (2013) EC R400 (2018) EC-9000 (2008) EC270CV/320CV (2013) EC280/320 (2013) EC280/320 (2013) EC280/320 (2013) EC280CV-Q/320CV-Q (2013) EC280CV/320CV (2013) EC280CV/320CV/280CR (2013) EC280CV/320CV/C280CRI (2013) EC28CV/32CV/32CV-F (2013) EC28CV/C32CV/32CV-F (2013) EC32CV/32CV-F (2013) EColl.6000,7500,6000FP (2013) EColl.6000,7500,9000,6000F (2013) EColl.6000,7500,9000,6000F/FP (2013) EColl.6000,7500,9000,6000F/FP (2013) EColl.6000-7500-9000-6000CL/JD (2013) ECollect 753, 903, 1053 (2013) ECollect753, 903, 1053 (2013) ECollect753, 903, 1053 (2013) ECR280CV/320CV (2012) KW 8.50-8 (2018) KWT 7.70-6X7, KWT 8.50-8, KWT 10.50-8X7 (2018) X-Disc 6200 (2013) X-Disc 6200 (2013)

Схема > Не выбрано Per mower unit front (CV) Cutter bar - SafeCut INSIDE - front -CV Blade fastening - front-CV Blade quick coupler - front-CV Tine conditioner housing/tine conditiner - front Gearbox Transmission part I - front Transmission part II - front Front-guard Swathlaying-front Per mower unit lateral (CV) Cutter bar - SafeCut INSIDE - lateral-CV Blade fastening - lateral-CV Blade quick coupler - lateral-CV Tine conditioner housing kpl.-lateral-CV Tine conditioner housing -lateral Tine conditioner -lateral Tine conditioner Lubricating line-CV Cover for main gear box - lateral Main gearbox and driving shaft-lateral Main gearbox / mower bar - lateral Tine conditioner drive - lateral Guard for mower beam cpl.-left / right Auger trough - lateral Hydraulic auger hood Hydraulic Auger Hood Auger - left and right Auger gear Lubricating line / grease - lateral Chequered plate - front / lateral Per mower unit front (CRI) Per mower unit lateral (CRI) Cutter bar - SafeCut INSIDE - front/lateral-CRI Blade fastening - front / lateral-CRI Blade quick coupler - front / lateral Guide plate-CRI Roller cond. housing / Roller - front Protecting cup CRI-Roller-optional Main gearbox - front -CRI Comer Gearbox - front-CRI Gearbox - front/lateral -CRI Front guard-CRI Swathlaying - front-CRI Lubricating line - front-CRI Accessories - front-CRI Accessories - front-CRI Roller cond. housing / Roller - lateral-CRI Anbauteile roller cond. housing - lateral-CRI Swath doors - lateral CRI-Roller-optional Main gearbox - left-CRI Comer T-Gearbox - right-CRI Comer Gearbox - lateral-CRI Auger trough - lateral-CRI 732375 - 770000 Auger trough - lateral-CRI 770001 - 790000 Hydraulic auger hood-CRI Hydraulic auger hood-CRI Hydraulic Auger Hood-CRI Auger - left and right -CRI 732375 - 770000 Auger - left and right -CRI 770001 - 790000 Auger gear - right and left-CRI Actuation console - right-CRI Accessories - Geabox-CRI Accessories - Geabox-CRI Guard for mower beam - right-CRI Guard for mower beam - left-CRI Guard -right-CRI Guard -left-CRI Lubricating line / grease - lateral-CRI High-cut skid / Wear skid Air level-front / lateral 732375 - 790000 Front wing cpl. Cantilever - left/right Control lever -left Control lever -right Mounting parts number of mover units Belt gurd located - left / right Portal cpl. Spring compensation - Tension spring Separated spring compensation - Tension spring Front auxiliary pto.stub Auxiliary gearbox Tensioning device on auxiliary gearbox Frame / axle Steering axle installed Cab access / platform / stowage box Rear view mirror / Work light Front guard / Lighting Valve guard Engine guards Radiator guards Lighting bracket / trailer hitch Ladder -back Diesel fuel tank cpl. Diesel engine / Clutch Silencer / Charge air tubes Self-cleaning pre-separator Fan drive Condenser for air conditioner - cpl. 732375 - 770000 Condenser for air conditioner - cpl. 770001 - 790000 Hydraulic tank Hydr.ground drive - var.displ. pump Hydr.ground drive / Cam lobe mot.- front Hydr.ground drive / Cam lobe mot.- back Hydr.ground drive/pressure oil line - front Hydr.ground drive/pressure oil line - rear Working hydraulics - Gear pump 2x Working hydr. - hydr.line (steering) Working hydraulics - Valve block Working hydraulics - Mounting parts Hydraulics - front mower / hillside Hydraulics Hydraulics - control valve Hydraulics - cutting height Hydraulics Hydraulic brakes Parking brake Tyres Mudguard Battery Cab - mounting parts / electric parts Cab - control panel (roof) / circuit board Cab - glazing Glass wiper Cab - Sound deadening Cab - Cab lining, aerial Rear blind / lateral blind Steering columm Wear parts - driver's seat Control box mounting parts -top Control box / controls eletronic Air conditioning Evaporator Pedal - levelling mechanism Automatic pilot Steering axle - automatic pilot-optional Hydraulics - automatic pilot-optional Wiring harness - automatic pilot-optional Wiring harness - control box Wiring harness - panel Wiring Harness - front Wiring Harness - lateral left Wiring Harness - lateral right Wiring Harness - valve block Wiring loom - hydraulic pumps Wiring Harness - engine Wiring Harness - lighting Wiring Harness - spring compensation Wiring Harness - cutting height Several wiring looms Central lubrication Spare parts case for central lubrication -Vogel Fire extinguisher P.T.O shafts -cpl. P.T.O shafts-ByPy P.T.O shafts-Walterscheid 732375 - 790000 P.T.O shafts-Walterscheid 732375 - 790000 P.T.O shaftss-ByPy Main Pto shaft-ByPy Double universal joint-ByPy Double universal joint-ByPy Double universal joint-ByPy Warning signs General information labels Label - Circuit board

1

2

3

4

4

5

5

6

6

7

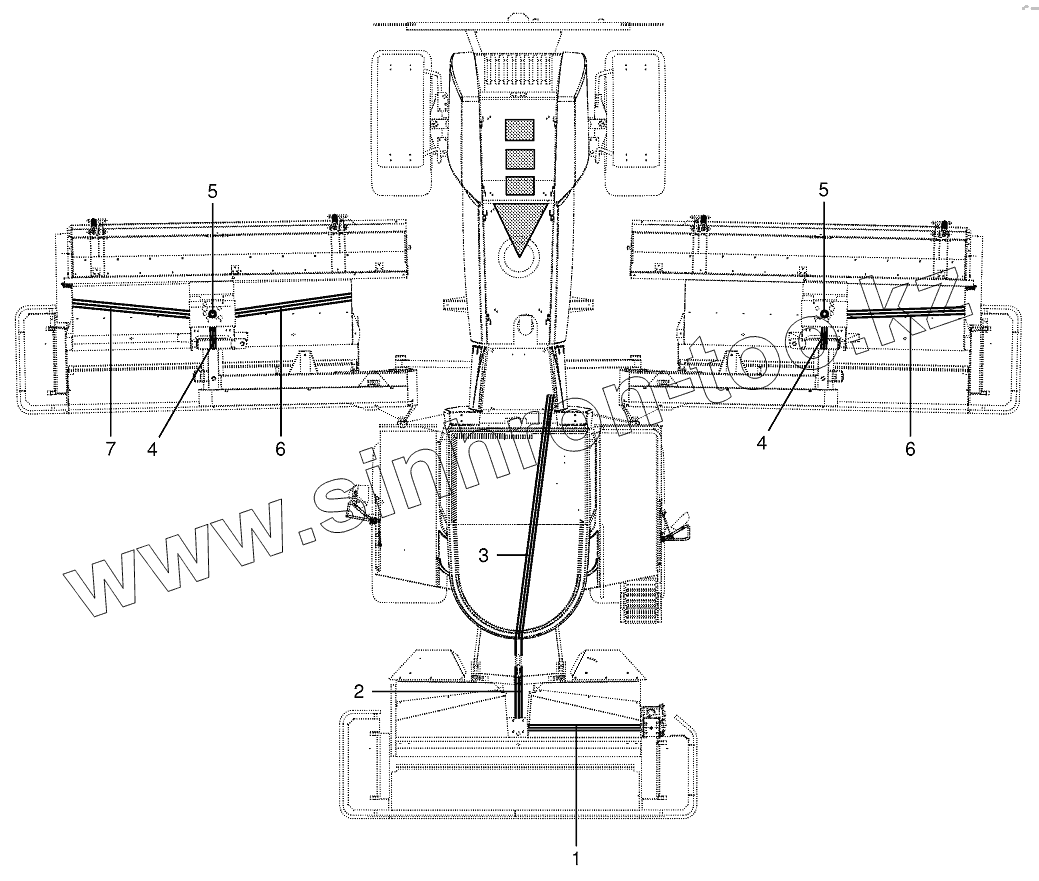

Позиция на иллюстрации	Заводской номер детали		Название детали
009491582	009491582		Pto drive shaft
270010500	270010500		Double universal joint
1	009550090		Pto drive shaft
2	009559202		Pto drive shaft
3	270010980		Pto drive shaft
4	009559280		Double universal joint
5	009559140		Double universal joint
6	009550090		Pto drive shaft
7	009550090		Pto drive shaft

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
