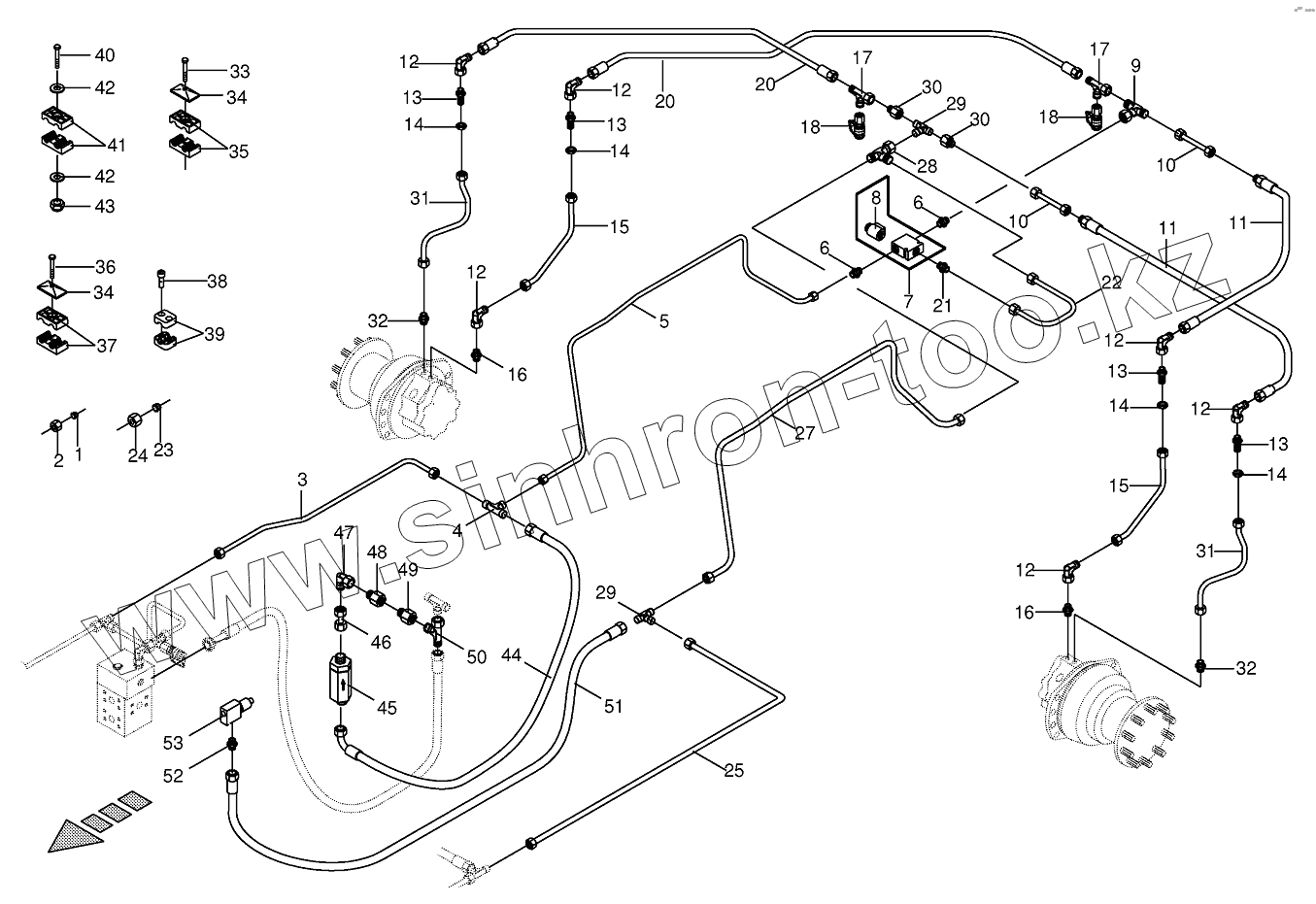

Каталог запасных частей к технике: KRONE BIG-M-400. Hydr.ground drive/pressure oil line - rear

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
6
7
8
9
10
10
11
11
12
12
12
12
12
12
13
13
13
13
14
14
14
14
15
15
16
16
17
17
18
18
20
20
21
22
23
24
25
27
28
29
29
30
30
31
31
32
32
33
33
34
34
35
36
37
38
39
39
40
41
42
42
43
44
45
46
47
48
49
50
51
52
53
Позиция на иллюстрации Заводской номер детали Название детали
009190700 009190700 Solenoid coil
1 009210461 Cutting ring
2 009212060 Nozzle disc cap
3 002332440 Hydraulic line-incl. nozzle disc cap, cutting ring
4 009210711 T connector
5 002335880 Hydraulic line-incl. nozzle disc cap, cutting ring
6 009199181 Male connector
7 009190340 3/2-Diverter vave bloc
8 009190280 3/2-Directional-control valve
9 009210771 T-connector
10 002332480 Hydraulic line-incl. nozzle disc cap, cutting ring
11 009210281 High pressure hose line
12 009210671 Angle lug
13 009210871 Straight 2-way connector
14 009085242 Hex nut-low form
15 002307290 Hydraulic line-incl. nozzle disc cap, cutting ring
16 009210602 Male connector
17 009210791 Adjustable L connection
18 009208680 Connector f.mini-test equipm.
20 009210161 High pressure hose line
21 009197611 Male connector
22 002332400 Hydraulic line-incl. nozzle disc cap, cutting ring
23 009210471 Cutting ring
24 009210430 Nozzle disc cap
25 002332410 Hydraulic line-incl. nozzle disc cap, cutting ring
27 002335870 Hydraulic line-incl. nozzle disc cap, cutting ring
28 009210750 Adjustable L connection
29 009210731 T-connector
30 009211601 Reducer fitting
31 002307280 Hydraulic line-incl. nozzle disc cap, cutting ring
32 009209011 Male connector
33 009014230 Hex head bolt
33 009016131 Hex head bolt
34 009251350 Cover plate
35 009251050 Tube clamp-2 halves
36 009010481 Hex head bolt
37 009251460 Tube clamp-2 halves
38 009030480 Allen screw
39 009251011 Tube clamp-2 halves
39 009251480 Tube clamp-2 halves
40 009014230 Hex head bolt
41 009251550 Tube clamp-2 halves
42 009104130 Washer
43 009087060 Locknut
44 009209720 High pressure hose line
45 009196651 Non-return valve
46 009193121 Double nipple
47 009208250 Lug
48 009196620 Reducer fitting
49 900004360 Reducer fitting
50 009208310 Adjustable L connection
51 009210352 High pressure hose line
52 009197611 Male connector
53 270025390 Pressure control valve
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
