  5. Auger - left and right

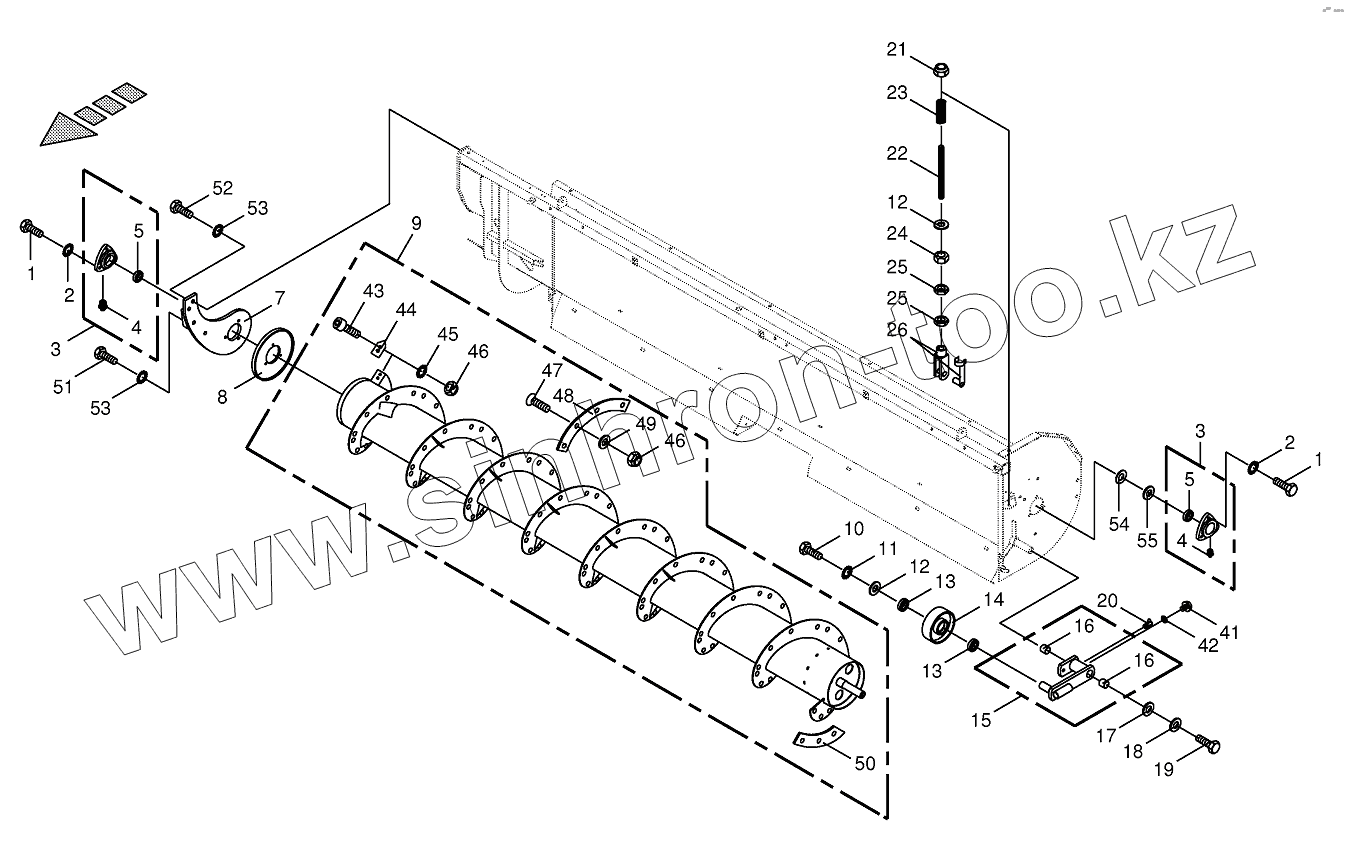

Каталог запасных частей к технике: KRONE BIG-M-400. Auger - left and right

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
1
2
2
3
3
4
4
5
5
7
7
7
7
8
9
9
10
11
12
12
13
13
14
15
16
16
17
18
19
20
21
22
23
24
25
25
26
41
42
43
44
45
46
46
47
48
48
49
50
50
51
51
52
52
53
53
53
54
54
55
Позиция на иллюстрации Заводской номер детали Название детали
1 009006370 Hex head bolt
1 009006360 Hex head bolt
1 009006380 Hex head bolt
2 009099091 Detent edged washer
3 009341300 Flange bearing
4 009191050 Grease niple
5 009346170 Grooved ball bearing
6 009087580 Locknut
7 200103250 Bearing support-left, screw M 12
7 200123460 Bearing support-left
7 200103260 Bearing support-right, screw M 12
7 200123470 Bearing support-right
8 002322852 Stripper
9 200102161 Auger-right
9 200102151 Auger-left
10 009006530 Hex head bolt
11 009099101 Detent edged washer
12 009106431 Washer
13 009305060 Grooved ball bearing
14 002299422 Jockey pulley
15 002313050 Belt tensioner
16 009349200 Bearing bush
17 009107021 Supporting disc
18 009106431 Washer
19 009006530 Hex head bolt
20 009191060 Grease niple
21 009087010 Locknut
22 002314441 Threaded bolt
23 00930231 Pressure spring
24 009082150 Hex nut
25 009085151 Hex nut-low form
26 009271011 Clevis cpl.
41 009060031 Screw plug
42 009377080 Gasket ring
43 009030771 Allen screw
44 200101430 Stripper
45 009099081 Detent edged washer
46 009087060 Locknut
47 009040241 Countersunkscrew
48 200100750 Wearing plate-right
48 200100740 Wearing plate-left
49 009106030 Washer
50 200102210 Wearing plate-left
50 200102170 Wearing plate-right
51 009006570 Hex head bolt
51 009006740 Hex head bolt
52 009011220 He head bolt
52 009003431 Hex head bolt
53 009099101 Detent edged washer
53 009099121 Detent edged washer
54 009111330 Shim ring
54 009111340 Shim ring
55 009107271 Supporting disc
