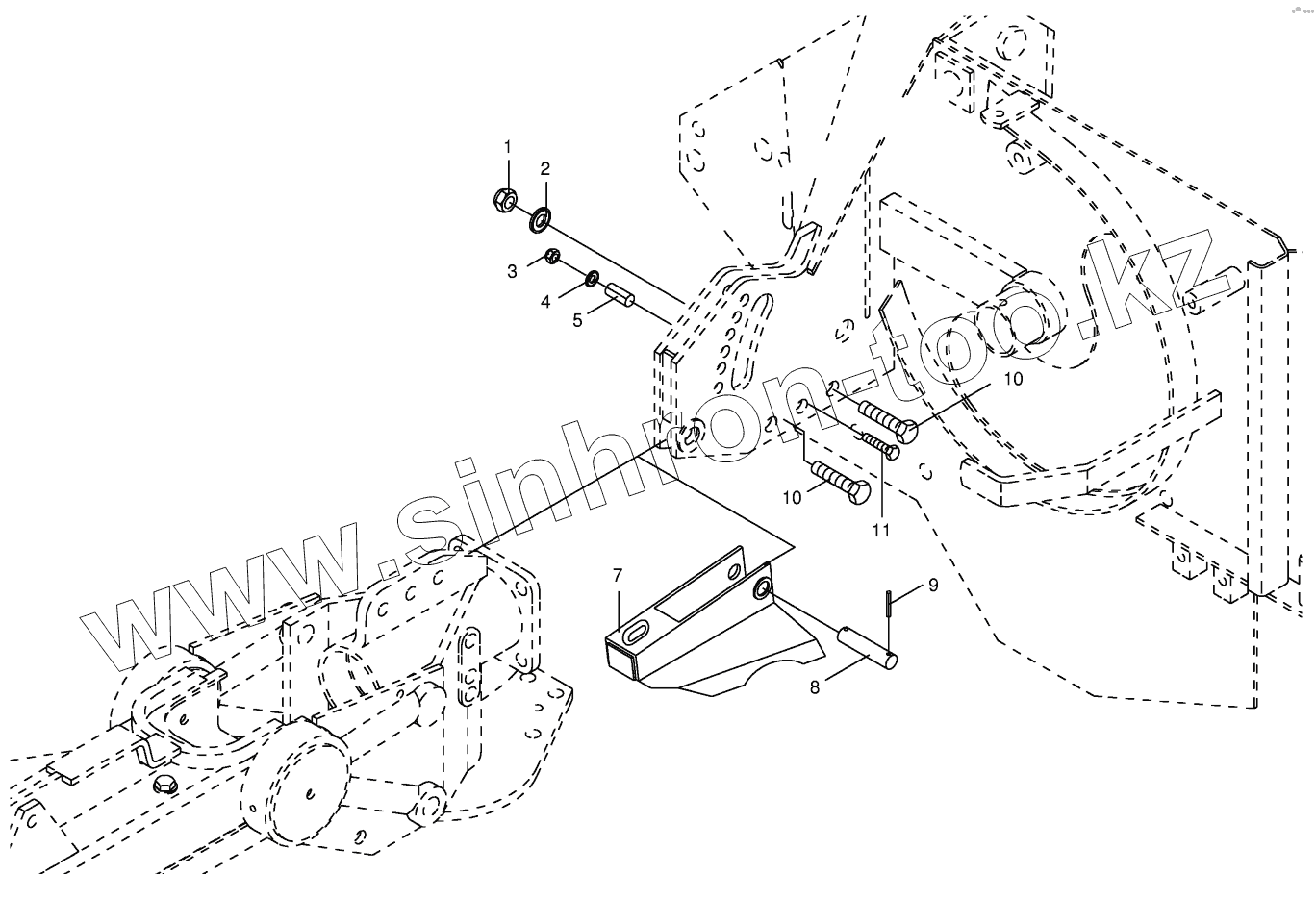

Каталог запасных частей к технике: KRONE AM 203CV, AM 243CV, AM 283CV. Beam/Conditioner installed

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано 280CV-Q, 320CV-Q, 280CRI-Q (2013) 280CV-Q, 320CV-Q, 280CRI-Q (2013) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) AFL243RS (2013) AM 203CV, AM 243CV, AM 283CV (2018) AM 203CV, AM 243CV, AM 283CV (2018) AM 203CV, AM243CV, AM283CV (2018) AM 203CV, AM243CV, AM283CV (2018) AM 243 (2018) AM 243CV (2018) AM 243CV (2018) AM 243CV, AM283CV (2018) AM 283 (2018) AM 283CV (2018) BiG X 500 (2018) BiG X V8, BiG X V12 (2018) BIG-M-400 (2016) BIG-M-420 (2016) BIG-M-420 (2016) BIG-M-I (2016) BIG-M-I (2016) BIG-M-I (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-X-1000 (2016) BIG-X-1000 (2016) BIG-X-1100 (2016) BIG-X-480 (2016) BIG-X-480 (2017) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-530 (2016) BIG-X-530 (2017) BIG-X-580 (2016) BIG-X-580 (2017) BIG-X-600 (2016) BIG-X-600 (2016) BIG-X-600 (2016) BIG-X-630 (2016) BIG-X-630 (2017) BIG-X-650 (2010) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-700 (2010) BIG-X-700 (2013) BIG-X-700 (2013) BIG-X-700-1 (2013) BIG-X-700-1 (2013) BIG-X-700-1 (2016) BIG-X-700-1 (2016) BIG-X-700-1 (2016) BIG-X-800 (2016) BIG-X-800 (2016) BIG-X-800/1000 (2013) BIG-X-850-1 (2018) BIG-X-850-1/1100-1 (2013) BIG-X-850-1/1100-1 (2013) BIG-X-850/1100 (2013) BIG-X-V8/BIG-X-V12 (2013) BIG-X-V8/BIG-X-V12 (2013) BIG-X-V8/BIG-X-V12 (2013) Easycollect (2018) EasyCut F360M (2018) EasyFlow 300, 380 (2012) EasyFlow 3000, 3800 (2013) EasyFlow 3000, 3800 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EC 27/32 (2013) EC 28/32 (2013) EC 28/32 (2013) EC 28/32 (2013) EC 28/32CV (2013) EC 28/32CV (2013) EC 28/32CV (2013) EC 28/32M (2013) EC 28/32M (2013) EC 28/32P (2013) EC 28/32P (2013) EC 28/32P (2013) EC 28M (2013) EC 32CRI (2013) EC 32CRI (2013) EC 32CRI (2013) EC 32CV (2013) EC 360/400 (2013) EC 360/400 (2013) EC 360/400 (2013) EC 360/400 (2013) EC F280 (2018) EC F280 / F320 (2013) EC F280 M (2013) EC F280/320/360 (2013) EC F320 (2018) EC F320 M (2013) EC F320 M (2013) EC F320CV (2013) EC F320M/F360M (2013) EC F360 (2018) EC R280 (2013) EC R320 (2013) EC R360 (2013) EC R400 (2018) EC-9000 (2008) EC270CV/320CV (2013) EC280/320 (2013) EC280/320 (2013) EC280/320 (2013) EC280CV-Q/320CV-Q (2013) EC280CV/320CV (2013) EC280CV/320CV/280CR (2013) EC280CV/320CV/C280CRI (2013) EC28CV/32CV/32CV-F (2013) EC28CV/C32CV/32CV-F (2013) EC32CV/32CV-F (2013) EColl.6000,7500,6000FP (2013) EColl.6000,7500,9000,6000F (2013) EColl.6000,7500,9000,6000F/FP (2013) EColl.6000,7500,9000,6000F/FP (2013) EColl.6000-7500-9000-6000CL/JD (2013) ECollect 753, 903, 1053 (2013) ECollect753, 903, 1053 (2013) ECollect753, 903, 1053 (2013) ECR280CV/320CV (2012) KW 8.50-8 (2018) KWT 7.70-6X7, KWT 8.50-8, KWT 10.50-8X7 (2018) X-Disc 6200 (2013) X-Disc 6200 (2013)

Схема > Не выбрано Cutter bar with bearings Cutter bar with blade fastening Cutter bar with quick coupler Main gearbox Headstock Gearbox and driving shaft Gearbox and driven shaft Cover for gear box Outer gearbox 1000 U/min Beam Beam with break away Spring compensation Hydraulics Conditioner with additional parts 380000 - 384399 Conditioner with additional parts 384400 - 403699 Beam/Conditioner installed Conditioner drum with additional parts 380000 - 384399 Conditioner drum with additional parts 384400 - 403699 Locking for transport 380000 - 384399 Locking for transport 384400 - 403699 Swath hood Wide swath hood Guard Guard P.T.O shafts W 2400-SD25-910-F5/1R P.T.O shafts Walterscheid Double universal joint DG 23000 Guard

1

2

3

4

5

7

8

9

10

10

11

Позиция на иллюстрации	Заводской номер детали		Название детали
1	009087161		Locknut
2	009106210		Washer
3	009087580		Locknut
4	009104140		Washer
5	009125260		Roll pin
7	001395200		Ratchet Lift
8	001434821		Pin
9	009126152		Roll pin
10	009011321		Hex head bolt
11	009014330		Hex head bolt

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
