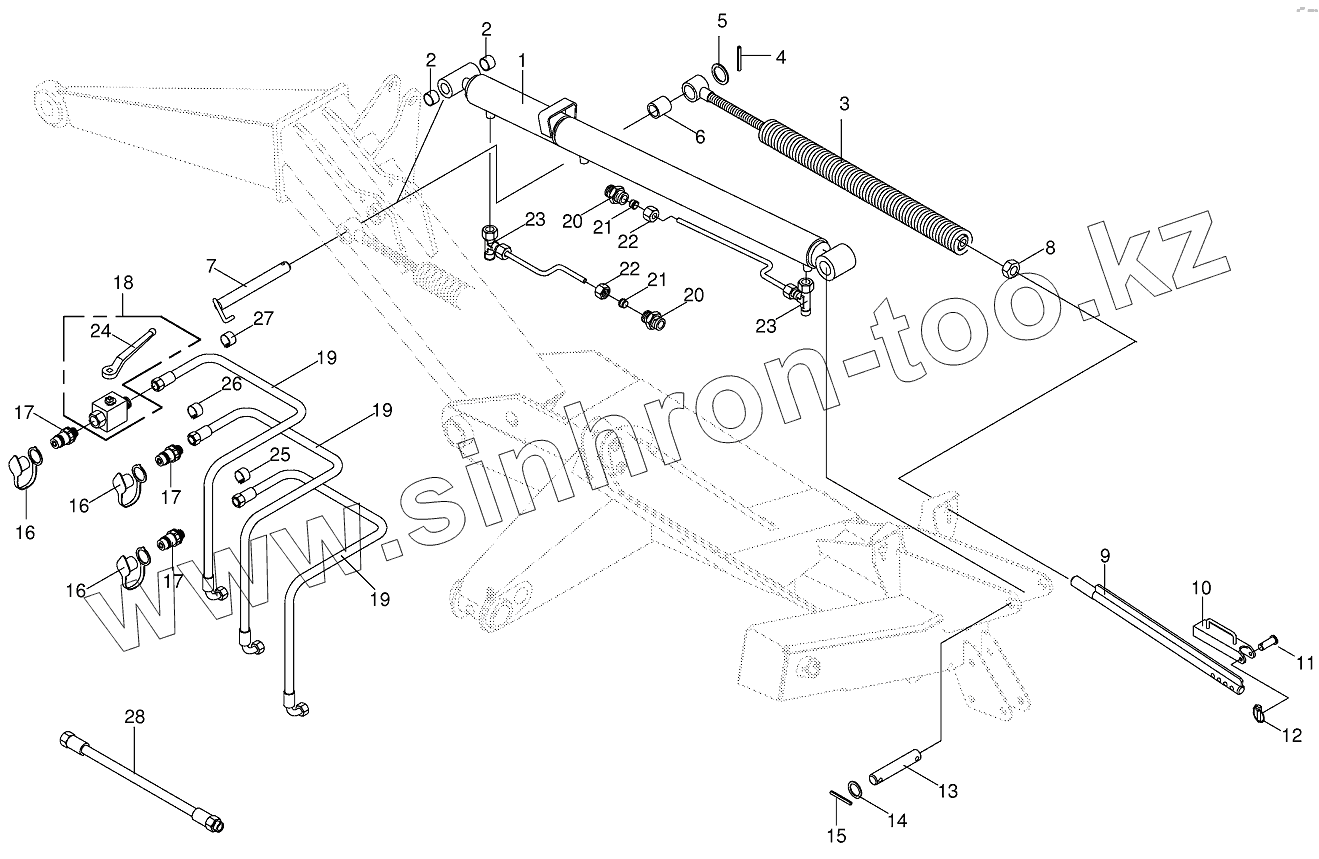

Каталог запасных частей к технике: KRONE 280CV-Q, 320CV-Q, 280CRI-Q. Spring compensation/Hydraulics
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
16
16
17
17
17
18
19
19
19
20
20
21
21
22
22
23
23
24
25
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 009188280 | 009188280 | Sealing set | |
| 009193760 | 009193760 | Collar nut | |
| 1 | 009185120 | Hydraulic cylinder-incl. bushing | |
| 2 | 009349200 | Bearing bush | |
| 3 | 002533822 | Tension spring | |
| 4 | 009127162 | Roll pin | |
| 5 | 009105152 | Washer | |
| 6 | 009349010 | Bearing bush | |
| 7 | 002543420 | Pin | |
| 8 | 009080311 | Hex nut | |
| 9 | 002549300 | Threaded rod | |
| 10 | 002534431 | Clamping bracket | |
| 11 | 009160310 | Pin with small head | |
| 12 | 009170041 | Linch pin | |
| 13 | 001547441 | Pin | |
| 14 | 009108841 | Shim ring | |
| 15 | 009126721 | Roll pin | |
| 16 | 009212651 | Dust cap-yellow | |
| 16 | 009211711 | Dust cap-red | |
| 17 | 009211450 | Connector plug | |
| 18 | 009196030 | Ball cock | |
| 19 | 009209890 | High pressure hose line | |
| 20 | 009210541 | Connector | |
| 21 | 009210461 | Cutting ring | |
| 22 | 009212060 | Nozzle disc cap | |
| 23 | 009212340 | Adjustable restrictor | |
| 24 | 009196640 | Hand lever-incl. screw, washer | |
| 25 | 270025410 | Hose marking 1- red | |
| 26 | 270025500 | Hose marking 2- blue | |
| 27 | 270025420 | Hose marking 2- red | |
| 28 | 270114570 | Hyd. hose 2 SC 8x300 DKOL-optionalCEL |
