Каталог запасных частей к технике: KRONE 280CV-Q, 320CV-Q, 280CRI-Q. Guard cpl.
1
1
1
2
2
2
2
2
2
3
4
5
6
6
7
8
8
9
9
11
12
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
23
24
24
24
25
26
31
33
34
35
36
40
41
42
43
44
45
46
47
48
49
50
51

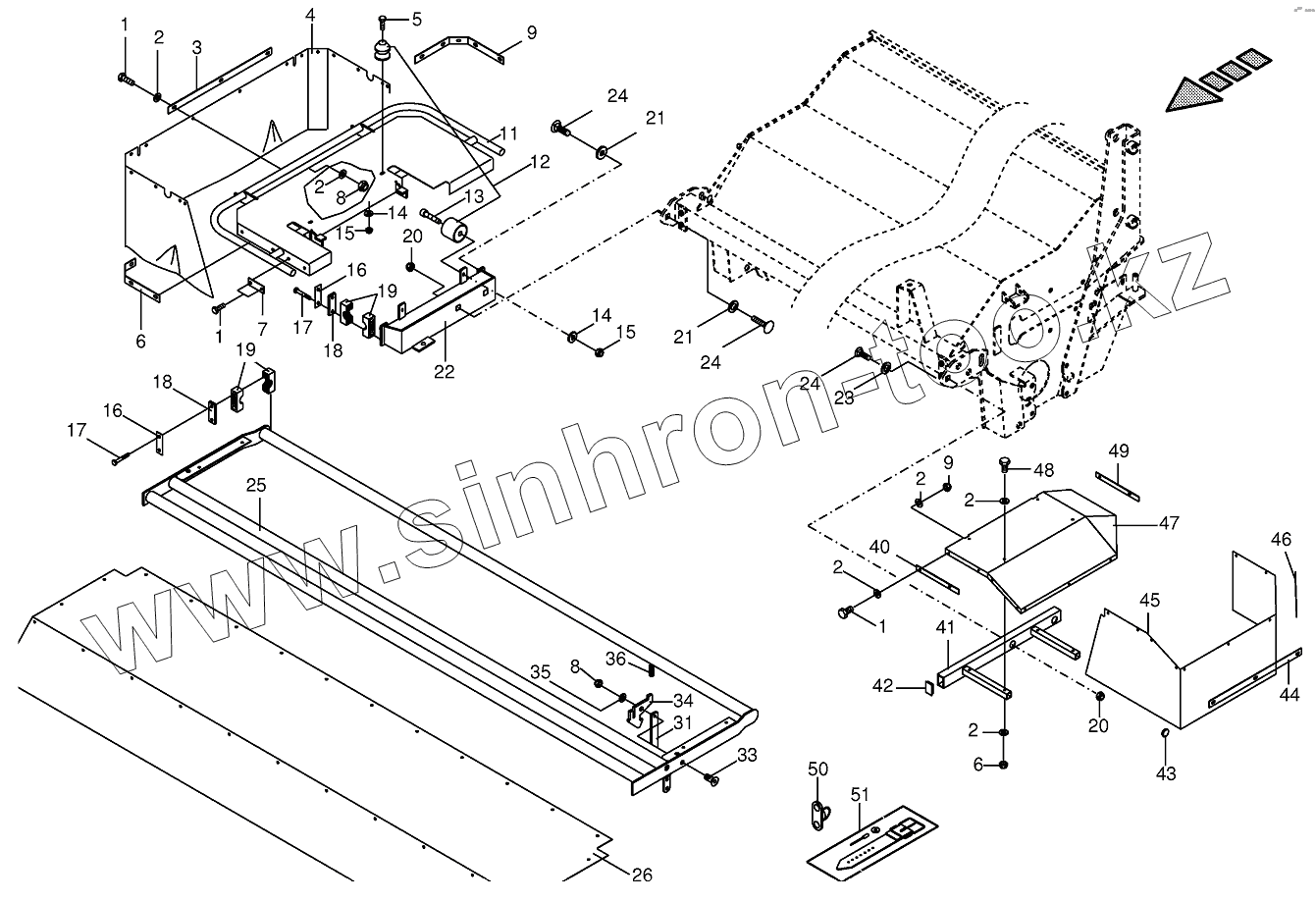

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 900001910 | Hex head bolt-special | |
| 2 | 900005850 | Washer | |
| 3 | 002581941 | Clamping strap | |
| 4 | 002582183 | Protecting skirt | |
| 5 | 009010281 | Hex head bolt | |
| 6 | 002553312 | Clamping strap | |
| 7 | 200316100 | Clamping strap | |
| 8 | 900001920 | Locknut-special | |
| 9 | 002582171 | Clamping strap | |
| 11 | 002582141 | Guard-right | |
| 12 | 002508311 | Clamp and buffer | |
| 13 | 009030451 | Allen screw | |
| 14 | 009103511 | Washer | |
| 15 | 009087041 | Locknut | |
| 16 | 002508510 | Locking plate | |
| 17 | 009014350 | Hex head bolt | |
| 18 | 009251300 | Cover plate | |
| 19 | 009251041 | Tube clamp-2 halves | |
| 20 | 009087190 | Locknut | |
| 21 | 009103620 | Washer | |
| 22 | 002581781 | Guard console | |
| 23 | 009103031 | Washer | |
| 24 | 009047080 | Coach bolt | |
| 25 | 002536880 | Protecting frame | |
| 26 | 002536652 | Protecting skirt | |
| 31 | 002507452 | Support | |
| 33 | 009040270 | Countersunkscrew | |
| 34 | 002563542 | Ratchet | |
| 35 | 900005880 | Washer | |
| 36 | 002749490 | Pressure spring | |
| 40 | 002536721 | Clamping strap | |
| 41 | 002580881 | Guard support | |
| 42 | 009250310 | Square plug | |
| 43 | 009250170 | Sealing plug | |
| 44 | 200316080 | Clamping strap | |
| 45 | 002580973 | Protecting skirt-left | |
| 46 | 002536711 | Clamping strap | |
| 47 | 002580901 | Guard plate-left | |
| 48 | 009014220 | Hex head bolt | |
| 49 | 002554412 | Clamping strap | |
| 50 | 270050780 | Screw lock with fastening material | |
| 51 | 270050790 | Belt |
