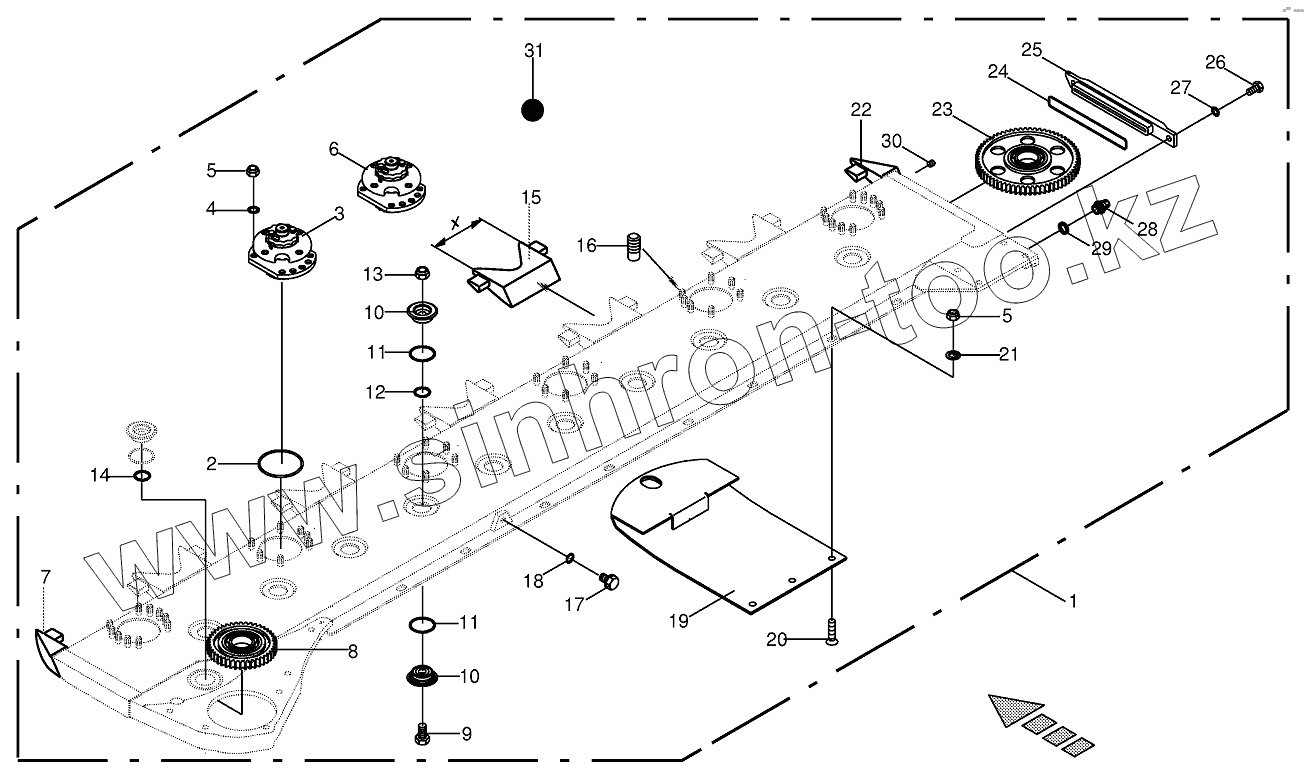

Каталог запасных частей к технике: KRONE 280CV-Q, 320CV-Q, 280CRI-Q. Cutter bar - SafeCut INSIDE
1
1
2
3
3
4
5
5
6
6
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 200311410 | Cutter bar-cpl. | |
| 1 | 200315550 | Cutter bar-cpl. | |
| 2 | 009375760 | O-ring | |
| 3 | 200311250 | Bearing housing-right hand direction of rotation | |
| 3 | 200311260 | Bearing housing-left hand direction of rotation | |
| 4 | 900001230 | Detent edged washer | |
| 5 | 009087010 | Locknut | |
| 6 | 200311280 | Bearing housing-right hand direction of rotation | |
| 6 | 200311290 | Bearing housing-left hand direction of rotation | |
| 7 | 002530153 | Sheet edge-left | |
| 8 | 002530330 | Spur gear | |
| 9 | 009003351 | Hex head bolt | |
| 10 | 002530201 | Clamping piece | |
| 11 | 009375790 | O-ring | |
| 12 | 900001090 | O-ring | |
| 13 | 009096110 | Self-locking nut | |
| 14 | 009375780 | O-ring | |
| 15 | 002535470 | Sheet edge | |
| 16 | 009064040 | Weld. pin | |
| 17 | 009060071 | Screw plug | |
| 18 | 009377210 | Gasket ring | |
| 19 | 002534801 | Skid | |
| 20 | 009040622 | Countersunkscrew | |
| 20 | 009040711 | Countersunkscrew | |
| 21 | 009099101 | Detent edged washer | |
| 22 | 002530163 | Sheet edge-right | |
| 23 | 002530300 | Spur gear | |
| 24 | 009375680 | O-ring | |
| 25 | 002534214 | Cover | |
| 26 | 009006340 | Hex head bolt | |
| 27 | 009099091 | Detent edged washer | |
| 28 | 009198111 | Breather | |
| 29 | 009377270 | Gasket ring | |
| 30 | 009060310 | Screw plug | |
| 31 | 009261010 | Oil-Id.-no.=1ltr |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
