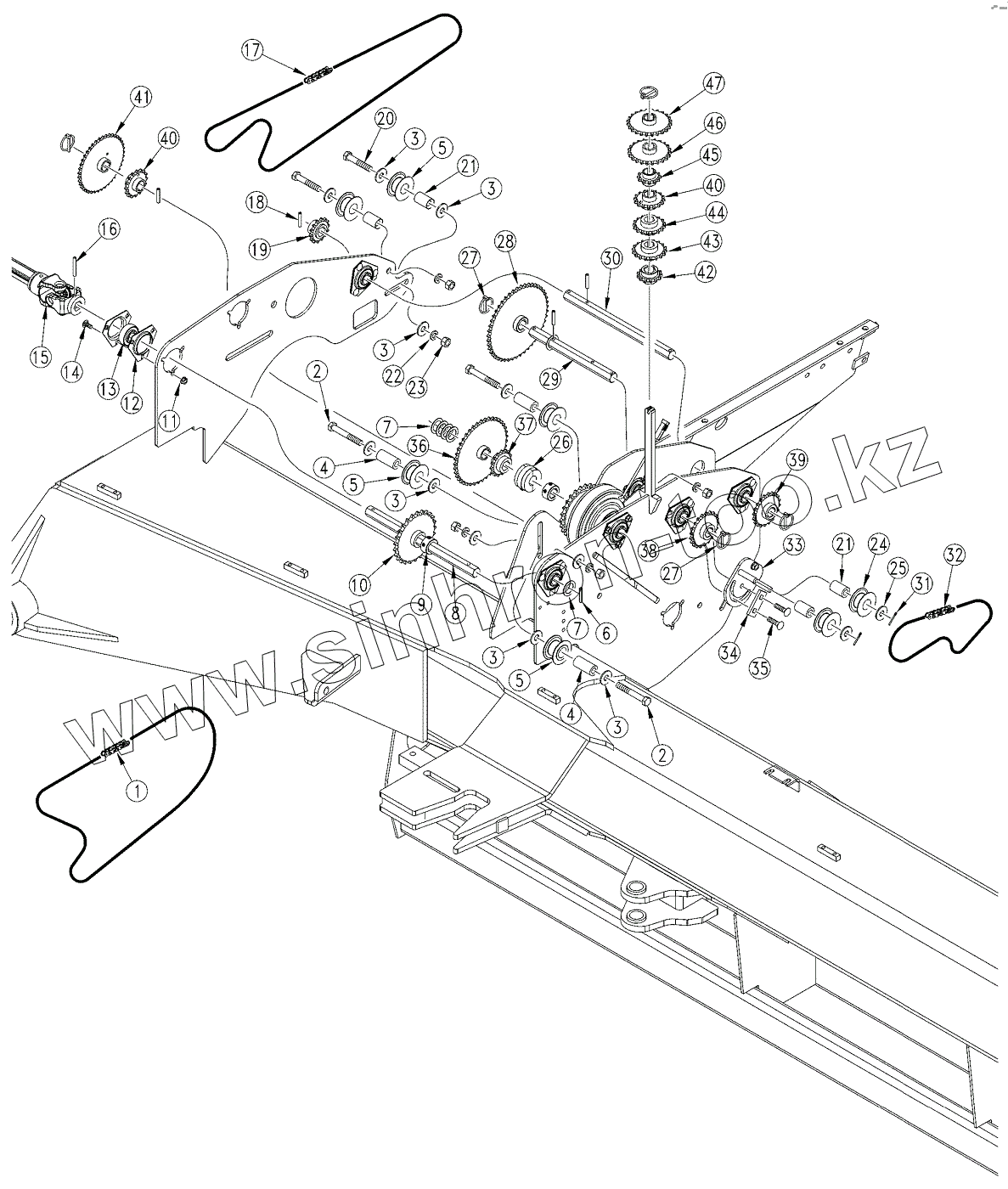

Каталог запасных частей к технике: Great Plains 3S-4010HD. RH & LH Fertilizer Drive
1
2
2
3
3
3
3
3
3
4
4
5
5
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
40
41
42
43
44
45
46
47
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 136-227D | CHAIN RL #40 86 PITCHES | |
| 2 | 802-041C | HHCS | |
| 3 | 804-113C | WASHER FLAT | |
| 4 | 120-306D | TUBE RND 1 OD X 7/32W X 2.13 | |
| 5 | 817-456C | IDLER SPOOL #50 2.38X1.01X.31 | |
| 6 | 805-180C | PIN ROLL | |
| 7 | 804-061C | WASHER MACH 1.50 X 1.00 X 18GA | |
| 8 | 296-099D | 3N40HD WING DRIVE POWER SHAFT | |
| 9 | 402-025S | LOCK COLLAR, 7/8 HEX W/ SET SC | |
| 10 | 808-309C | SPKT 50C25 X 7/8 HEX BORE | |
| 11 | 803-117C | NUT WELD 1/4-20 X 1/2 X 3/16SS | |
| 12 | 822-175C | FLANGETTE 52 3-BOLT PLT | |
| 13 | 822-119C | BRG | |
| 14 | 802-092C | RHSNB | |
| 15 | 826-501C | DRIVESHAFT YP PLANTER | |
| 16 | 805-146C | PIN ROLL 1/4 X 2 LG PL | |
| 17 | 136-121D | CHAIN RL #40 116 PITCHES | |
| 18 | 805-208C | PIN, ROLL 1/4 X 1 1/4 LONG | |
| 19 | 808-260C | SPKT | |
| 20 | 802-226C | HHCS 1/2-13X2 3/4 GR5 | |
| 21 | 120-305D | TUBE RND 1 OD X 7/32W X 1.56 | |
| 22 | 804-015C | WASHER LOCK SPRING | |
| 23 | 803-020C | NUT HEX | |
| 24 | 817-406C | IDLER 1 PC 2.38X1.01X1.062 | |
| 25 | 804-017C | WASHER FLAT | |
| 26 | 120-337S | SPLIT SPACER 1 ID X 1.25 THICK | |
| 27 | 805-240C | PIN LINCH | |
| 28 | 195-172H | SPKT 40C60 X 7/8 HEX BORE | |
| 29 | 296-023D | FERT TRANSMISSION FRONT SHAFT | |
| 30 | 296-024D | FERT TRANSMISSION REAR SHAFT | |
| 31 | 805-064C | PIN COTTER 7/64 X 1 LONG | |
| 32 | 136-093D | CHAIN RL #40 60 PITCHES | |
| 33 | 402-126H | OFFSET DOUBLE IDLER WELDMENT | |
| 34 | 402-242D | IDLER BOLT PLATE | |
| 35 | 802-453C | RHSNB 3/8-16X1 1/2 GR5 | |
| 36 | 808-224C | SPKT 40C41 X 7/8 HEX BORE | |
| 37 | 808-147C | SPKT 40C15 X 7/8 HEX BORE | |
| 38 | 808-222C | SPKT 40C21 X 7/8 HEX BORE | |
| 39 | 808-276C | SPKT 40C20 X 7/8 HEX BORE | |
| 40 | 808-338C | SPKT 40C16 X 7/8 HEX BORE | |
| 41 | 808-262C | SPKT 40C47 X 7/8 HEX BORE | |
| 42 | 407-150H | SPKT 40C13 X 7/8 HEX BORE | |
| 43 | 808-249C | SPKT 40C18 X 7/8 HEX BORE | |
| 44 | 808-148C | SPKT 40C17 X 7/8 HEX BORE | |
| 45 | 808-219C | SPKT 40C12 X 7/8 HEX BORE | |
| 46 | 808-150C | SPKT 40C23 X 7/8 HEX BORE | |
| 47 | 808-151C | SPKT 40C24 X 7/8 HEX BORE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
